Home >> Chevrolet >> 2013 >> Volt L4-1.4L Elect >> Repair and Diagnosis >> Diagrams >> Connector Views >> Compressor HVAC >> A/C Compressor X2

A/C Compressor X2

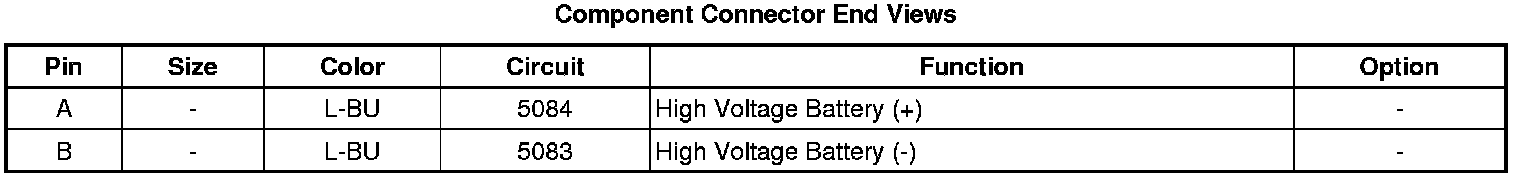

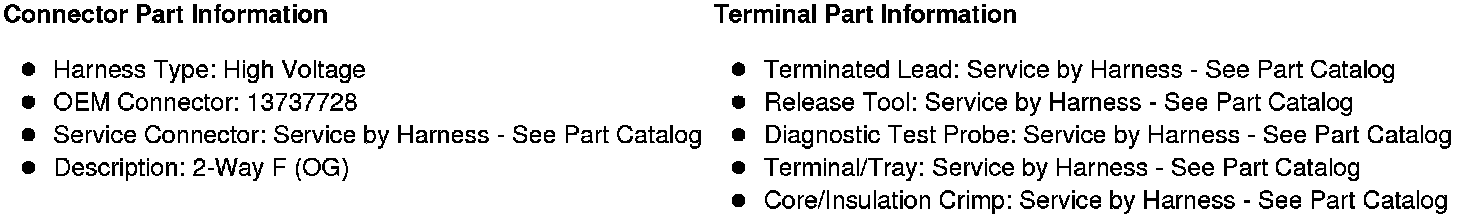

Component Connector End Views

G1 A/C Compressor X2
