Door Ajar Indicator Malfunction
Door Ajar Indicator Malfunction
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category

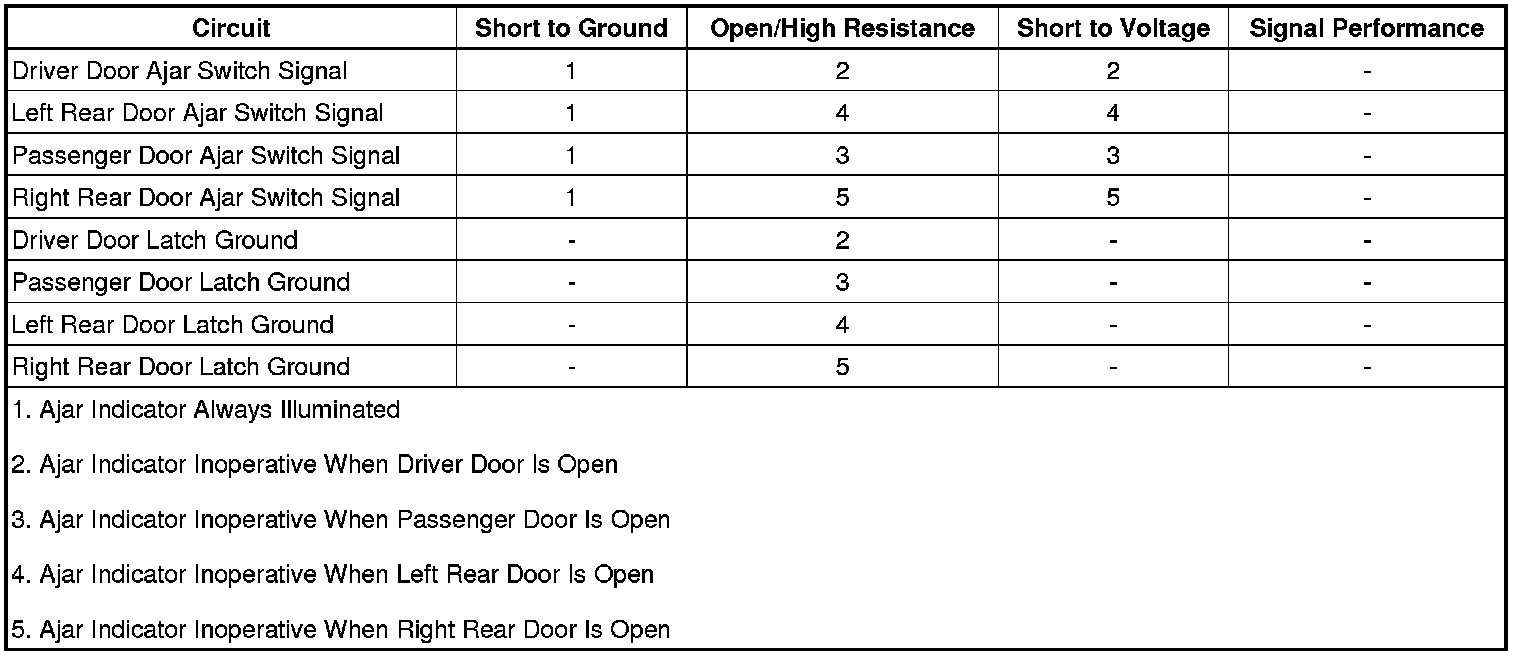

Diagnostic Fault Information
Circuit/System Description
The driver window motor, the passenger window switch, left rear and right rear window switch each supplies a 12V signal to each of their respective door ajar switches. The door ajar switches are integral to each door latch assembly. When a door is opened, the normally open door ajar switch closes. With the door ajar switch closed, ground is provided to the door ajar switch signal circuit. The window motor and/or window switch interprets this and communicates door status via serial data to the BCM.
Reference Information
Schematic Reference
Door Lock/Indicator Schematics Door Lock/Indicator Schematics
Connector End View Reference
Component Connector End Views Hybrid/EV Battery Pack X1
Description and Operation
Door Ajar Indicator Description and Operation Description and Operation
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
Scan Tool Reference
Control Module References Programming and Relearning for scan tool information
Circuit/System Verification
1. Vehicle in Service Mode.
2. Verify the appropriate scan tool Door Ajar Switch parameter changes between Inactive and Active when opening and closing the driver door, the passenger door, the left rear door and right rear door.
• If any parameter does not change
Refer to Circuit/System Testing
• If all the parameters change
3. All OK.
Circuit/System Testing
1. Vehicle OFF, disconnect the harness connector at the appropriate A23 door latch assembly. It may take up to 2 minutes for all vehicle systems to power down.
2. Test for less than 10 ohms between the ground circuit terminal listed below and ground.
* A23D door latch assembly-driver - ground circuit terminal 8
* A23P door latch assembly-passenger - ground circuit terminal 3
* A23LR door latch assembly-left rear - ground circuit terminal 8
* A23RR door latch assembly-right rear - ground circuit terminal 3
• If 10 ohms or greater
1. Vehicle OFF.
2. Test for less than 2 ohms in the ground circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, repair the open/high resistance in the ground connection.
• If less than 10 ohms
3. Vehicle in Service Mode.
4. Verify the appropriate scan tool Door Ajar Switch parameter is Inactive.
• If not Inactive
1. Vehicle OFF, disconnect the harness connector at the appropriate component listed below:
* M74D window motor - driver
* S79P window switch - passenger
* S79LR window switch - left rear
* S79RR window switch - right rear
2. Test for infinite resistance between the signal circuit terminal listed below and ground.
* A23D door latch assembly-driver - signal circuit terminal 6
* A23P door latch assembly-passenger - signal circuit terminal 1
* A23LR door latch assembly-left rear - signal circuit terminal 6
* A23RR door latch assembly-right rear - signal circuit terminal 1
• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance, replace the appropriate component.
• If Inactive
5. Install a 3 A fused jumper wire between the signal circuit terminal listed below and ground.
* A23D door latch assembly-driver - signal circuit terminal 6
* A23P door latch assembly-passenger - signal circuit terminal 1
* A23LR door latch assembly-left rear - signal circuit terminal 6
* A23RR door latch assembly-right rear - signal circuit terminal 1
6. Verify the scan tool Door Ajar Switch parameter is Active.
• If not Active
1. Vehicle OFF, disconnect the harness connector at the appropriate component listed below, Vehicle in Service Mode.
* M74D window motor - driver
* S79P window switch - passenger
* S79LR window switch - left rear
* S79RR window switch - right rear
2. Test for less than 1 V between the signal circuit and ground.
• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V
3. Test for less than 2 ohms in the signal circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the appropriate component.
• If Active
7. Test or replace the A23 door latch assembly.
Component Testing
Static Test
1. Vehicle OFF, disconnect the harness connector at the appropriate A23 door latch assembly.
2. With the door in the closed position, test for infinite resistance between the signal and the ground terminals listed below:
* A23D Door Latch Assembly - Driver signal terminal 6 and ground terminal 8
* A23LR Door Latch Assembly - Left Rear signal terminal 6 and ground terminal 8
* A23RR Door Latch Assembly - Right Rear signal terminal 1 and ground terminal 3
* A23P Door Latch Assembly - Passenger signal terminal 1 and ground terminal 3
• If not the specified value, replace the A23 door latch assembly.
3. With the door in the open position, test for less than 5 ohms between the signal and the ground terminals listed below:
* A23D Door Latch Assembly - Driver signal terminal 6 and ground terminal 8
* A23LR Door Latch Assembly - Left Rear signal terminal 6 and ground terminal 8
* A23RR Door Latch Assembly - Right Rear signal terminal 1 and ground terminal 3
* A23P Door Latch Assembly - Passenger signal terminal 1 and ground terminal 3
• If greater than the specified range, replace the A23 door latch assembly.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.
* Front Side Door Lock Replacement Front Side Door Lock Replacement
* Rear Side Door Lock Replacement Rear Side Door Lock Replacement
* Front Side Door Window Switch Replacement Front Side Door Window Switch Replacement
* Rear Side Door Window Switch Replacement Rear Side Door Window Switch Replacement
* Front Side Door Window Regulator Motor Replacement Service and Repair
* Control Module References Programming and Relearning for BCM replacement, programming and setup
