Home >> Chevrolet >> 2013 >> Volt L4-1.4L Elect >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Dashboard / Instrument Panel >> Service and Repair >> Lower Trim Pad Retainer Replacement (Outer)

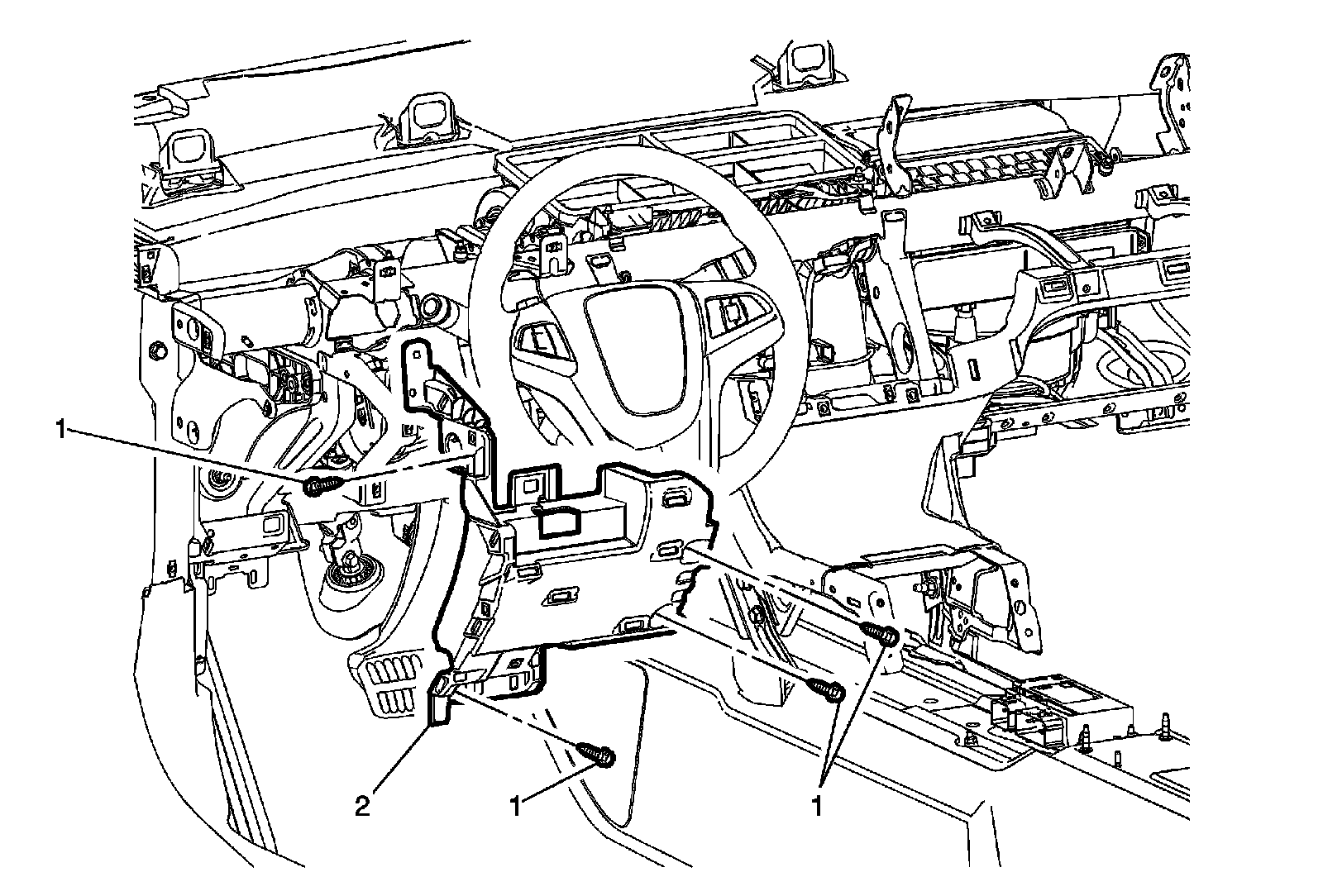

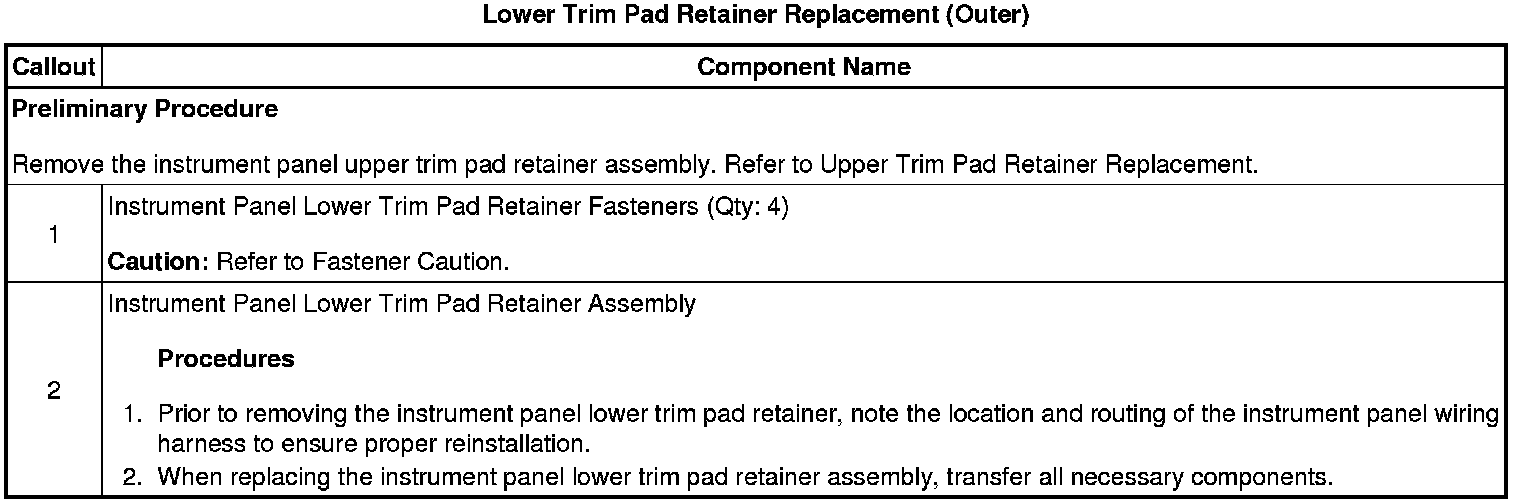

Lower Trim Pad Retainer Replacement (Outer)




Lower Trim Pad Retainer Replacement (Outer)
