Rear Bumper Upper Fascia Replacement

Rear Bumper Upper Fascia Replacement











2.Remove the rear bumper fascia energy absorber. Refer to Rear Bumper Energy Absorber Replacement Rear Bumper Energy Absorber Replacement .

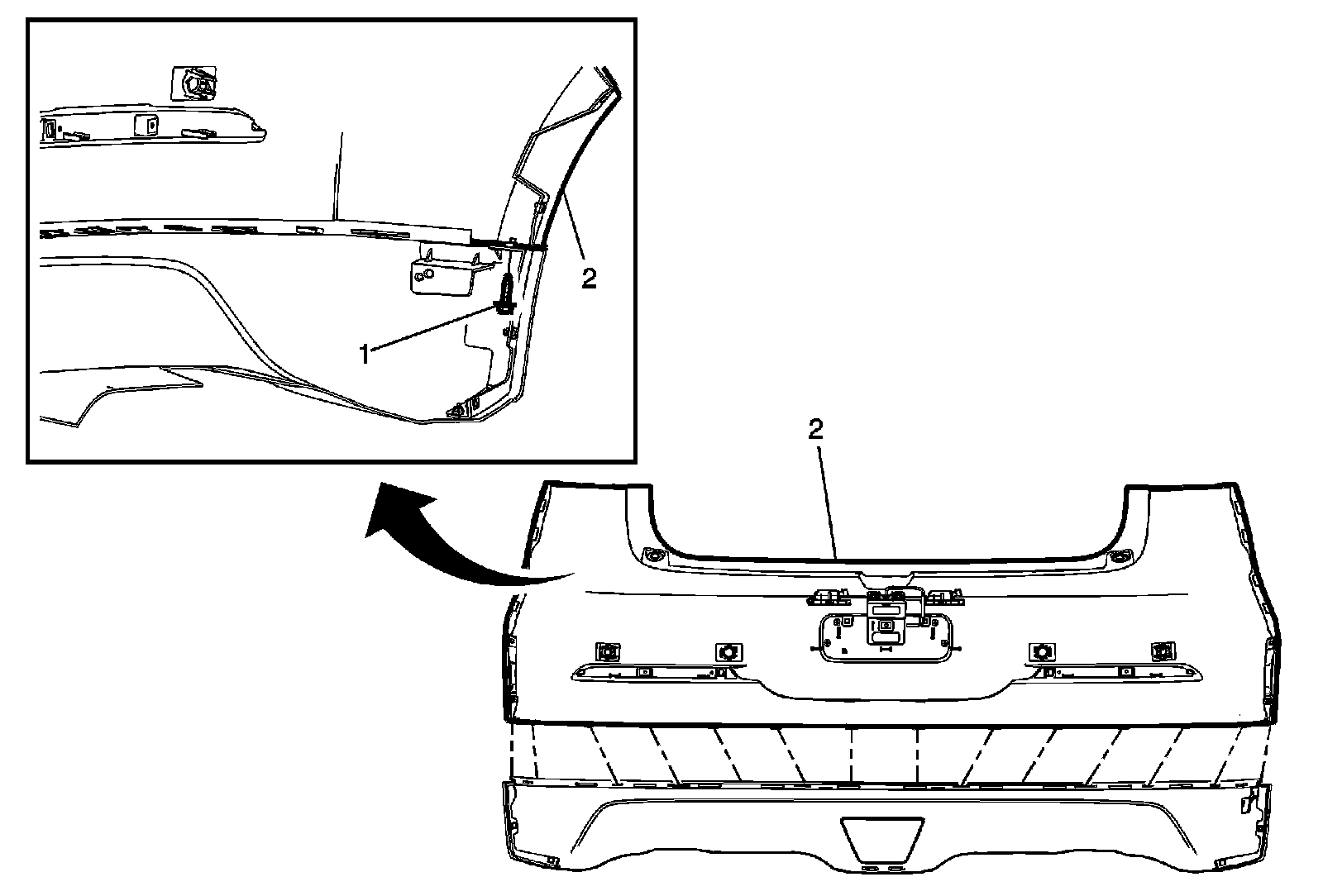

1Rear Bumper Upper Fascia Screw (Qty: 2)
Caution:Refer to Fastener Caution .
Tighten 6 N �m (53 lb in)

2Rear Bumper Upper Fascia

Procedure

1.Carefully push a small nylon wedge between the upper fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the upper fascia.

2.Transfer part as necessary.
