Rear Bumper Fascia Removal and Installation

Rear Bumper Fascia Removal and Installation

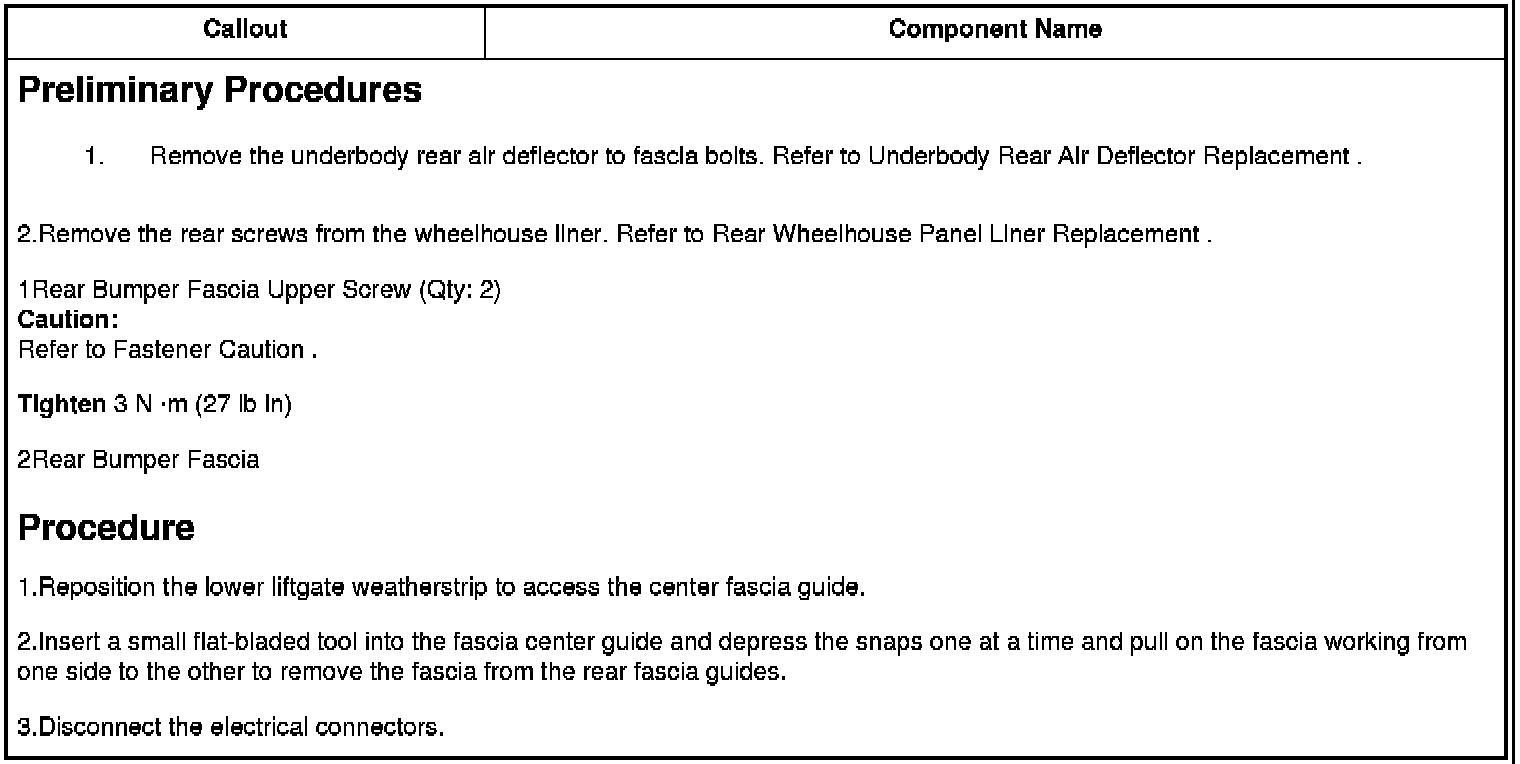

2.Remove the rear screws from the wheelhouse liner. Refer to Rear Wheelhouse Panel Liner Replacement Service and Repair .

1Rear Bumper Fascia Upper Screw (Qty: 2)
Caution:Refer to Fastener Caution .
Tighten 3 N �m (27 lb in)

2Rear Bumper Fascia

Procedure

1.Reposition the lower liftgate weatherstrip to access the center fascia guide.

2.Insert a small flat-bladed tool into the fascia center guide and depress the snaps one at a time and pull on the fascia working from one side to the other to remove the fascia from the rear fascia guides.

3.Disconnect the electrical connectors.
