Body and Frame: Application and ID

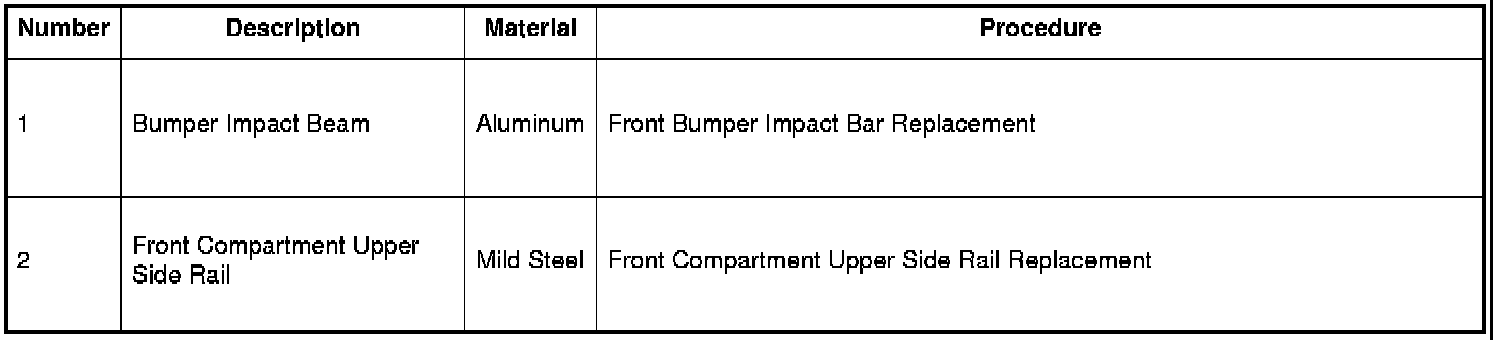

Structure Identification

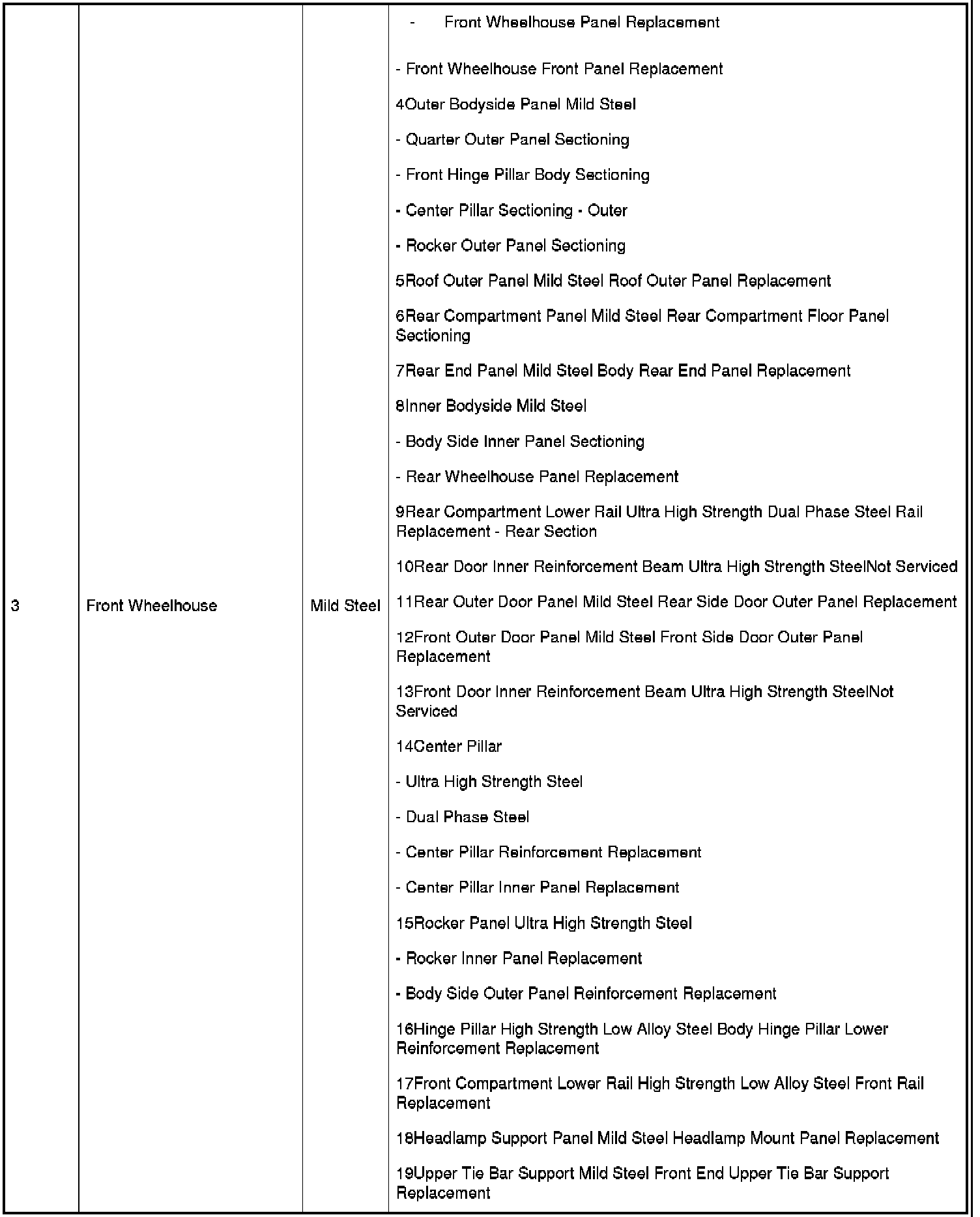

- Front Wheelhouse Front Panel Replacement

4Outer Bodyside Panel Mild Steel
- Quarter Outer Panel Sectioning

- Front Hinge Pillar Body Sectioning

- Center Pillar Sectioning - Outer

- Rocker Outer Panel Sectioning

5Roof Outer Panel Mild Steel Roof Outer Panel Replacement

6Rear Compartment Panel Mild Steel Rear Compartment Floor Panel Sectioning

7Rear End Panel Mild Steel Body Rear End Panel Replacement

8Inner Bodyside Mild Steel
- Body Side Inner Panel Sectioning

- Rear Wheelhouse Panel Replacement

9Rear Compartment Lower Rail Ultra High Strength Dual Phase Steel Rail Replacement - Rear Section

10Rear Door Inner Reinforcement Beam Ultra High Strength Steel Not Serviced

11Rear Outer Door Panel Mild Steel Rear Side Door Outer Panel Replacement

12Front Outer Door Panel Mild Steel Front Side Door Outer Panel Replacement

13Front Door Inner Reinforcement Beam Ultra High Strength Steel Not Serviced

14Center Pillar
- Ultra High Strength Steel

- Dual Phase Steel

- Center Pillar Reinforcement Replacement

- Center Pillar Inner Panel Replacement

15Rocker Panel Ultra High Strength Steel
- Rocker Inner Panel Replacement

- Body Side Outer Panel Reinforcement Replacement

16Hinge Pillar High Strength Low Alloy Steel Body Hinge Pillar Lower Reinforcement Replacement

17Front Compartment Lower Rail High Strength Low Alloy Steel Front Rail Replacement

18Headlamp Support Panel Mild Steel Headlamp Mount Panel Replacement

19Upper Tie Bar Support Mild Steel Front End Upper Tie Bar Support Replacement
