P07A3




DTC P07A3

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor

DTC P07A3

-
Transmission Clutch 1 Stuck On

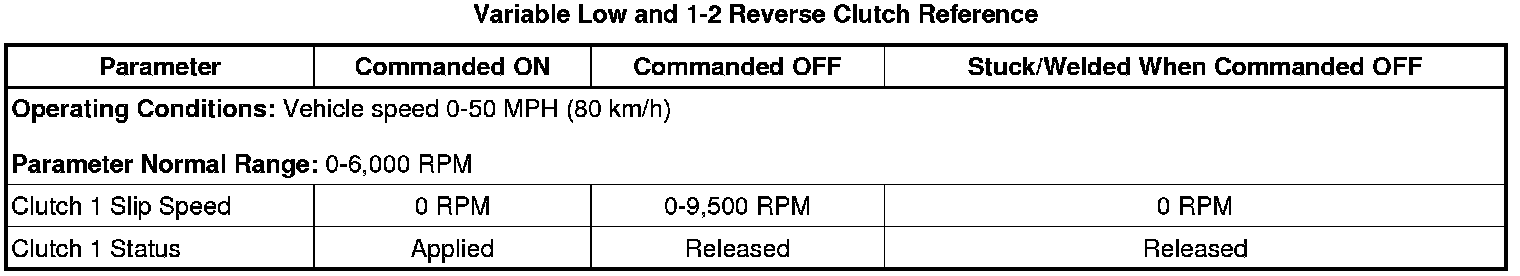

Typical Scan Tool Data






Circuit/System Description

The hybrid/electric vehicle (EV) powertrain control module 1 monitors the variable low and 1-2 reverse clutch slip speed for each Hybrid/EV Transmission Mode Command state. Low clutch slip speed when the clutch is commanded Off indicates a stuck or welded clutch condition. If the hybrid/EV powertrain control module 1 detects a stuck clutch condition, the hybrid/EV powertrain control module 1 will cycle the clutch 3 times within 30 seconds. The customer may feel 3 bumps before the DTC sets.

Conditions for Running the DTC

Variable low and 1-2 reverse clutch (C1) is commanded OFF.

Conditions for Setting the DTC

Clutch slip is less than 30 RPM 3 times within 30 seconds.

Action Taken When the DTC Sets

* P07A3 is a Type A DTC.

* Inhibits dual motor operation.

Conditions for Clearing the DTC

P07A3 is a Type A DTC.

Diagnostic Aids

When attempting to set transmission performance DTCs, observe the Freeze Frame and Failure Records to assist in duplicating the failure conditions. Ensure the transmission fluid level is correct and there are no leaks. If there are any other transmission DTCs set, diagnose those first.

Reference Information

Schematic Reference

Automatic Transmission Controls Schematics Electrical Diagrams

Connector End View Reference

Component Connector End Views Hybrid/EV Battery Pack X1

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

DTC Type Reference

Powertrain Diagnostic Trouble Code (DTC) Type Definitions Powertrain Diagnostic Trouble Code (DTC) Type Definitions

Scan Tool Reference

Control Module References Programming and Relearning for scan tool information.

Circuit/System Verification

1. Verify that P0721, P0797, P0966, P0967, P0969, P0970, P0971, P0973, P0974, P0976, P0977, P1B03, P1B04, P215C, P2720, P2721, P2728, P2729, or P2730 is not set.

If any of the DTCs are set, refer to Diagnostic Trouble Code (DTC) List - Vehicle Diagnostic Trouble Code (DTC) List - Vehicle.

2. Perform the Transmission Fluid Level and Condition Check Testing and Inspection to verify correct fluid level and condition.

If the transmission fluid is low or discolored, refer to Transmission Fluid Drain and Fill Transmission Fluid Drain and Fill.

3. Operate the vehicle in Dual Electric Motors and ICE mode while monitoring the Clutch 1 Slip Speed parameter. The Clutch 1 Slip Speed parameter should display greater than 30 RPM when the Clutch 1 Status parameter displays Released.

If the DTC P07A3 resets, go to Component Testing.

Component Testing

1. Perform the Line Pressure Check Line Pressure Check.

2. Perform the Control Solenoid Valve and Transmission Control Module Assembly Solenoid Performance Test Control Solenoid Valve and Transmission Control Module Assembly Solenoid Performance Test.

If a concern is found, replace the Q8 control solenoid valve assembly.

3. Inspect the valve body assembly for sticking or damaged valves. Refer Control Valve Body Diagnostic Inspection Control Valve Body Diagnostic Inspection.

If you found a stuck or damaged valve, repair or replace the valve or valve body.

4. Inspect the variable low and 1-2 reverse clutch for a stuck On or damaged condition.

If you found a variable low and 1-2 reverse clutch concern, repair or replace the variable low and 1-2 reverse clutch assembly as necessary.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.

* Variable Low and 1-2 Reverse Clutch Piston Removal Variable Low and 1-2 Reverse Clutch Piston Removal and Variable Low and 1-2 Reverse Clutch Piston Installation Variable Low and 1-2 Reverse Clutch Piston Installation for variable low and 1-2 reverse clutch repair or replacement.

* Control Valve Body Replacement Control Valve Body Replacement for control valve body replacement.

* Perform the valve body inspection procedure, refer to Control Solenoid Valve and Transmission Control Module Assembly Inspection Control Solenoid Valve and Transmission Control Module Assembly Inspection. If the inspection procedure indicates to replace the valve body, refer to Control Valve Body Replacement Control Valve Body Replacement.

* Transmission Replacement Transmission Replacement for transmission removal.

* Control Module References Programming and Relearning for Control Solenoid Valve Assembly and Transmission Control Module Assembly replacement, programming and setup.

* Perform the Reset Transmission Adapts Programming and Relearning following all transmission related repairs.
