P0533
DTC P0531, P0532, or P0533
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of the diagnostic category.
DTC Descriptors
DTC P0531
- Air Conditioning (A/C) Refrigerant Pressure Sensor Circuit
DTC P0532
- Air Conditioning (A/C) Refrigerant Pressure Sensor Circuit Low Voltage
DTC P0533
- Air Conditioning (A/C) Refrigerant Pressure Sensor Circuit High Voltage

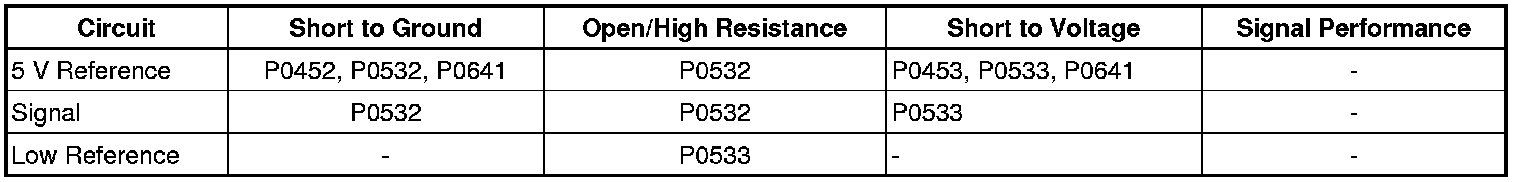

Diagnostic Fault Information
Circuit/System Description
The engine control module (engine control module) monitors the high side refrigerant pressure through the A/C refrigerant pressure sensor. The engine control module supplies a 5 V reference and a low reference to the sensor. Changes in the A/C refrigerant pressure cause the sensor signal to the engine control module to vary. When the pressure is high, the signal voltage is high. When the pressure is low, the signal voltage is low. When pressure is high, the engine control module commands the cooling fans on.
Conditions for Running the DTC
* Engine is running.
* Any of the conditions for setting the DTC are met for 15 seconds.
* Battery voltage is between 11-18 V.
Conditions for Setting the DTC
* The engine control module detects that the A/C pressure is less than.25 V.
* The engine control module detects that the A/C pressure is greater than 4.75 V.
Action Taken When the DTC Sets
This is a type D DTC.
Conditions for Clearing the DTC
This is a type D DTC.
Diagnostic Aids
A malfunction within the refrigerant system causing high pressure can cause this DTC to set.
Reference Information
Schematic Reference
HVAC Schematics Electrical Diagrams
Connector End View Reference
Component Connector End Views Hybrid/EV Battery Pack X1
Description and Operation
Automatic HVAC Description and Operation HVAC - Automatic
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
DTC Type Reference
Powertrain Diagnostic Trouble Code (DTC) Type Definitions Powertrain Diagnostic Trouble Code (DTC) Type Definitions
Scan Tool Reference
Control Module References Programming and Relearning for scan tool information
Circuit/System Verification
1. Vehicle in Service Mode.
2. Verify the scan tool engine control module A/C High Side Pressure Sensor parameter is between.25 V and 4.75 V.
• If the parameter is not between.25 V and 4.75 V.
Refer to Circuit/System Testing.
• If the parameter is between.25 V and 4.75 V
3. All OK.
Circuit/System Testing
1. Vehicle OFF and all vehicle systems OFF, disconnect the harness connector at the B1 A/C refrigerant pressure sensor. It may take up to 2 minutes for all vehicle systems to power down.
2. Test for less than 5 ohms between the low reference circuit terminal 1 and ground.
• If 5 ohms or greater
1. Vehicle OFF, disconnect the harness connector at the K20 engine control module.
2. Test for less than 2 ohms in the low reference circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K20 engine control module.
• If less than 5 ohms
3. Vehicle in Service Mode.
4. Test for 4.8-5.2 V between the 5 V reference circuit terminal 2 and ground.
• If less than 4.8 V
1. vehicle OFF, disconnect the harness connector at the K20 engine control module.
2. Test for infinite resistance between the 5 V reference circuit and ground.
• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance
3. Test for less than 2 ohms in the 5 V reference circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K20 engine control module.
• If greater than 5.2 V
1. Vehicle OFF, disconnect the harness connector at the K20 engine control module, vehicle in Service Mode.
2. Test for less than 1 V between the 5 V reference circuit and ground.
• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V, replace the K20 engine control module.
• If between 4.8-5.2 V
5. Verify the scan tool engine control module A/C High Side Pressure Sensor parameter is less than.25 V.
• If.25 V or greater
1. Vehicle OFF, disconnect the harness connector at the K20 engine control module, vehicle in Service Mode.
2. Test for less than 1 V between the signal circuit terminal 3 and ground.
• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V, replace the K20 engine control module.
• If less than.25 V
6. Install a 3 A fused jumper wire between the signal circuit terminal 3 and the 5 V reference circuit terminal 2.
7. Verify the scan tool A/C High Side Pressure Sensor parameter is greater than 4.75 V.
• If 4.75 V or less
1. Vehicle OFF, disconnect the harness connector at the K20 engine control module.
2. Test for infinite resistance between the signal circuit terminal 3 and ground.
• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance
3. Test for less than 2 ohms in the signal circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K20 engine control module.
• If greater than 4.75 V
8. Test or replace the B1 A/C refrigerant pressure sensor.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the repair.
* HVAC Component Replacement Reference HVAC Component Replacement Reference
* Control Module References Programming and Relearning for engine control module replacement, programming and setup
