B3883

DTC B3883

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC B3883 01
- License Plate Lamp Circuit Short to Battery

DTC B3883 02
- License Plate Lamp Circuit Short to Ground

DTC B3883 04
- License Plate Lamp Circuit Open

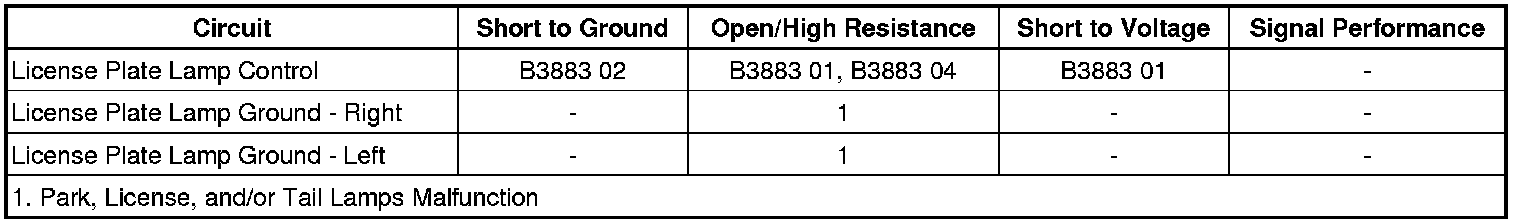

Diagnostic Fault Information






Circuit/System Description

When the turn signal/multifunction switch is placed in the HEAD or PARK position, ground is applied to the park lamp switch ON signal circuit to the body control module (BCM). The BCM responds by applying voltage to the park lamps and license lamps control circuits illuminating the park and license lamps.

Conditions for Running the DTC

DTC B3883 01

Turn signal/multifunction switch in OFF position.

DTC B3883 02 and B3883 04

Turn signal/multifunction switch in AUTO, PARK or ON positions.

Conditions for Setting the DTC

DTC B3883 01

The BCM detects a short to voltage in the license plate lamp control circuit.

DTC B3883 02

The BCM detects a short to ground in the license plate lamp control circuit.

DTC B3883 04

The BCM detects an open/high resistance in the license plate lamp control circuit.

Actions Taken When the DTC Sets

DTC B3883 01

License plate lamps always ON.

DTC B3883 02 and B3883 04

License plate lamps inoperative.

Conditions for Clearing the DTC

* The condition responsible for setting the DTC no longer exists.

* A history DTC will clear once 100 consecutive malfunction-free vehicle ON/OFF switch cycles have occurred.

Reference Information

Schematic Reference

Exterior Lights Schematics Exterior Lights Schematics

Connector End View Reference

Component Connector End Views Hybrid/EV Battery Pack X1

Description and Operation

Exterior Lighting Systems Description and Operation Exterior Lighting Systems

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Programming and Relearning for scan tool information

Circuit/System Testing

1. Vehicle OFF, exterior lamps OFF, remove both E7 license plate lamp bulbs.

2. Test for less than 5 ohms between each ground circuit terminal 2 and ground.

• If 5 ohms or greater

1. Vehicle OFF.

2. Test for less than 2 ohms in the ground circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.

• If less than 2 ohms, repair the open/high resistance in the ground connection.

• If less than 5 ohms

3. Connect a test lamp between the E7L license plate lamp - left control circuit terminal 1 and ground, vehicle in Service Mode.

4. Verify the test lamp turns ON and OFF when commanding the License Plate Lamps ON and OFF with a scan tool.

• If the test lamp is always OFF

1. Vehicle OFF, disconnect the X4 harness connector at the K9 body control module.

2. Test for infinite resistance between the control circuit and ground.

• If less than infinite resistance, repair the short to ground on the circuit.

• If infinite resistance

3. Test for less than 2 ohms in the control circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.

• If less than 2 ohms, replace the K9 body control module.

• If the test lamp is always ON

1. Vehicle OFF, disconnect the X4 harness connector at the K9 body control module, vehicle in Service Mode.

2. Test for less than 1 V between the control circuit terminal and ground.

• If 1 V or greater, repair the short to voltage on the circuit.

• If less than 1 V, replace the K9 body control module.

• If the test lamp turns ON and OFF

5. Vehicle OFF.

6. Connect a test lamp between the E7R license plate lamp - right control circuit terminal 1 and ground, vehicle in Service Mode.

7. Verify the test lamp turns ON and OFF when commanding the License Plate Lamps ON and OFF with a scan tool.

• If the test lamp is always OFF

1. Vehicle OFF, disconnect the X4 harness connector at the K9 body control module.

2. Test for infinite resistance between the control circuit and ground.

• If less than infinite resistance, repair the short to ground on the circuit.

• If infinite resistance

3. Test for less than 2 ohms in the control circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.

• If the test lamp turns ON and OFF

8. Test or replace the appropriate E7 license plate lamp bulb.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the repair.

* Rear License Plate Lamp Replacement Rear License Plate Lamp Replacement

* Control Module References Programming and Relearning for BCM replacement, programming, and setup
