B3650
DTC B3650
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptor
DTC B3650 08
- High Beam Request Signal Circuit Performance - Signal Invalid

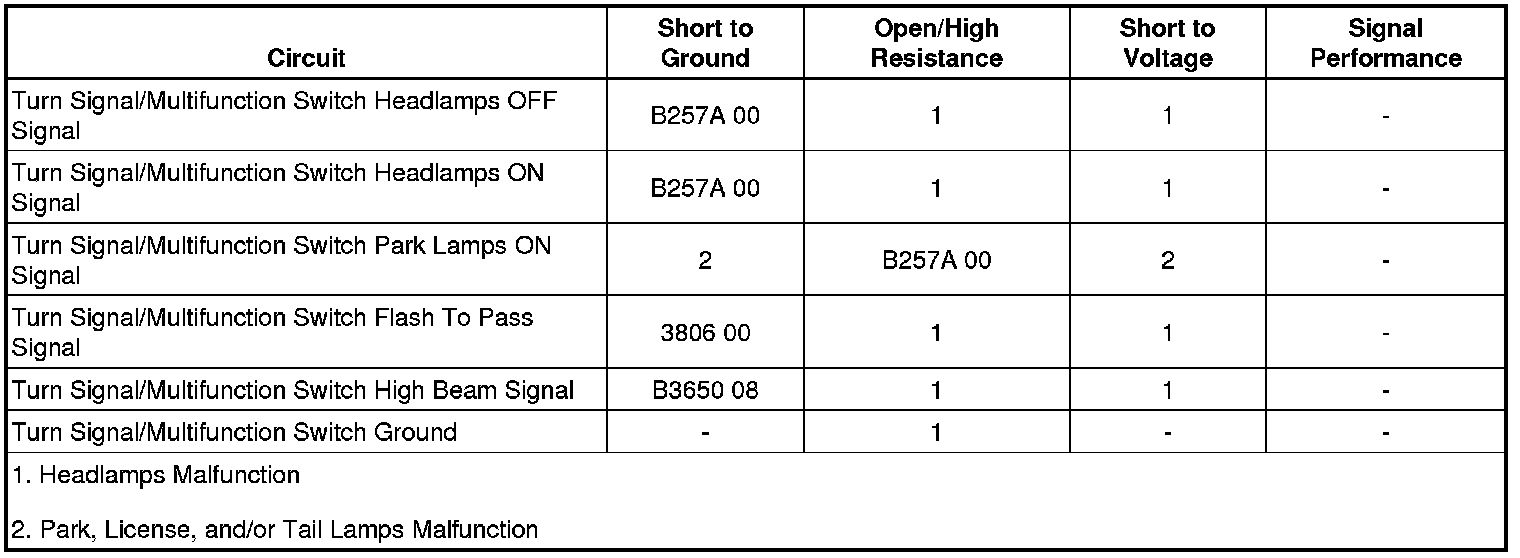

Diagnostic Fault Information
Circuit/System Description
For headlamp operation, the body control module (BCM) monitors three signal circuits from the turn signal/multifunction switch. When the turn signal/multifunction switch is in the AUTO position, the three signal circuits are open and the BCM relies on the ambient light sensor input to turn the headlamps and daytime running lamps (DRLs) ON and OFF. When the turn signal/multifunction switch is placed in the OFF position, the turn signal/multifunction switch headlamps OFF signal circuit is grounded, indicating to the BCM that the exterior lamps should be turned OFF. With the turn signal/multifunction switch in the PARK LAMPS position, the turn signal/multifunction switch park lamps ON signal circuit is grounded, indicating that the park lamps have been requested. When the turn signal/multifunction switch is in the HEADLAMP position, both the turn signal/multifunction switch park lamps ON signal circuit and the turn signal/multifunction switch headlamps ON signal circuit are grounded. The BCM responds by commanding the park lamps and headlamps ON.
Conditions for Running the DTC
Battery voltage must be between 9-16 V.
Conditions for Setting the DTC
The BCM detects a short to ground in the turn signal/multifunction switch high beam signal circuit.
Actions Taken When the DTC Sets
The high beam headlamps will not operate.
Conditions for Clearing the DTC
* The condition responsible for setting the DTC no longer exists.
* A history DTC will clear once 100 consecutive malfunction-free vehicle ON/OFF switch cycles have occurred.
Reference Information
Schematic Reference
Exterior Lights Schematics Exterior Lights Schematics
Connector End View Reference
Component Connector End Views Hybrid/EV Battery Pack X1
Description and Operation
Exterior Lighting Systems Description and Operation Exterior Lighting Systems
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
Scan Tool Reference
Control Module References Programming and Relearning for scan tool information
Circuit/System Testing
1. Vehicle OFF, scan tool disconnected, all doors closed, all accessories OFF, disconnect the harness connector at the S78 turn signal/multifunction switch. It may take up to 2 minutes for all vehicle systems to power down.
2. Test for less than 15 ohms between the ground circuit terminal 6 and ground.
• If 15 ohms or greater
1. Vehicle OFF.
2. Test for less than 2 ohms in the ground circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, repair the open/high resistance in the ground connection.
• If less than 15 ohms
3. Vehicle in Service Mode.
4. Verify the scan tool High Beam Select Switch parameter is Inactive.
• If not Inactive
1. Vehicle OFF, disconnect the X3 harness connector at the K9 body control module.
2. Test for infinite resistance between the signal circuit terminal 11 and ground.
• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance, replace the K9 body control module.
• If Inactive
5. Install a 3 A fused jumper wire between the signal circuit terminal 11 and the ground circuit terminal 6.
6. Verify the scan tool High Beam Select Switch parameter is Active.
• If not Active
1. Vehicle OFF, disconnect the X3 harness connector at the K9 body control module, vehicle in Service Mode.
2. Test for less than 1 V between the signal circuit terminal 11 and ground.
• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V
3. Test for less than 2 ohms in the signal circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K9 body control module.
• If Active
7. Test or replace the S78 turn signal/multifunction switch.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the repair.
* Turn Signal Multifunction Switch Replacement Turn Signal Multifunction Switch Replacement
* Control Module References Programming and Relearning for BCM replacement, programming, and setup
