B2605
DTC B2600 or B2605
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptors
DTC B2600 02
- Left Daytime Running Lamps Control Circuit Short to Ground
DTC B2605 02
- Right Daytime Running Lamps Control Circuit Short to Ground

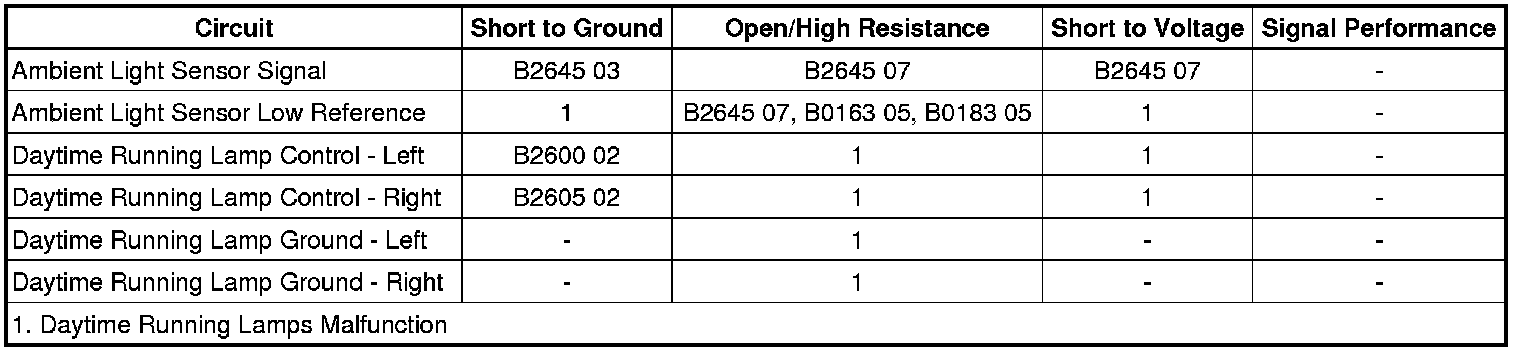

Diagnostic Fault Information
Circuit/System Description
The ambient light sensor is used to monitor outside lighting conditions. The ambient light sensor provides a voltage signal that will vary between 0.2 and 4.9 volts depending on outside lighting conditions. The body control module (BCM) provides a 5-volt reference signal to the ambient light sensor and the HVAC control module provides a low reference ground. The BCM monitors the ambient light sensor signal circuit to determine if outside lighting conditions are correct for either daytime running lights (DRL) or the automatic headlamp system when the headlamp switch is in the AUTO position. In daylight conditions, the BCM will command the DRLs ON by applying voltage to the left and right DRL control circuits illuminating the DRLs. Any function or condition that turns on the headlamps will cancel DRL operation.
Conditions for Running the DTC
Battery voltage must be between 9-16 V.
Conditions for Setting the DTC
DTC B2600 02
The BCM detects a short to ground in the left daytime running lamp control circuit.
DTC B2605 02
The BCM detects a short to ground in the right daytime running lamp control circuit.
Actions Taken When the DTC Sets
DTC B2600 02
The left daytime running lamp is inoperative.
DTC B2605 02
The right daytime running lamp is inoperative.
Conditions for Clearing the DTC
* The condition responsible for setting the DTC no longer exists.
* A history DTC will clear once 100 consecutive malfunction-free vehicle ON/OFF switch cycles have occurred.
Diagnostic Aids
The daytime running lamps will only operate in daylight conditions with the vehicle ON and in any transmission gear except PARK.
Reference Information
Schematic Reference
* Headlights/Daytime Running Lights (DRL) Schematics Headlights/Daytime Running Lights (DRL) Schematics
* Body Control System Schematics [1][2]Body Control Systems
Connector End View Reference
Component Connector End Views Hybrid/EV Battery Pack X1
Description and Operation
Exterior Lighting Systems Description and Operation Exterior Lighting Systems
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
Scan Tool Reference
Control Module References Programming and Relearning for scan tool information
Circuit/System Testing
1. Vehicle OFF, exterior lamps OFF, disconnect the harness connector at the inoperative E13 headlamp.
2. Test for less than 5 ohms between the ground circuit terminal 4 and ground.
• If 5 ohms or greater
1. Vehicle OFF.
2. Test for less than 2 ohms in the ground circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, repair the open/high resistance in the ground connection.
• If less than 5 ohms
3. Connect a test lamp between the control circuit terminal 2 and ground, vehicle ON.
4. Verify the test lamp turns ON and OFF when commanding the appropriate Dedicated Daytime Running Lamp ON and OFF with a scan tool.
• If the test lamp is always OFF
1. Vehicle OFF, disconnect the appropriate harness connector listed below at the K9 body control module.
* X5 - left daytime running lamp
* X7 - right daytime running lamp
2. Test for infinite resistance between the control circuit and ground.
• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance
3. Test for less than 2 ohms in the control circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K9 body control module.
• If the test lamp is always ON
1. Vehicle OFF, disconnect the appropriate harness connector listed below at the K9 body control module, vehicle ON.
* X5 - left daytime running lamp
* X7 - right daytime running lamp
2. Test for less than 1 V between the control circuit terminal and ground.
• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V, replace the K9 body control module.
• If the test lamp turns ON and OFF
5. Test or replace the appropriate E4 daytime running lamp.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the repair.
* Headlamp Replacement Removal and Replacement
* Headlamp Bulb Replacement Service and Repair
* Control Module References Programming and Relearning for BCM replacement, programming, and setup
