B096F




DTC B096F

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC B096F 01
- Power Mode Switch Assembly Backlight Circuit Short to Battery

DTC B096F 02
- Power Mode Switch Assembly Backlight Circuit Short to Ground

DTC B096F 04
- Power Mode Switch Assembly Backlight Circuit Open

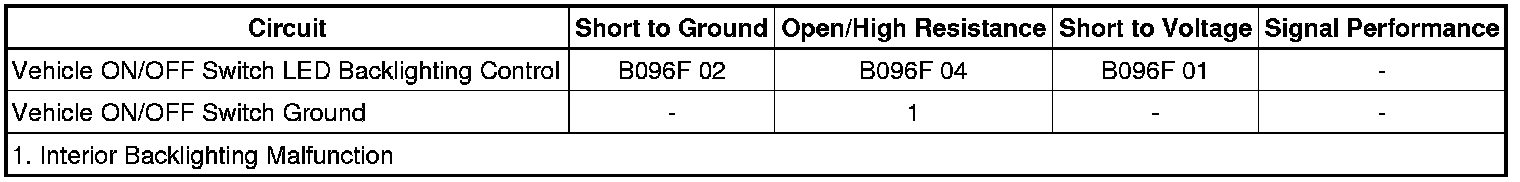

Diagnostic Fault Information






Circuit/System Description

The instrument panel dimmer switch is used to increase and decrease the brightness of the interior backlighting components. The instrument panel dimmer switch provides a voltage signal to the body control module (BCM) that will increase as the brightness of the lights are increased and decrease as the brightness of the lights are decreased. The BCM provides a low reference, signal, and B+ circuits to the instrument panel dimmer switch. When the instrument panel dimmer switch is placed in the desired position, the dimmed voltage setting is applied from the instrument panel dimmer switch through the instrument panel dimmer switch signal circuit to the BCM. The BCM interprets the signal and applies a pulse width modulated (PWM) voltage through the LED dimming control circuits illuminating the interior backlighting to the requested level of brightness.

Conditions for Running the DTC

* Battery voltage must be between 9-16 V.

* Park lamps ON.

Conditions for Setting the DTC

DTC B096F 01

The BCM detects a short to voltage in the vehicle ON/OFF switch LED backlighting control circuit.

DTC B096F 02

The BCM detects a short to ground in the vehicle ON/OFF switch LED backlighting control circuit.

DTC B096F 04

The BCM detects an open/high resistance in the vehicle ON/OFF switch LED backlighting control circuit.

Actions Taken When the DTC Sets

The vehicle ON/OFF switch LED backlighting will not illuminate.

Conditions for Clearing the DTC

* The condition responsible for setting the DTC no longer exists.

* A history DTC will clear once 100 consecutive malfunction-free vehicle ON/OFF switch cycles have occurred.

Reference Information

Schematic Reference

Interior Lights Dimming Schematics Interior Lights Dimming Schematics

Connector End View Reference

Component Connector End Views Hybrid/EV Battery Pack X1

Description and Operation

Interior Lighting Systems Description and Operation Interior Lighting Systems

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Programming and Relearning for scan tool information

Circuit/System Testing

1. Vehicle OFF, scan tool disconnected, all doors closed, all accessories OFF, disconnect the harness connector at the S83 vehicle ON/OFF switch. It may take up to 2 minutes for all vehicle systems to power down.

2. Test for less than 5 ohms between the ground circuit terminal 4 and ground.

• If 5 ohms or greater

1. Ignition OFF.

2. Test for less than 2 ohms in the ground circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.

• If less than 2 ohms, repair the open/high resistance in the ground connection.

• If less than 5 ohms

3. Connect a test lamp between the control circuit terminal 8 and ground, vehicle in Service Mode, park lamps ON.

4. Verify the test lamp intensity changes from low to high as the instrument panel dimmer switch is activated from low to high.

• If the test lamp is always OFF

1. Vehicle OFF, disconnect the X7 harness connector at the K9 body control module.

2. Test for infinite resistance between the control circuit and ground.

• If less than infinite resistance, repair the short to ground on the circuit.

• If infinite resistance

3. Test for less than 2 ohms in the control circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.

• If less than 2 ohms, replace the K9 body control module.

• If the test lamp is always ON full intensity

1. Vehicle OFF, disconnect the X7 harness connector at the K9 body control module, vehicle in Service Mode.

2. Test for less than 1 V between the control circuit terminal and ground.

• If 1 V or greater, repair the short to voltage on the circuit.

• If less than 1 V, replace the K9 body control module.

• If the test lamp dims from LOW to HIGH

5. Test or replace the S83 vehicle ON/OFF switch.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the repair.

* Ignition and Start Switch Replacement Service and Repair

* Control Module References Programming and Relearning for BCM replacement, programming, and setup
