Auxiliary Fuse Block

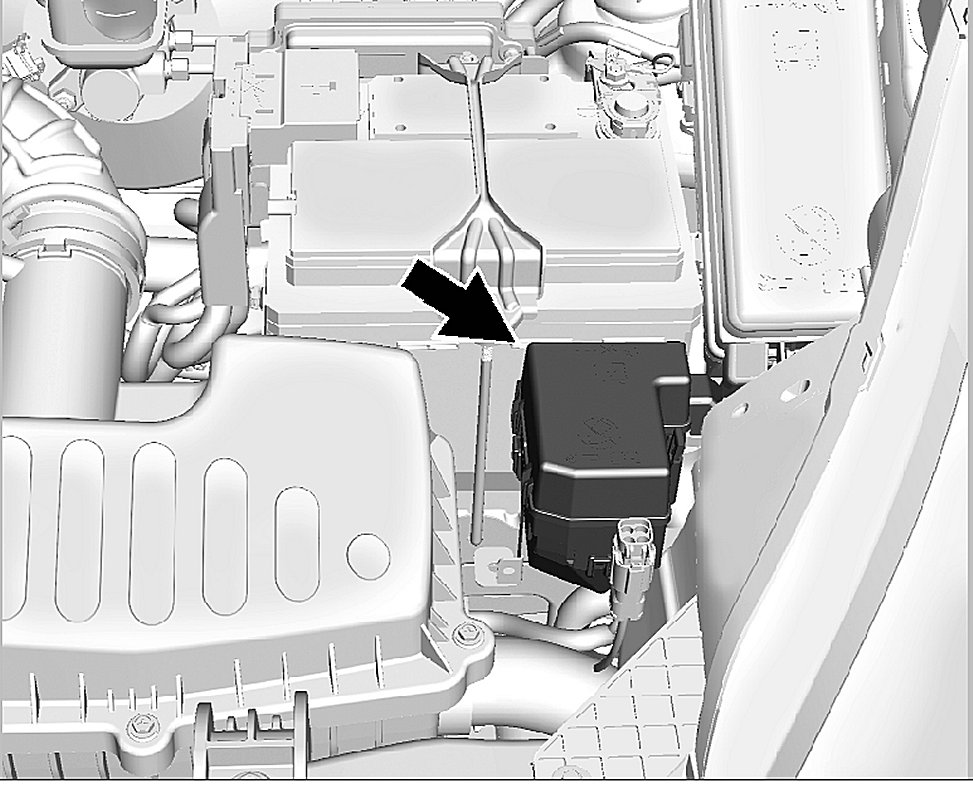

The Auxiliary fuse block is on the driver side of the vehicle, near the battery.

Notice: Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.

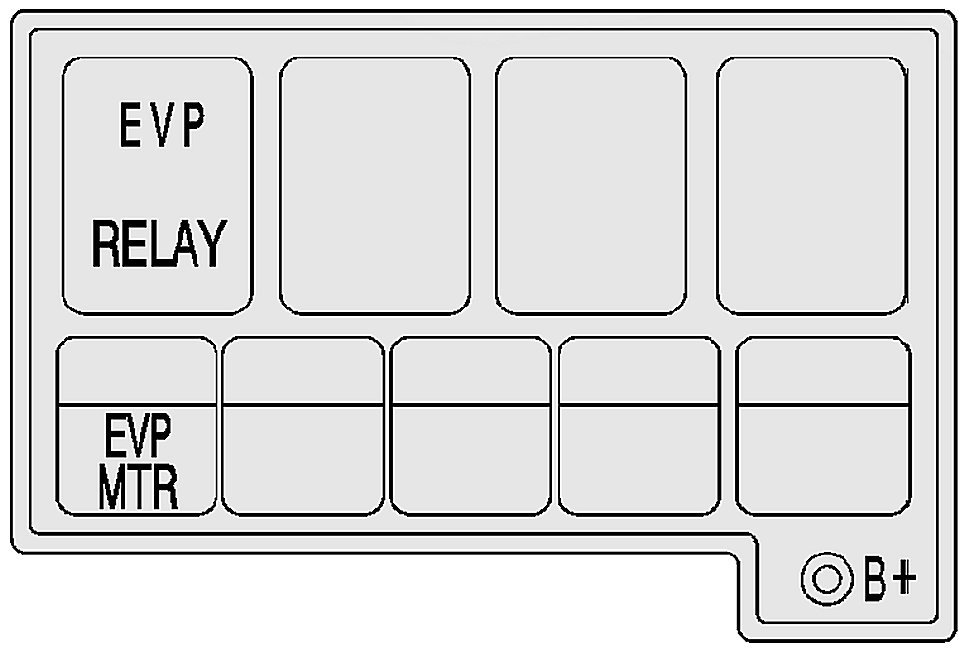

The vehicle may not be equipped with all of the fises, relays, and features shown.
EVP Relay EVP Relay
EVP MTR EVP Motor

To access the fuses, press the tab at the front of the cover, and lift the cover.
