Cabin Air Filter / Purifier: Service and Repair

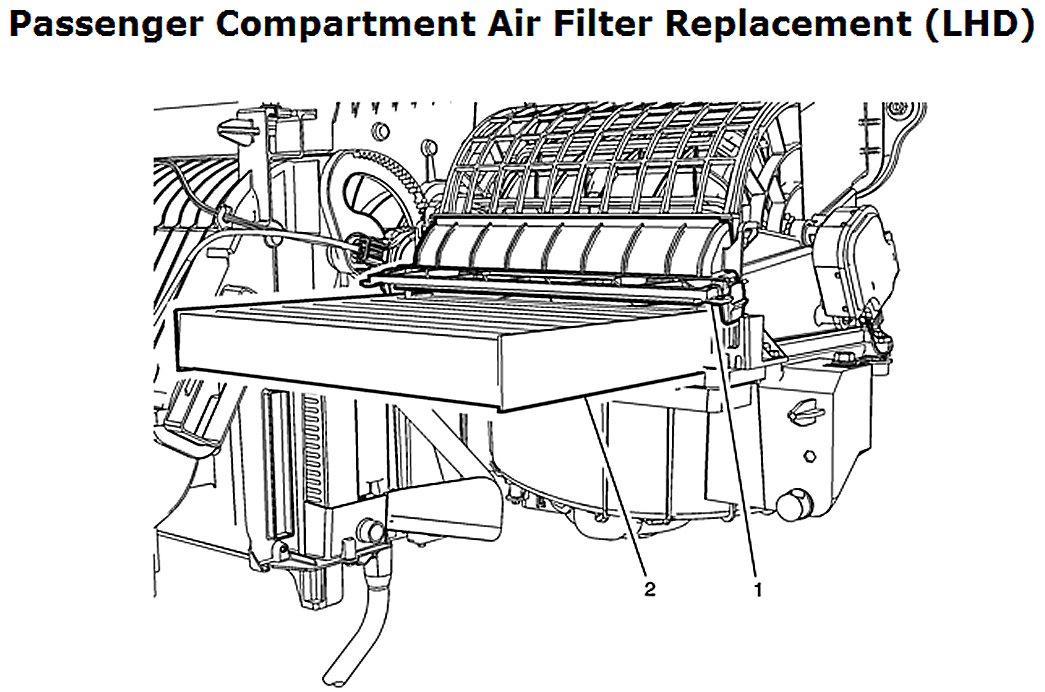

Passenger compartment Air Filter Replacement (LHD)

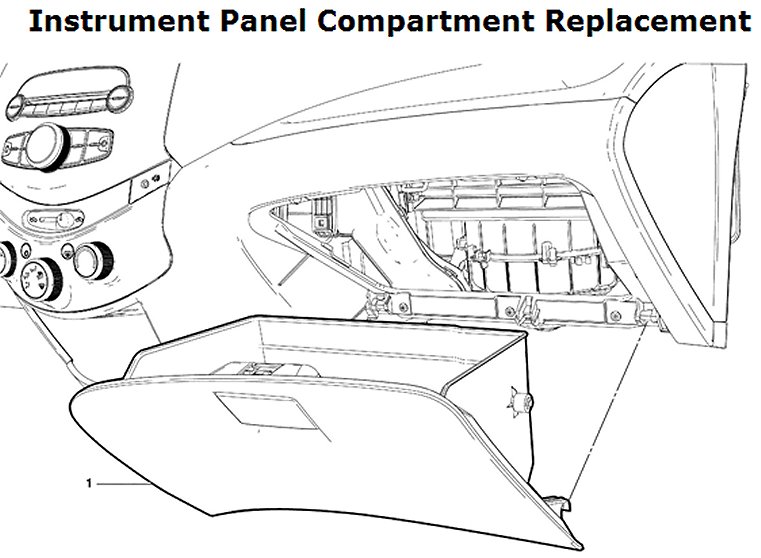

1. Instrument Panel Compartment Assembly.
2. Pull out the instrument panel compartment to disconnect the hinge.
3. Remove the instrument panel (I/P) compartment.

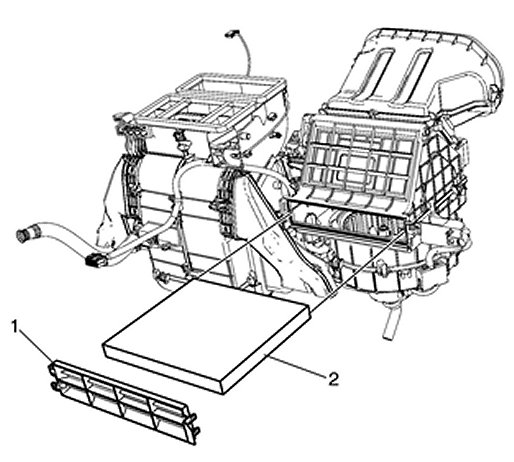

4. Remove the passenger Passenger compartment Air Filter cover (1).
5. Remove the passenger Passenger compartment Air Filter (2).

Installation Procedure






1. Install the passenger Passenger compartment Air Filter (2).
2. Remove the passenger Passenger compartment Air Filter cover (1).
3. Remove the instrument panel (I/P) compartment,
