Front Bumper Impact Bar Replacement

Front Bumper Impact Bar Replacement

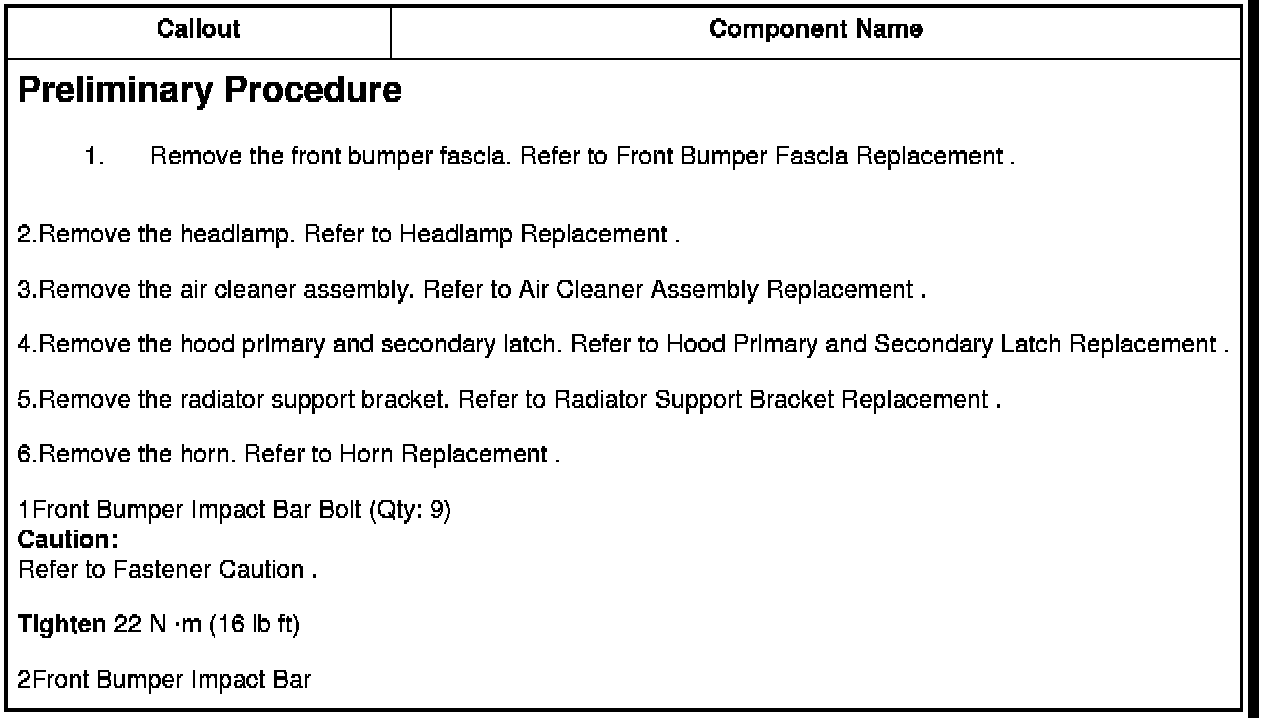

2.Remove the headlamp. Refer to Headlamp Replacement .

3.Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .

4.Remove the hood primary and secondary latch. Refer to Hood Primary and Secondary Latch Replacement .

5.Remove the radiator support bracket. Refer to Radiator Support Bracket Replacement .

6.Remove the horn. Refer to Horn Replacement .

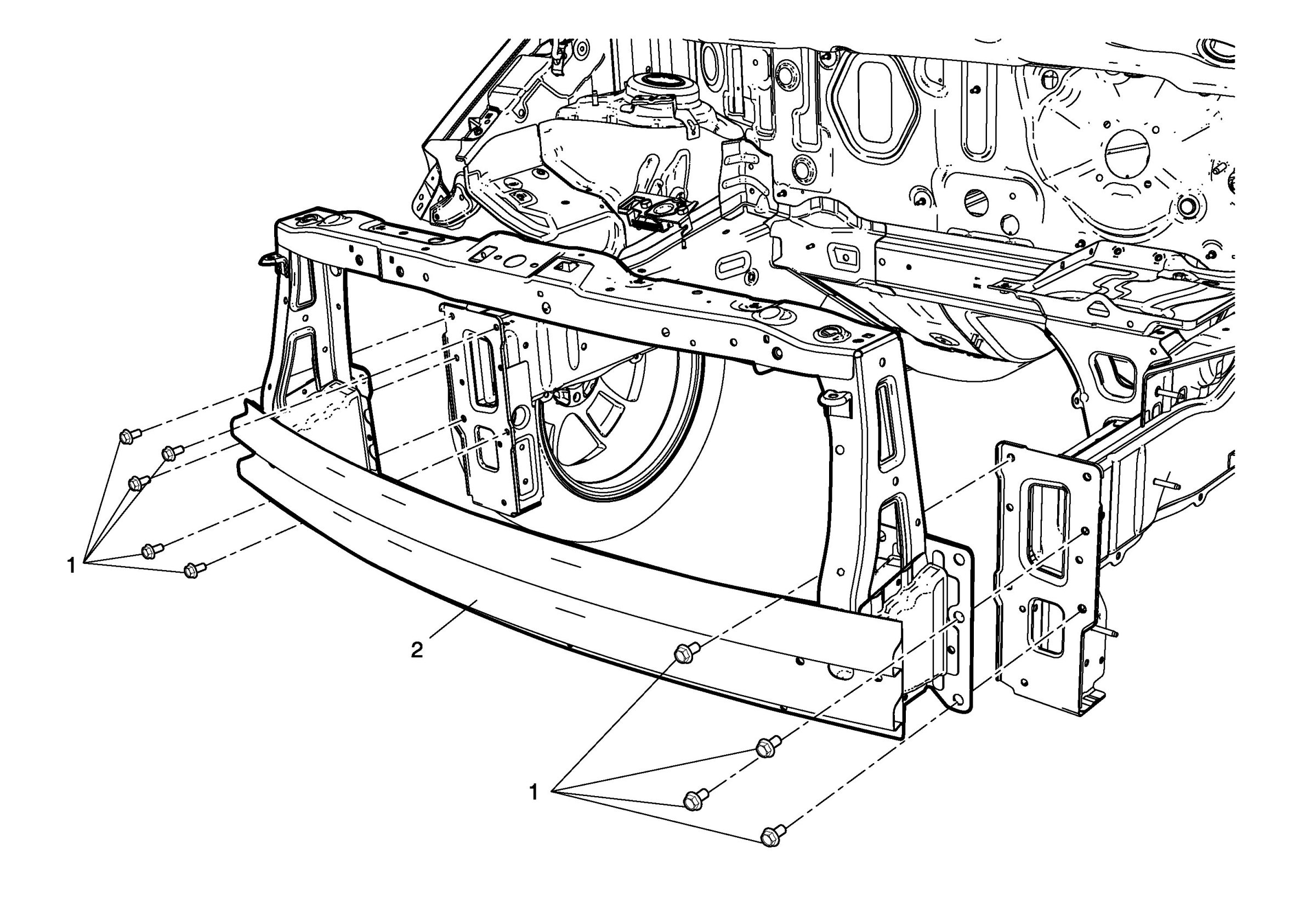

1Front Bumper Impact Bar Bolt (Qty: 9)
Caution:Refer to Fastener Caution .
Tighten 22 N �m (16 lb ft)

2Front Bumper Impact Bar
