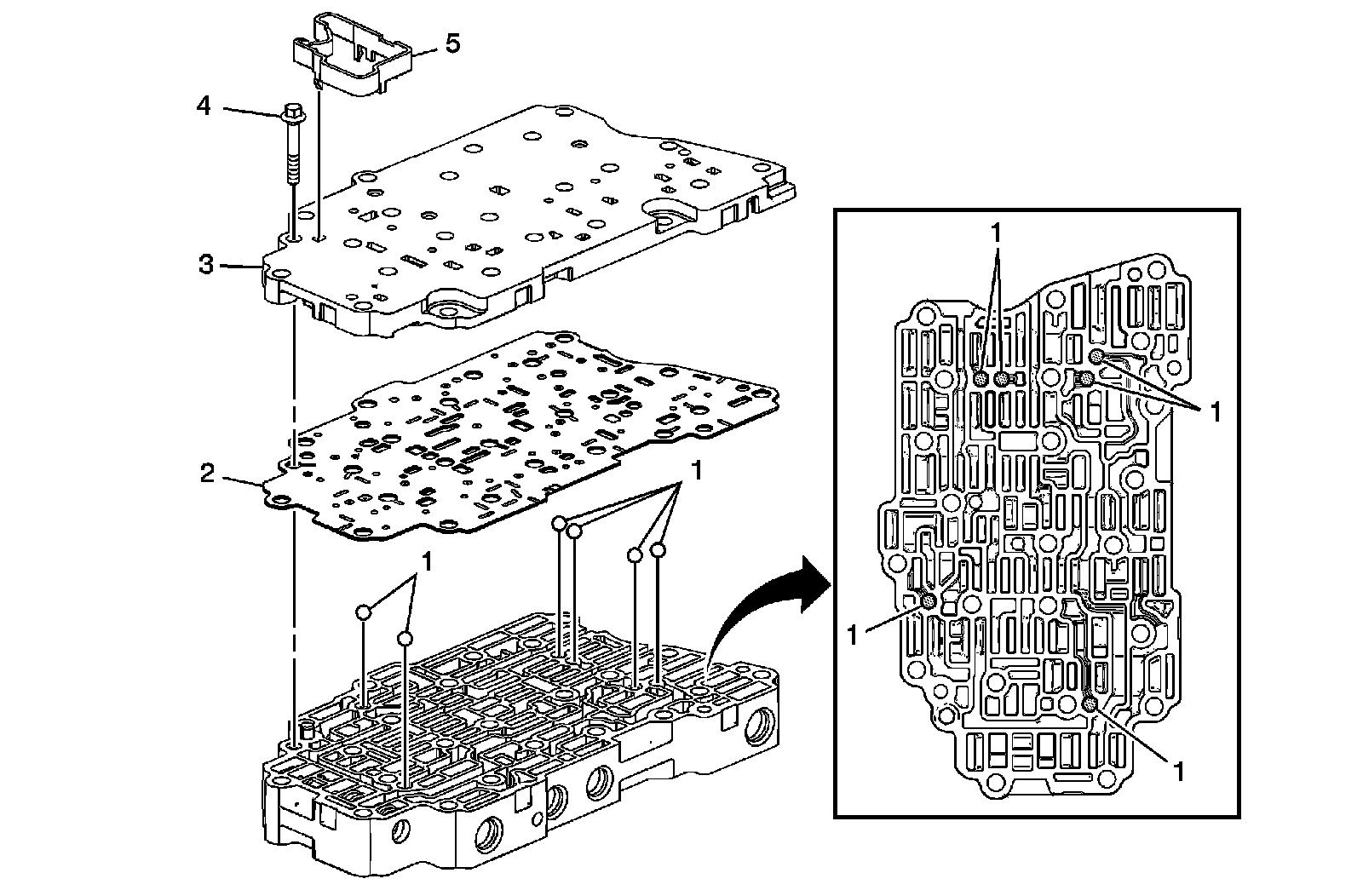

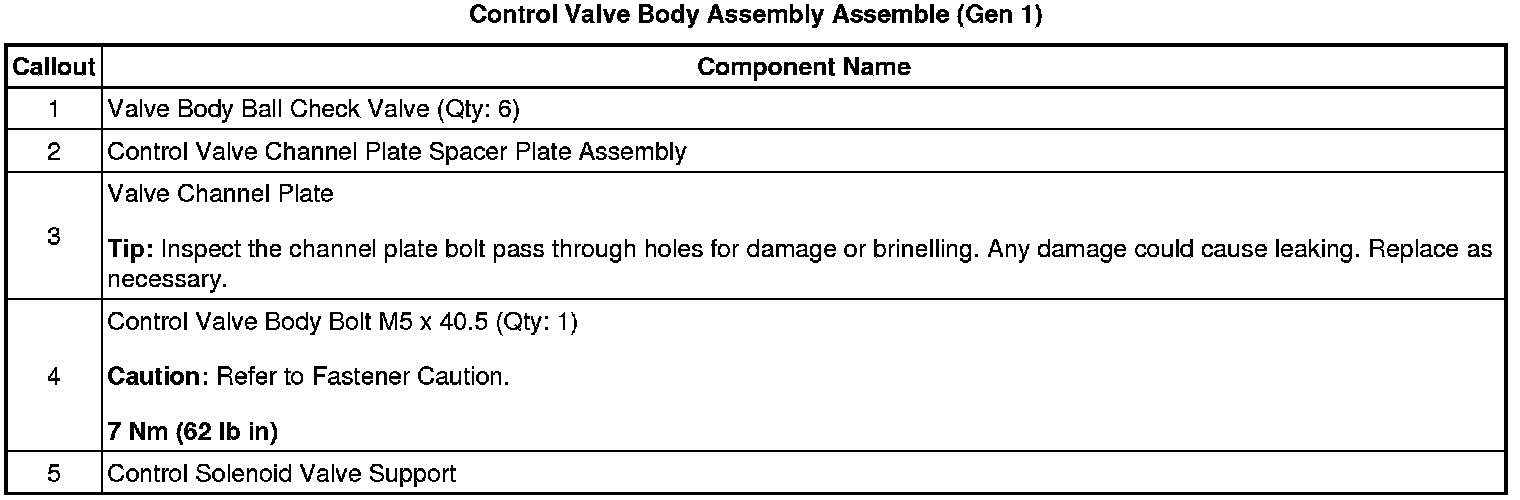

Control Valve Body Assembly Assemble (Gen 1)
Control Valve Body Assembly Assemble (Gen 1)
Control Valve Body Assembly Assemble (Gen 1)
