X51A Fuse Block - Instrument Panel Label

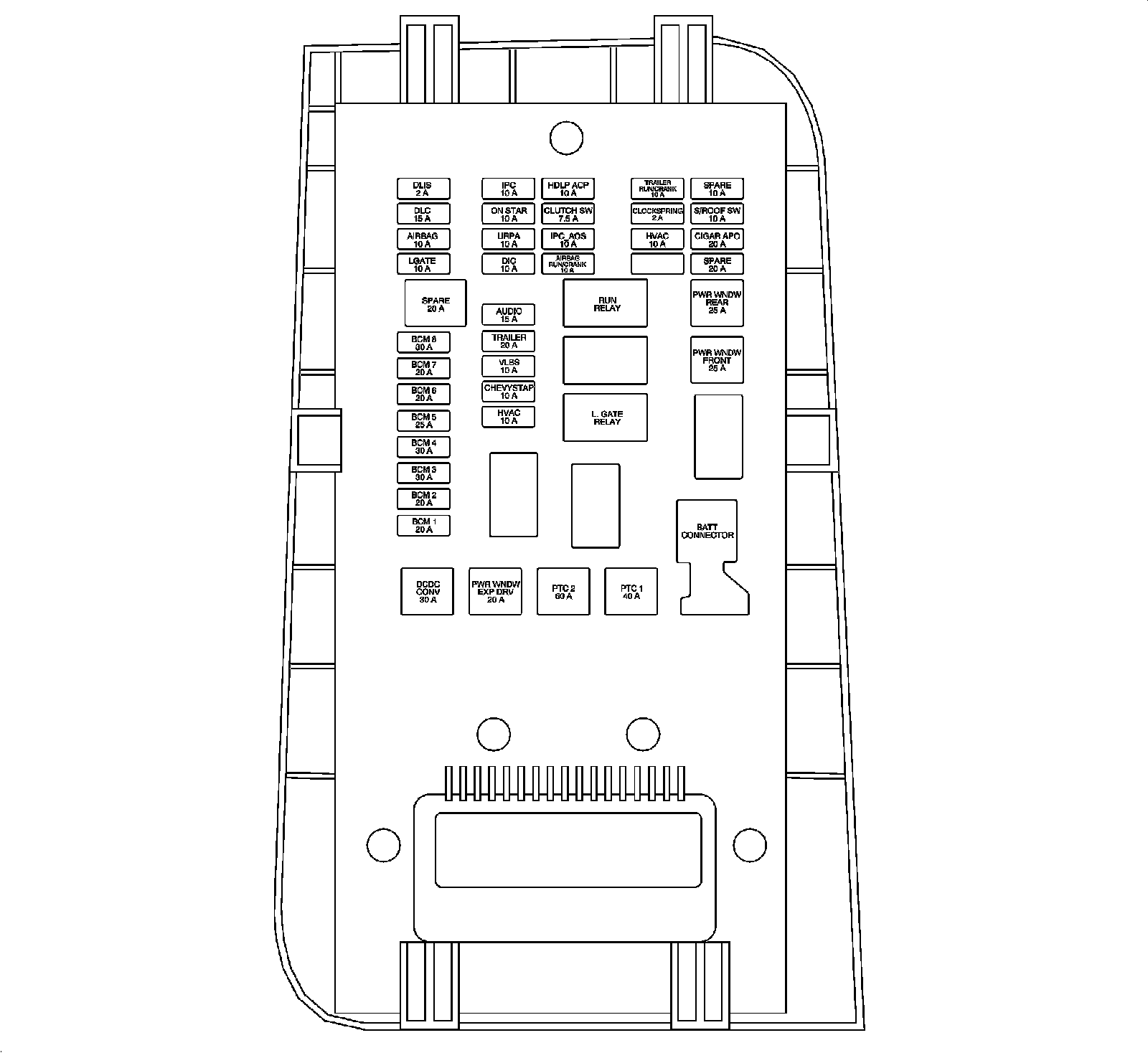

Electrical Center Identification Views

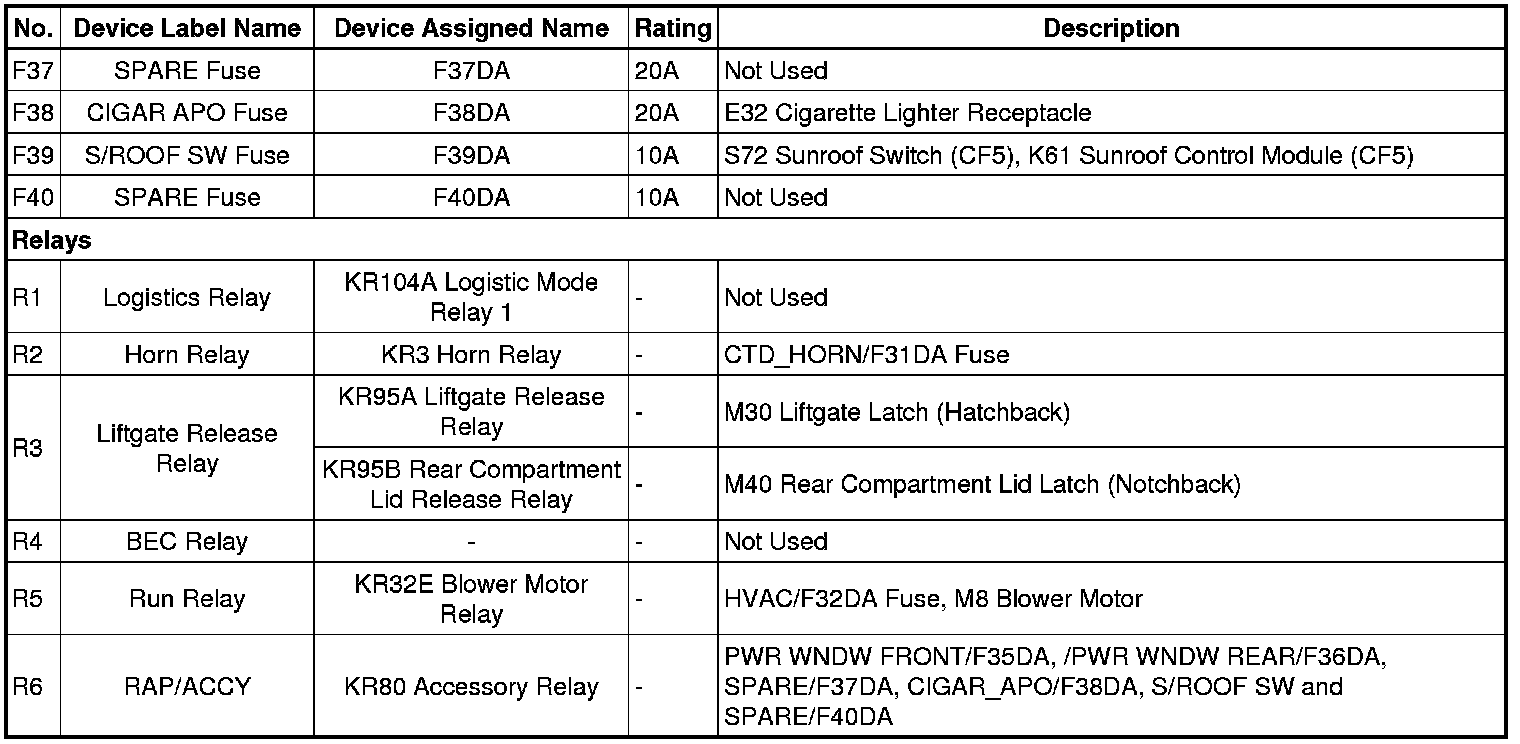

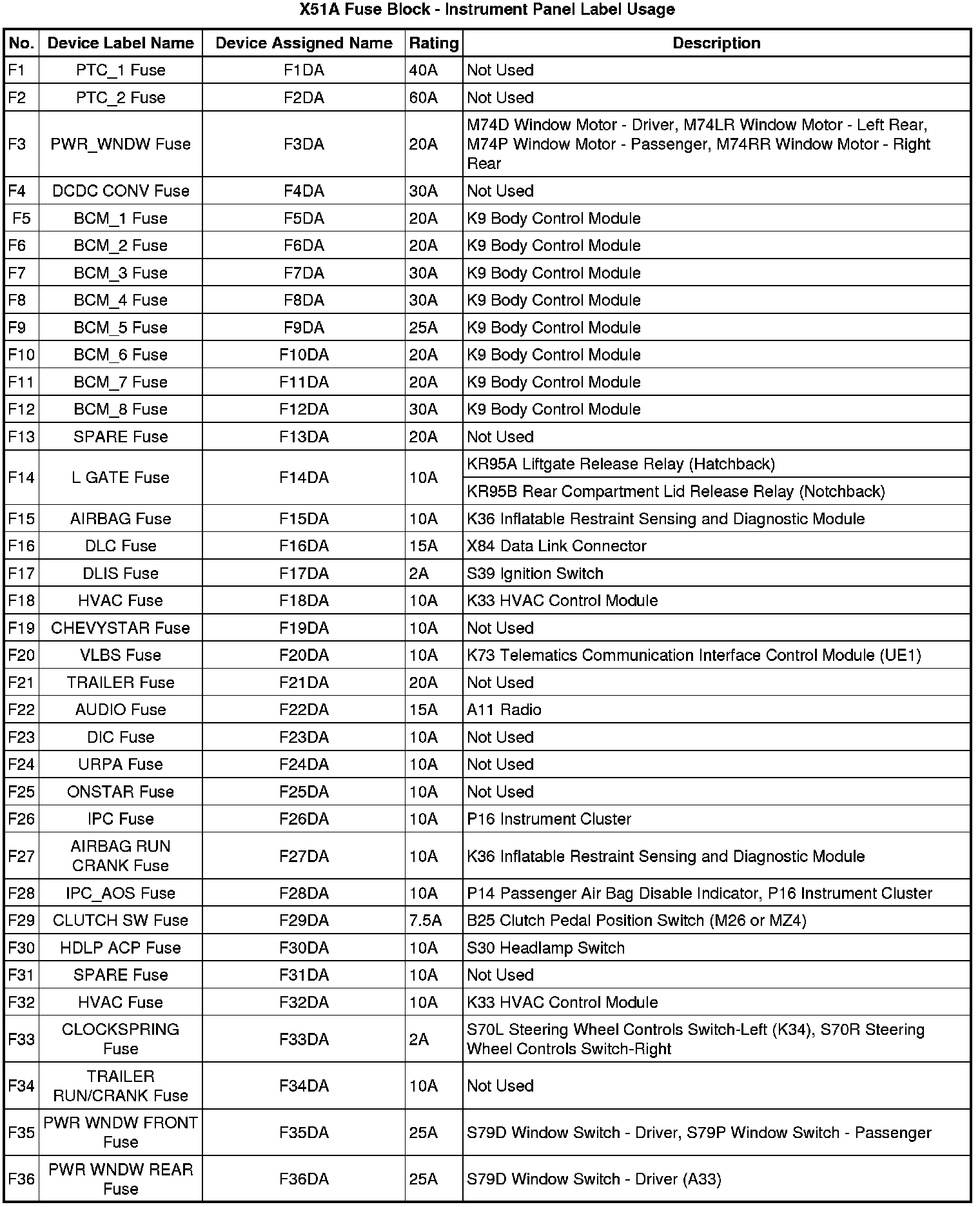

X51A Fuse Block - Instrument Panel Label
