Brake Pedal Position Sensor (MH8 or MH9)

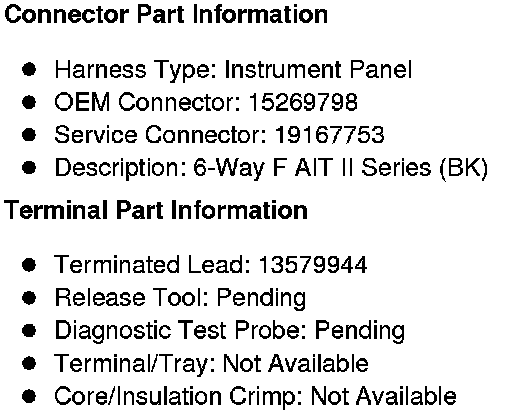

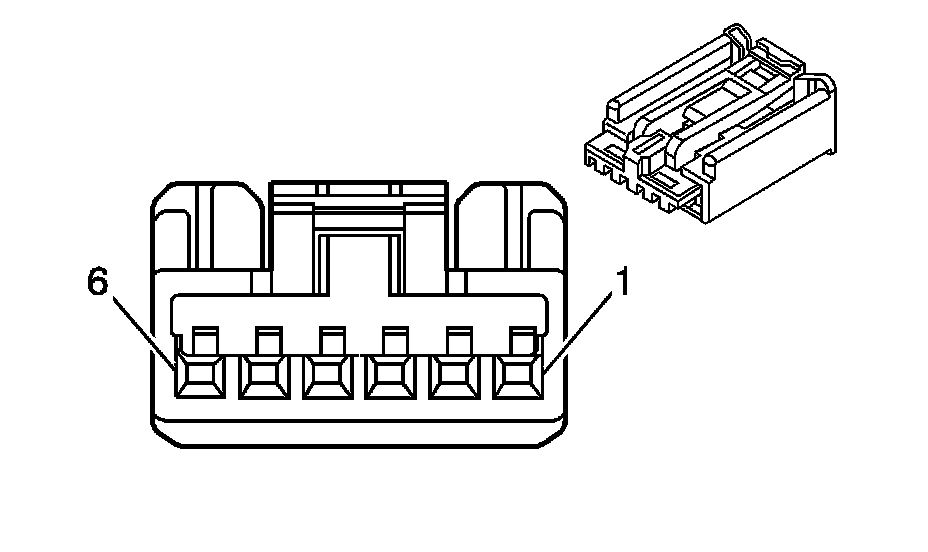

Component Connector End Views

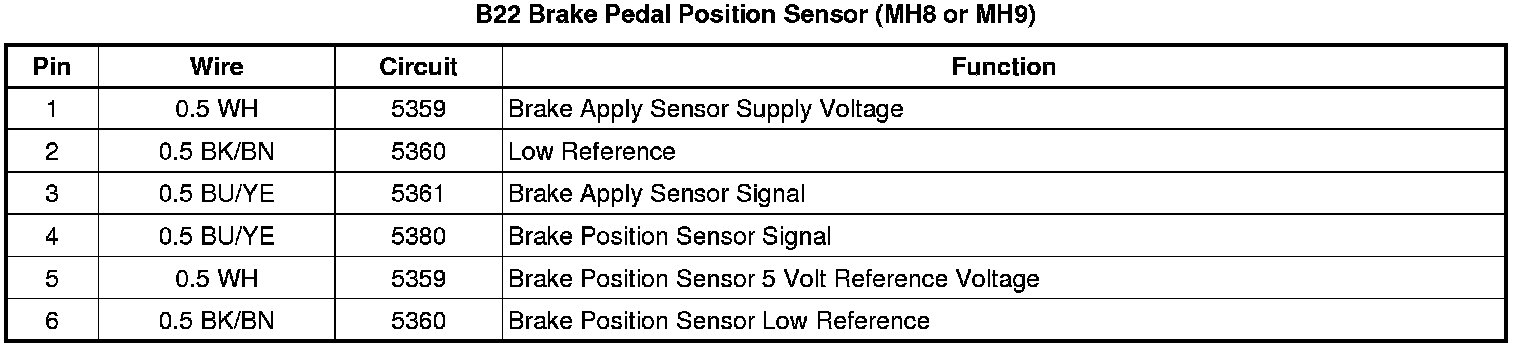

B22 Brake Pedal Position Sensor (MH8 or MH9)
