Luggage Compartment Components (Notchback)




Luggage Compartment/Rear of Vehicle Component Views

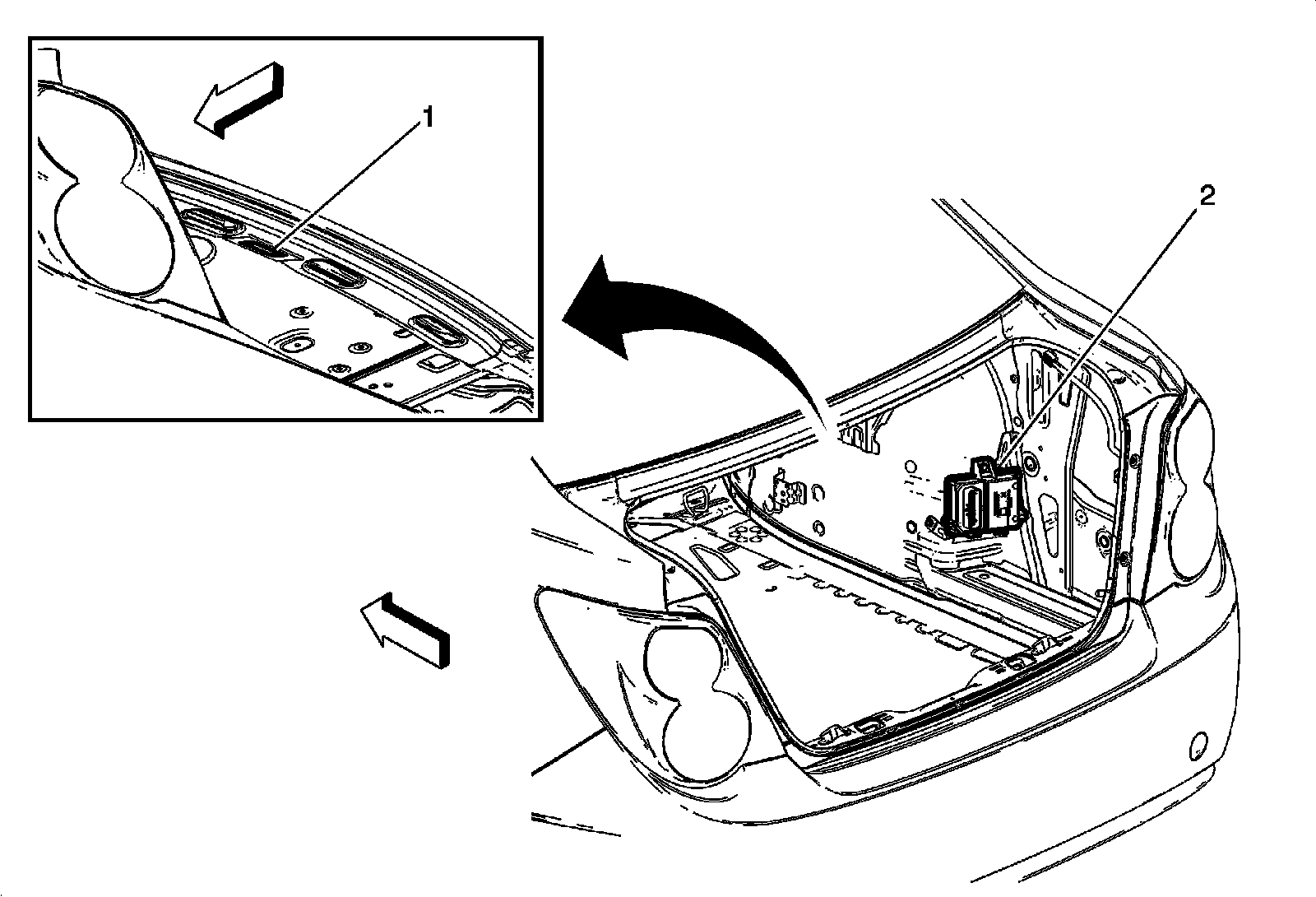

Luggage Compartment Components (Notchback)





1 - E8S Rear Compartment Courtesy Lamp

2 - K27 Fuel Pump Control Module
