Left Luggage Compartment Harness Routing (Hatchback)

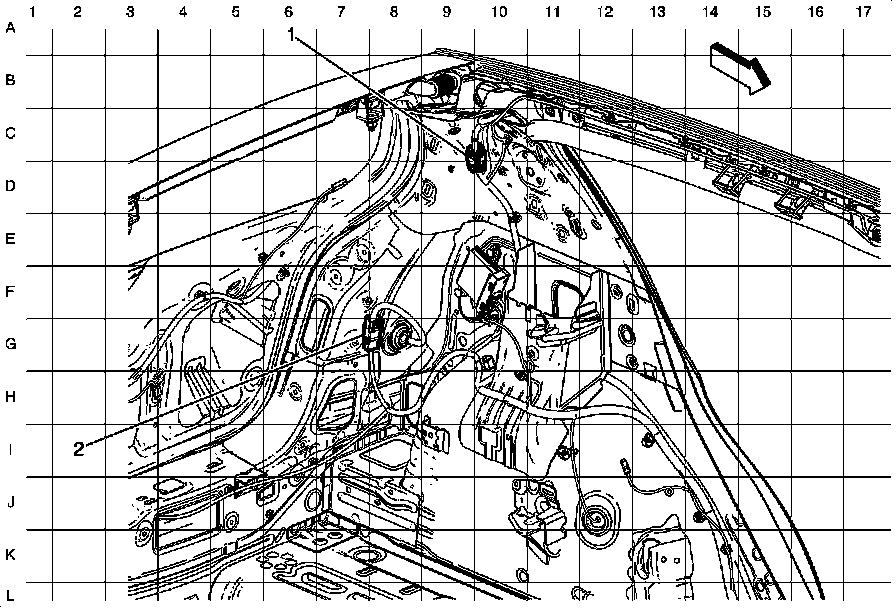

Harness Routing Views

Left Luggage Compartment Harness Routing (Hatchback)





1 - X900

2 - X405
