Right Front of Engine Components

Powertrain Component Views

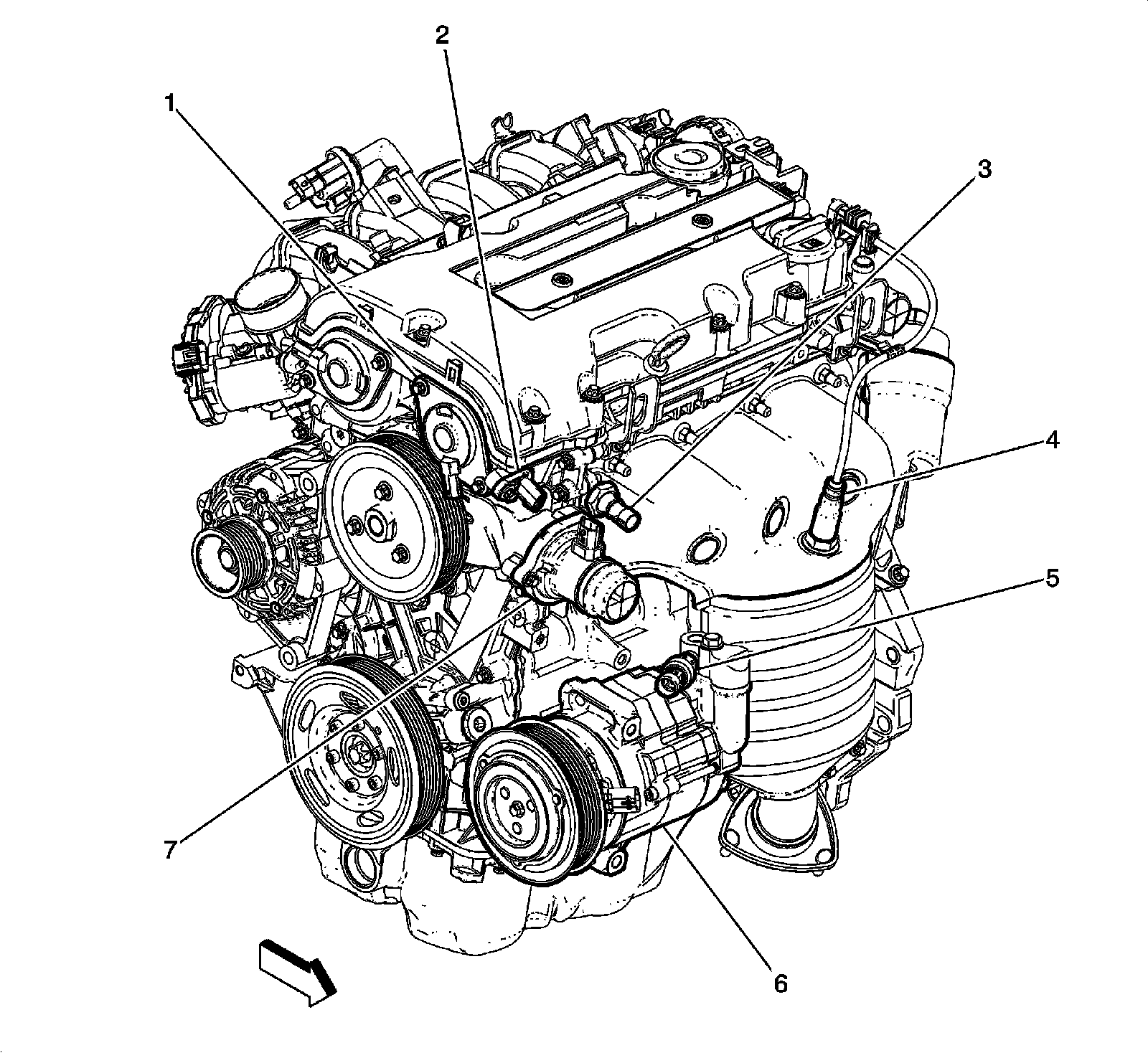

Right Front of Engine Components - 1.4L (LUV)





1 - Q6E Camshaft Position Actuator Solenoid Valve - Exhaust

2 - B23E Camshaft Position Sensor - Exhaust

3 - B37 Engine Oil Pressure Switch

4 - B52A Heated Oxygen Sensor 1

5 - B1 A/C Refrigerant Pressure Sensor (C60)

6 - Q2 A/C Compressor Clutch (C60)

7 - E41 Engine Coolant Thermostat Heater
