Timing Cover: Service and Repair

Engine Front Cover with Oil Pump Replacement

Removal Procedure

1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection Battery Negative Cable Disconnection and Connection.

2. Set the engine to TDC. Refer to Camshaft Timing Chain Inspection Service and Repair.

3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair.

4. Remove the front wheelhouse liner extension, right side. Refer to Front Wheelhouse Liner Inner Front Extension Replacement .

5. Remove the air conditioning compressor. Refer to Air Conditioning Compressor Replacement (LDE/LUW) Removal and ReplacementAir Conditioning Compressor Replacement (LUV) Removal and Replacement.

6. Remove the air conditioning compressor bracket. Refer to Air Conditioning Compressor Bracket Removal Service and Repair.

7. Remove the crankshaft balancer. Refer to Crankshaft Balancer Replacement Service and Repair.

8. Remove the oil pan. Refer to Oil Pan Replacement Service and Repair.

9. Lower vehicle.

10. Remove the drive belt tensioner. Refer to Drive Belt Tensioner Replacement Service and Repair.

11. Remove the generator from above. Refer to Generator Replacement (LUV) Generator ReplacementGenerator Replacement (LUW) Generator Replacement.

12. Remove the water pump pulley and the water pump. Refer to Water Pump Replacement (LUV) Service and RepairWater Pump Replacement (LUW) Service and Repair.

13. Remove the camshaft position actuator solenoid valves. Refer to Camshaft Position Actuator Solenoid Valve Removal Service and Repair.

14. Loosen the camshaft sprocket bolts until the camshaft position exciter wheels are free to rotate. Refer to Camshaft Timing Chain Adjustment Service and Repair.

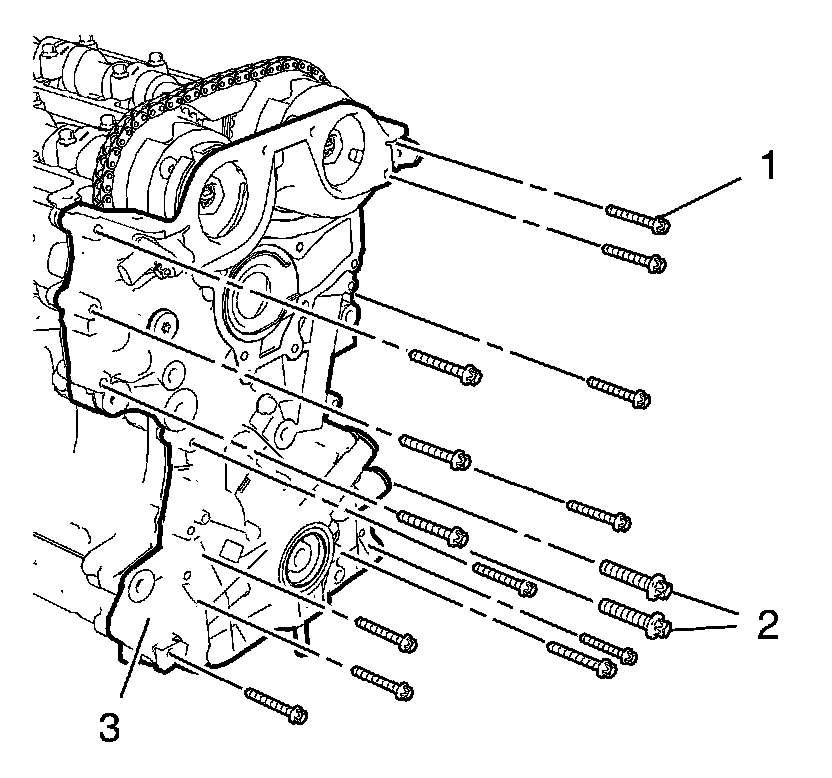

15. Remove the 13 engine front cover bolts M6 (1).

16. Remove the 2 engine front cover bolts M10 (2).

17. Remove the engine front cover (3).

Note:
Removal of timing chain is necessary to get access to engine front cover gasket.

18. Remove the camshaft timing chain. Refer to Camshaft Timing Chain Replacement Service and Repair.





19. Remove the engine front cover gasket (1).

20. Remove the intake and exhaust camshaft position sensors from the engine front cover. Refer to Camshaft Position Sensor Replacement Service and Repair.

Installation Procedure

1. Install the intake and exhaust camshaft position sensors to the engine front cover. Refer to Camshaft Position Sensor Replacement Service and Repair.

2. Clean the engine front cover sealing surfaces on engine block and cylinder head.





Note:
The thickness of the sealing bead should be 2 mm (0.0787 in).

3. Apply sealing compound to the shown areas (1) and (2). Refer to Adhesives, Fluids, Lubricants, and Sealers Adhesives, Fluids, Lubricants, and Sealers.





Note:
Mind the guide sleeves.

4. Install a NEW engine front cover gasket (1).

5. Install the timing chain. Refer to Camshaft Timing Chain Replacement Service and Repair.





Note:
Mind the guide sleeves when installing the engine front cover. The complete installation procedure of the engine front cover should not take longer than 10 minutes.

6. Install the engine front cover (3).

7. Install the 13 engine front cover bolts M6 (1).

8. Install the 2 engine front cover bolts M10 (2).

Caution:
Refer to Fastener Caution Fastener Caution.

9. Tighten the 13 engine front cover bolts M6 to 8 Nm (71 lb in).

10. Tighten the 2 engine front cover bolts M10 to 35 Nm (26 lb ft).

Note:
Engine should be adjusted and fixed in TDC position.

11. Tighten the camshaft sprockets, install the upper timing chain guide and remove all special tools. Refer to Camshaft Timing Chain Adjustment Service and Repair.

12. Install the 2 camshaft position actuator solenoid valves. Refer to Camshaft Position Actuator Solenoid Valve Replacement Service and Repair.

13. Install the water pump and the water pump pulley. Refer to Water Pump Replacement (LUV) Service and RepairWater Pump Replacement (LUW) Service and Repair.

14. Install the generator from above. Refer to Generator Replacement (LUV) Generator ReplacementGenerator Replacement (LUW) Generator Replacement.

15. Install the drive belt tensioner. Refer to Drive Belt Tensioner Replacement Service and Repair.

16. Install the air conditioning compressor bracket. Refer to Air Conditioning Compressor Bracket Installation Service and Repair.

17. Install the air conditioning compressor. Refer to Air Conditioning Compressor Replacement (LDE/LUW) Removal and ReplacementAir Conditioning Compressor Replacement (LUV) Removal and Replacement.

18. Install the crankshaft balancer. Refer to Crankshaft Balancer Replacement Service and Repair.

19. Install the drive belt. Refer to Drive Belt Replacement Service and Repair.

20. Install the engine mount bracket. Refer to Engine Mount Bracket Replacement - Right Side Engine Mount Bracket Replacement - Right Side.

21. Install the engine mount. Refer to Engine Mount Replacement - Right Side Engine Mount Replacement - Right Side.

22. Install the camshaft cover. Refer to Camshaft Cover Replacement Service and Repair.

23. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement Service and Repair.

24. Raise the vehicle.

25. Install the oil pan. Refer to Oil Pan Replacement Service and Repair.

26. Install the front wheelhouse liner extension, right side. Refer to Front Wheelhouse Liner Inner Front Extension Replacement .

27. Lower the vehicle.

28. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection Battery Negative Cable Disconnection and Connection.

29. Fill up engine oil. Refer to Engine Oil and Oil Filter Replacement Service and Repair.
