Turbocharger Cleaning and Inspection

Turbocharger Cleaning and Inspection

Cleaning Procedure

1. Clean all sealing surfaces.

2. Clean all threads if necessary.

Inspection Procedure

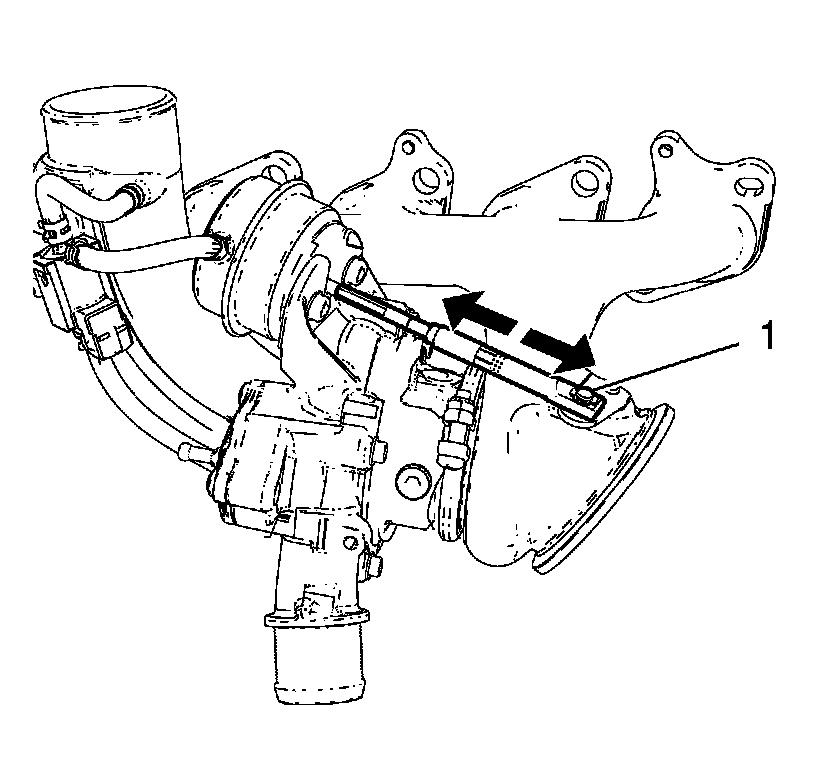

1. Inspect the wastegate regulator mechanism (1) for functionality.

2. Inspect the turbine blades for damage or foreign material.

3. Inspect the turbocharger wastegate regulator vacuum hoses for damage.

4. Inspect the exhaust manifold and the turbocharger for cracks or other damage.

5. Inspect the exhaust manifold mating surface for flatness.
