Throttle Body Installation

Throttle Body Installation

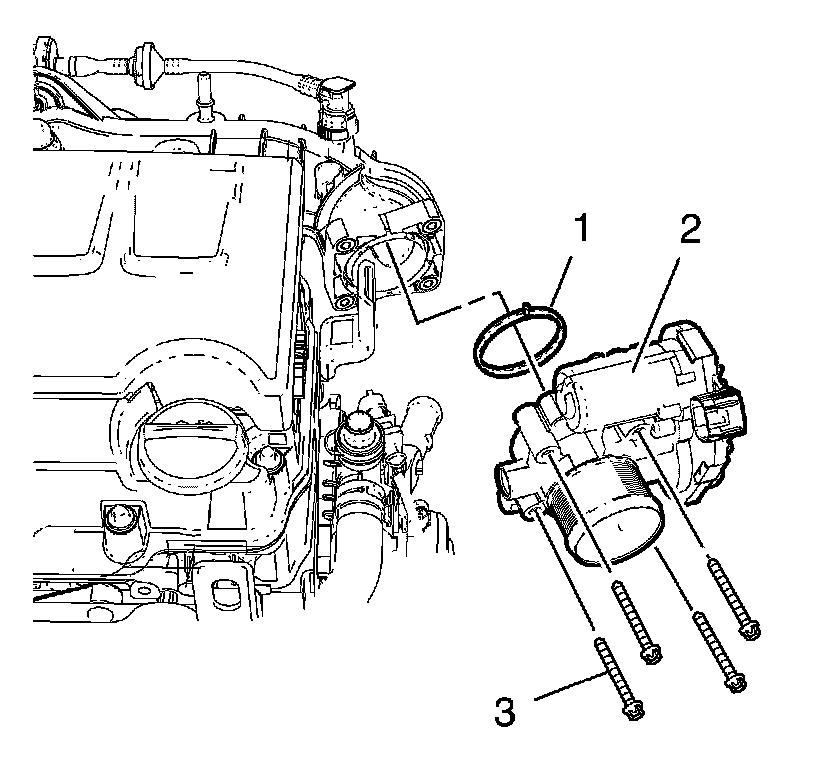

1. Install the throttle body (2) and a NEW throttle body seal ring (1).

Caution:
Refer to Fastener Caution Fastener Caution.

2. Install the 4 throttle body bolts (3) and tighten to 8 Nm (71 lb in).
