Intake Manifold Installation

Intake Manifold Installation

1. Clean the sealing surfaces.

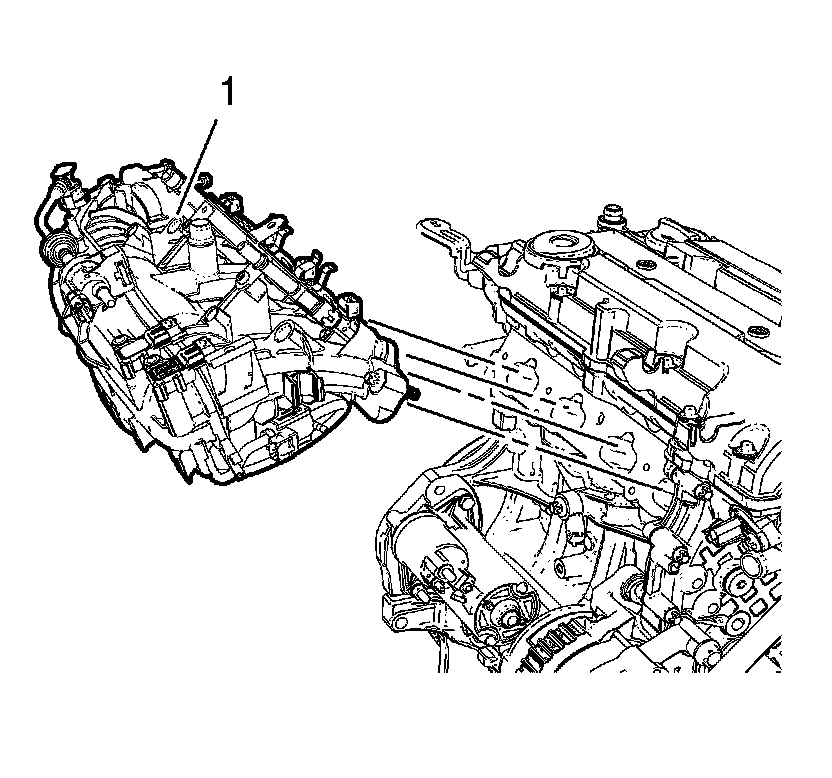

2. Install the intake manifold (1) along with a NEW intake manifold gasket.





Caution:
Refer to Fastener Caution Fastener Caution.

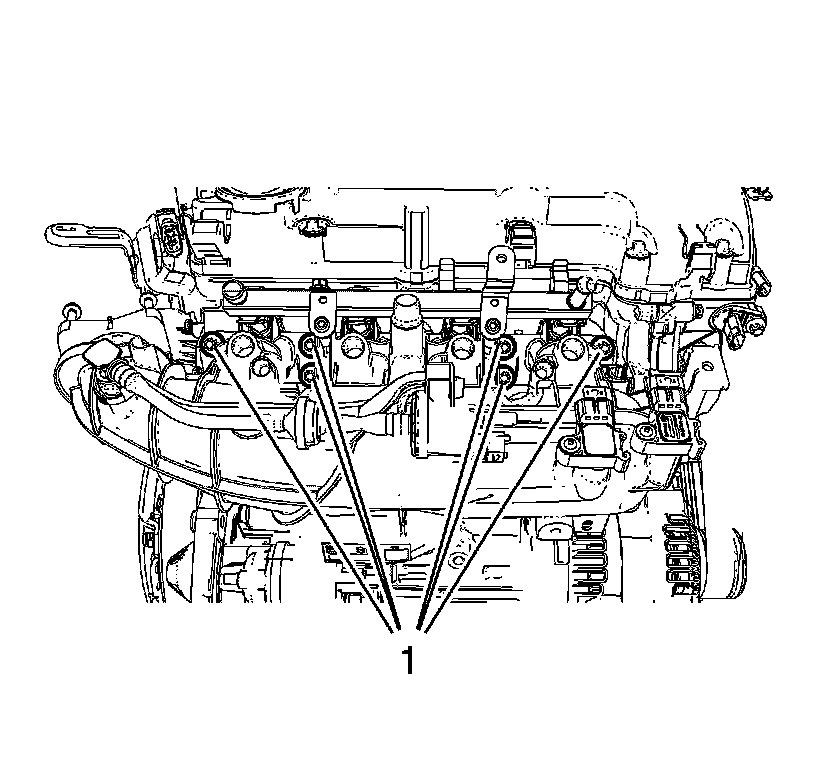

3. Install the 6 intake manifold bolts (1) and tighten to 20 Nm (15 lb ft).
