Engine Block Disassemble

Engine Block Disassemble





1. Remove the knock sensor bolt (3).

2. Remove the knock sensor (2).

3. Remove the 2 cylinder head guide sleeves (1). Use suitable pliers.

4. Remove the 2 transmission guide sleeves (4) and (5). Use suitable pliers.

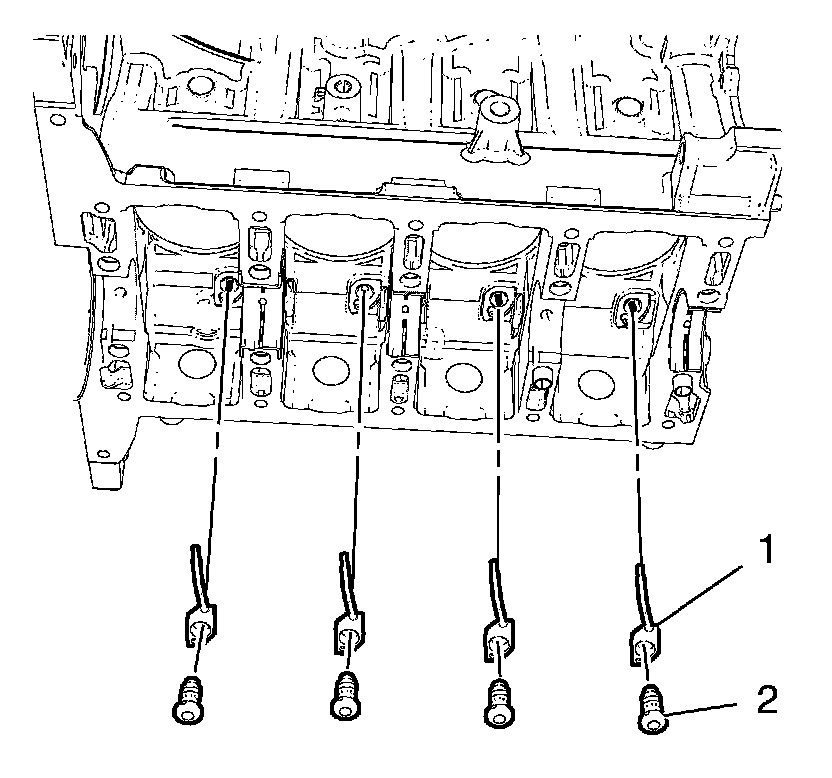

5. Remove the 4 piston oil nozzle bolts (2).

6. Remove the 4 piston oil nozzles (1).
