Rear of Engine Compartment Harness Routing
Rear of Engine Compartment Harness Routing
Harness Routing Views

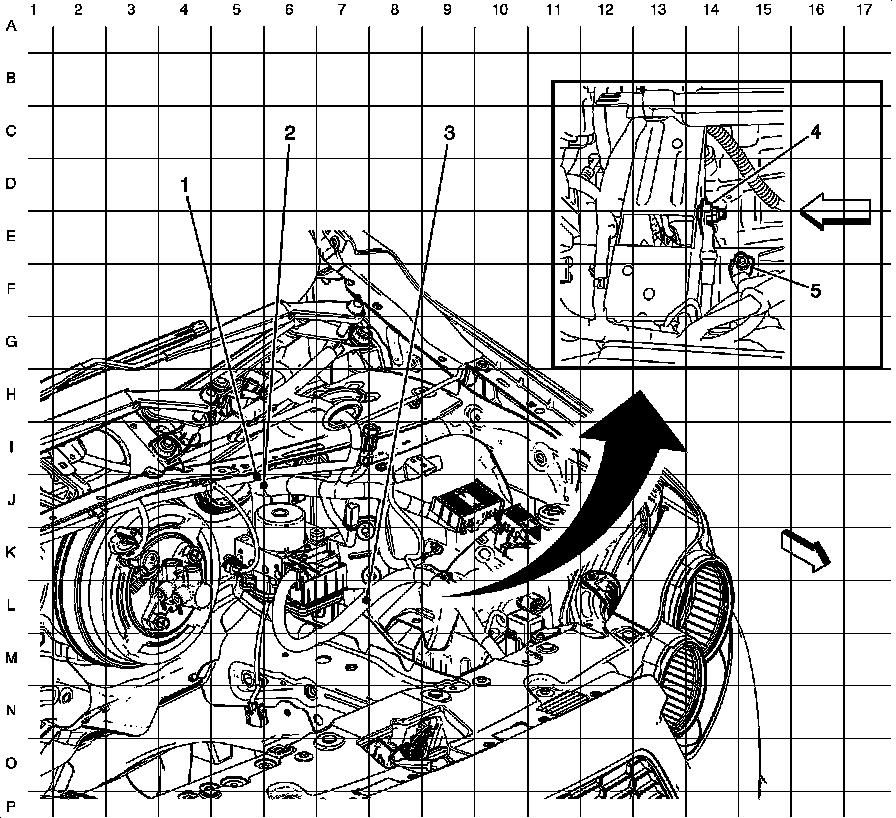

Rear of Engine Compartment Harness Routing
1
- J114
2
- J139
3
- J141
