Interior Lights Schematics




Interior Lights Schematics

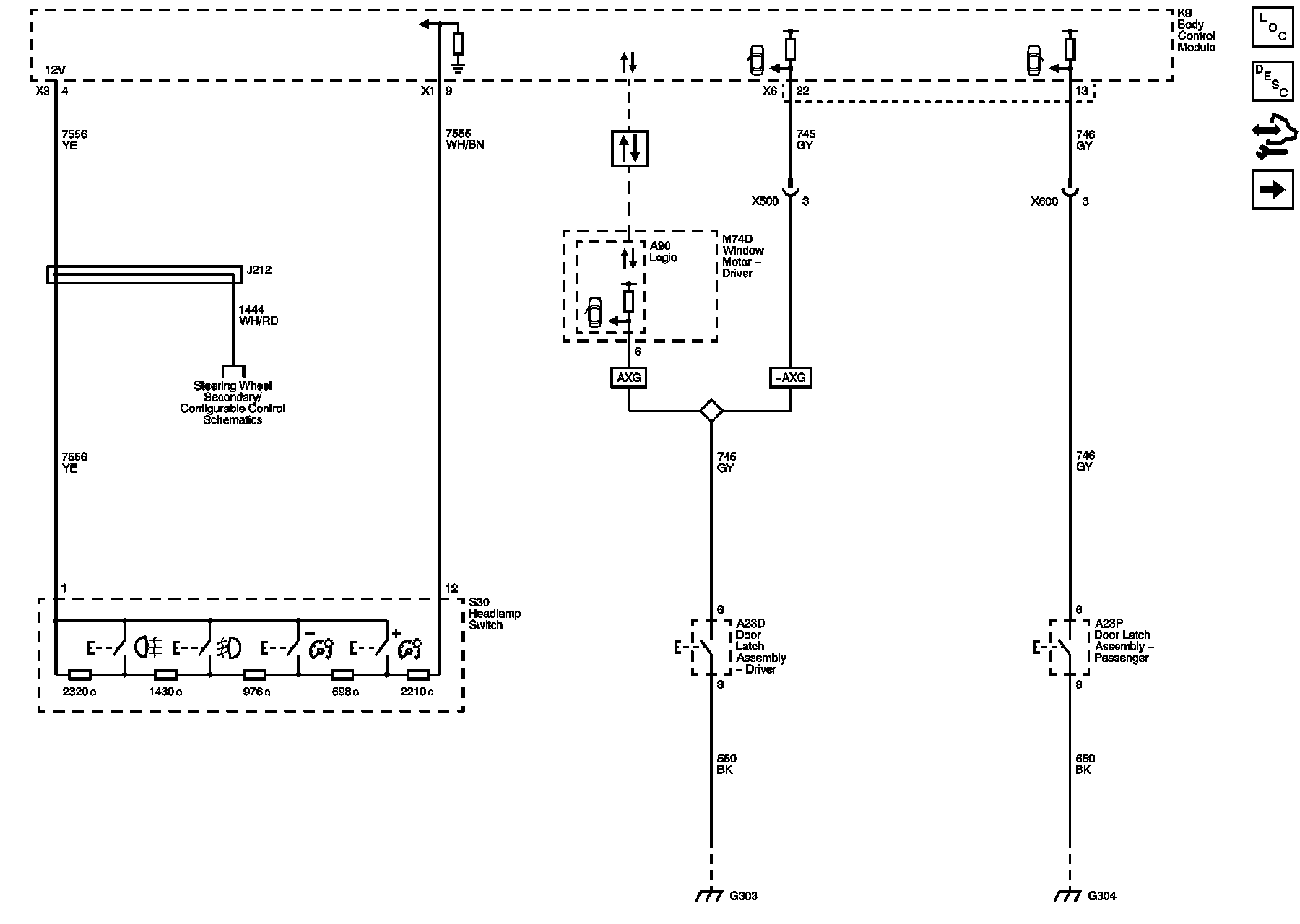

Controls - Headlamp and Front Door Ajar Switches

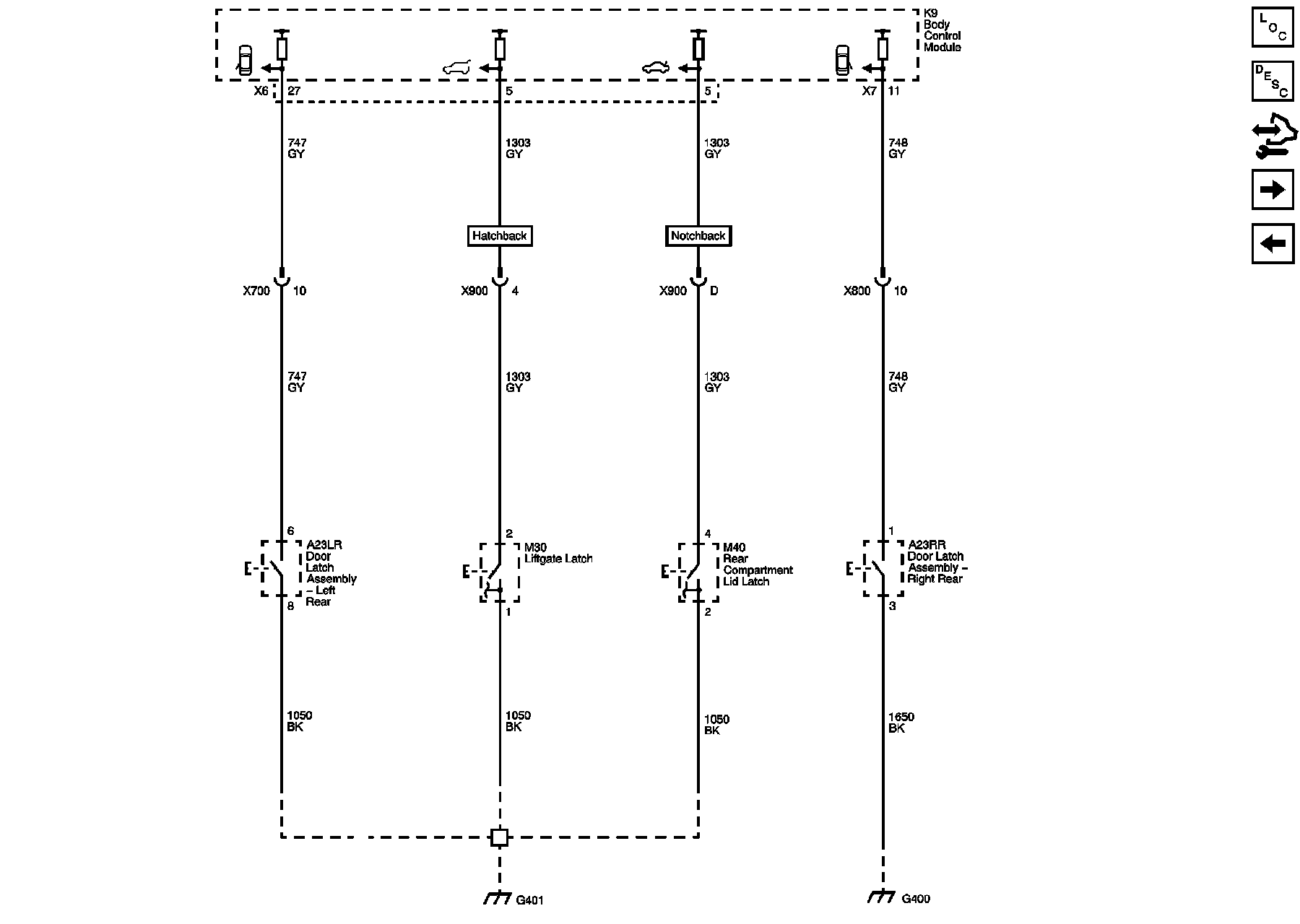

Controls - Rear Compartment and Rear Door Ajar Switches

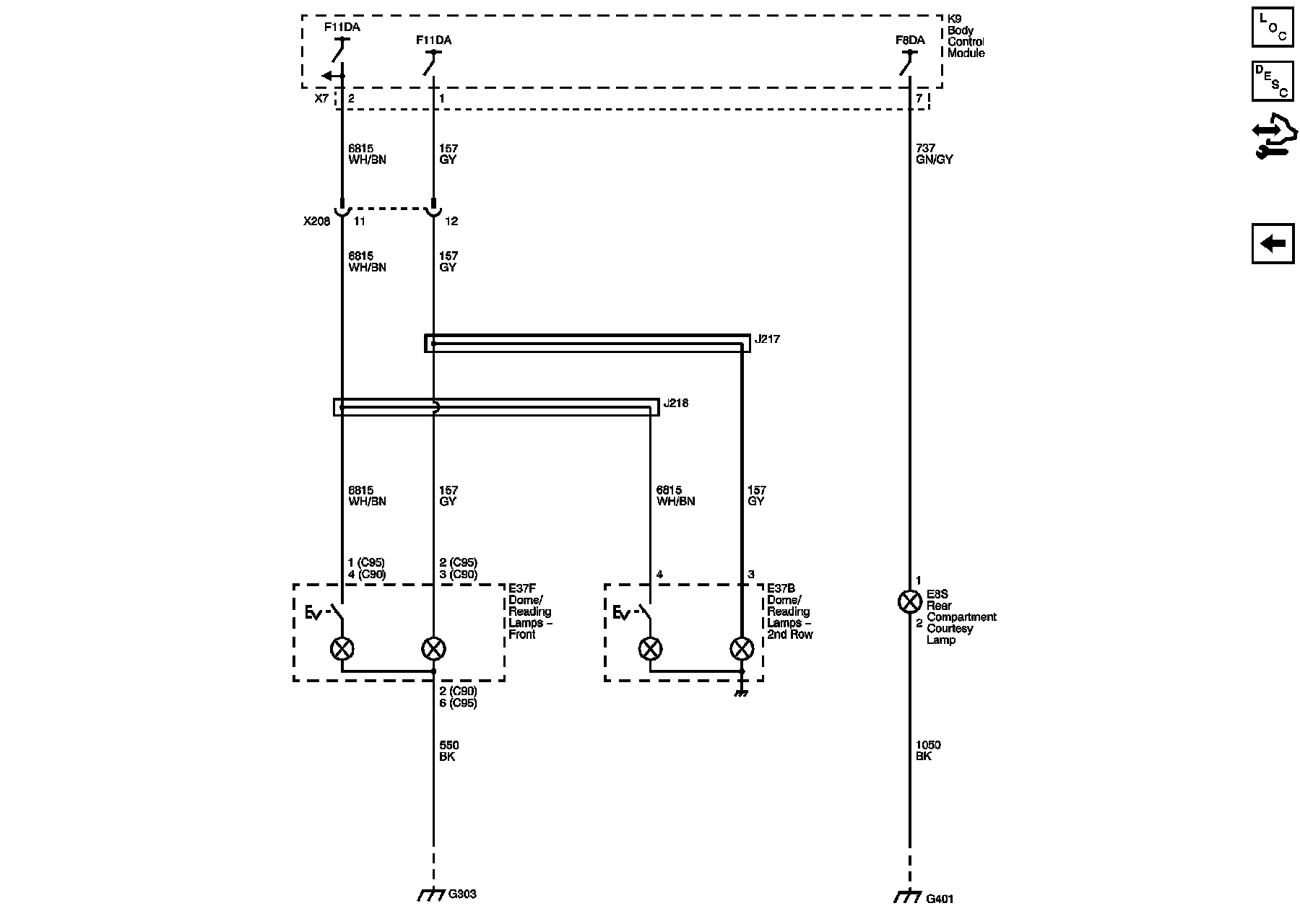

Dome and Rear Compartment Lamps
