Interior Lights Dimming Schematics




Interior Lights Dimming Schematics

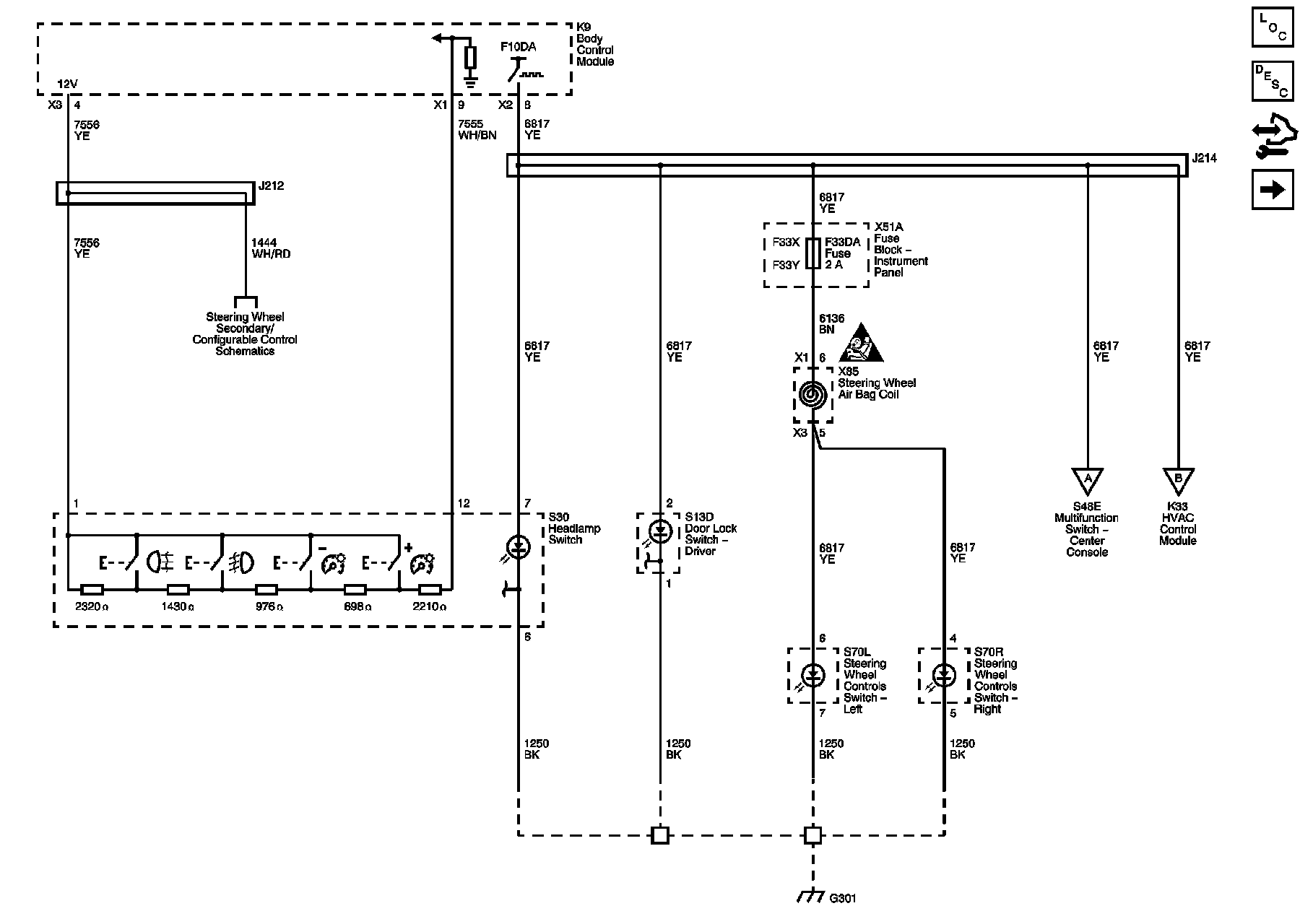

Controls, and Headlamp, Door Lock and Steering Wheel Switches





Center Console, HVAC Module, and Hazard Lamp Switch
