Decklid Harness Routing (Notchback)

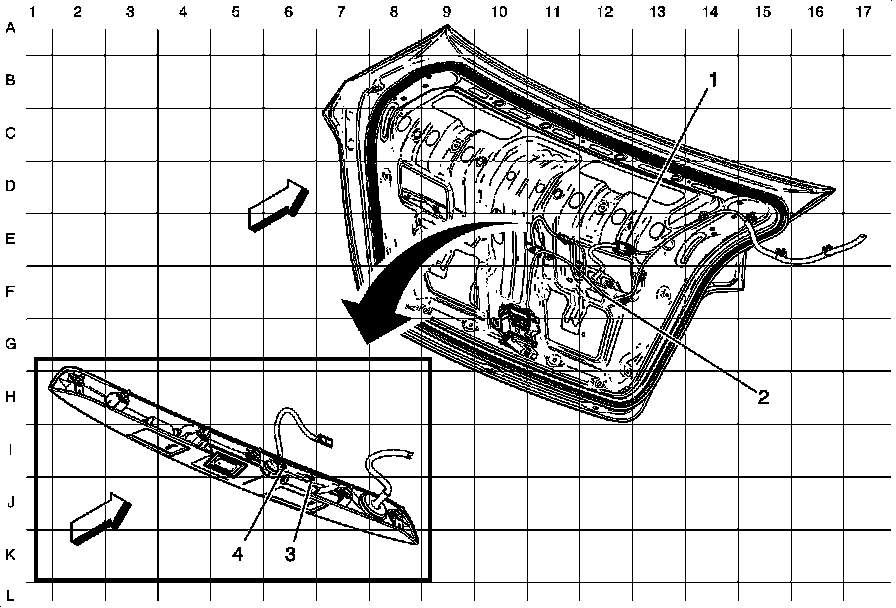

Harness Routing Views

Decklid Harness Routing (Notchback)





1 - X901

2 - J900

3 - J903

4 - J902
