Turbo Boost Sensor
Turbo Boost Sensor

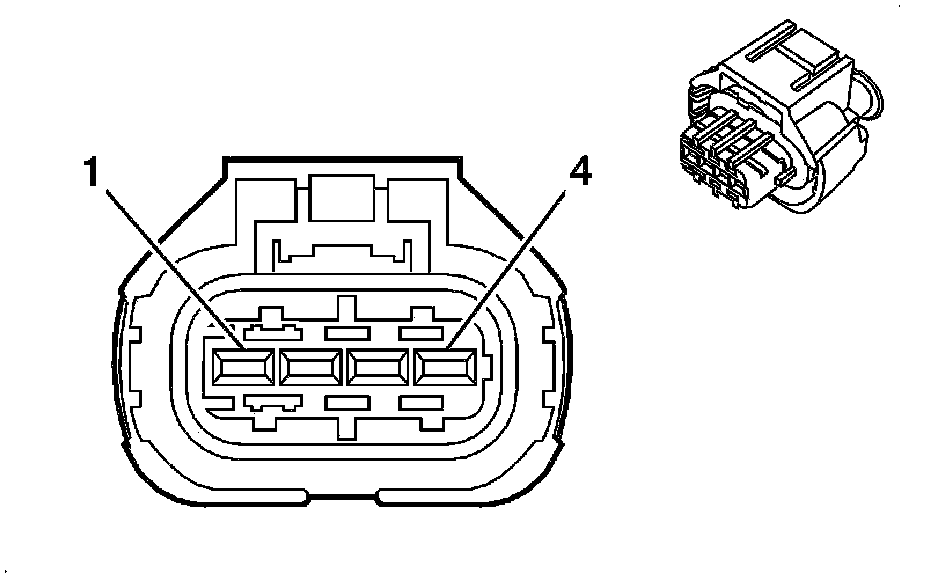

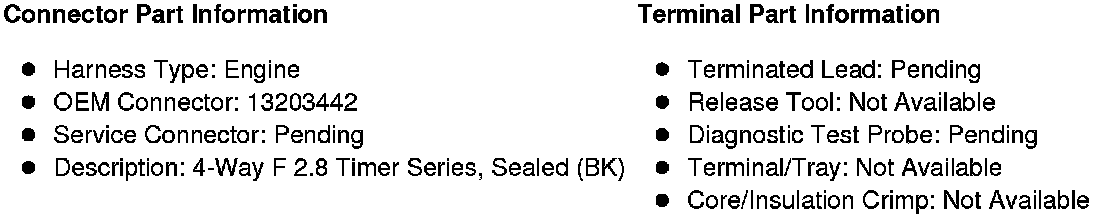

Component Connector End Views

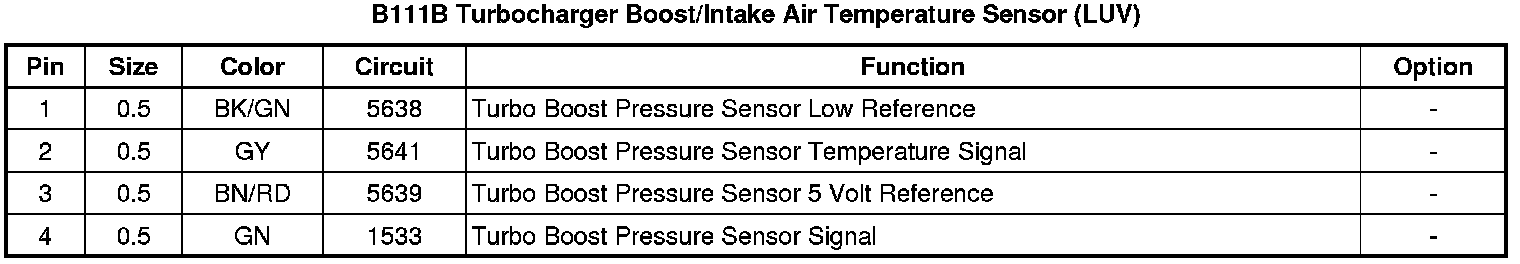

B111B Turbocharger Boost/Intake Air Temperature Sensor (LUV)
