Cellular Phone, Navigation, and Digital Radio Antenna (UE1)
Cellular Phone, Navigation, and Digital Radio Antenna (UE1)

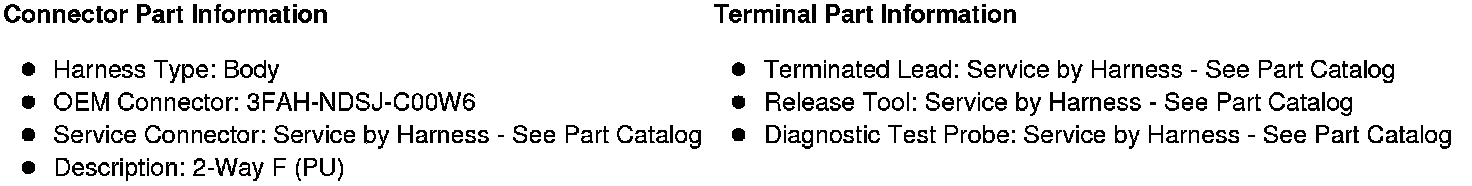

Component Connector End Views

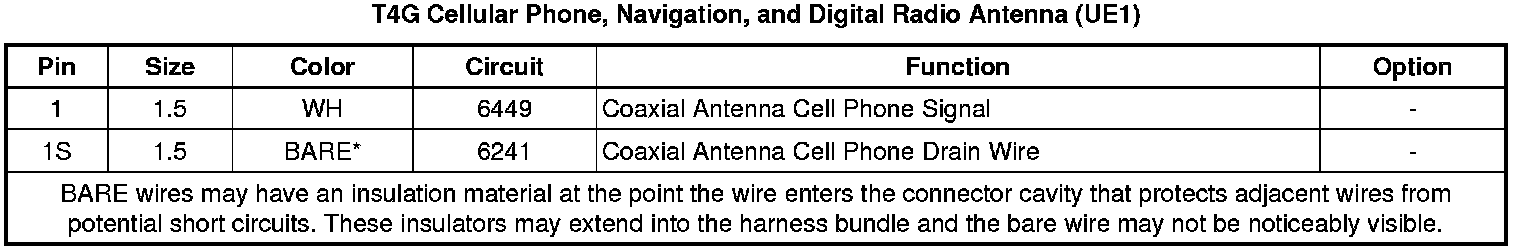

T4G
Cellular Phone
, Navigation, and Digital Radio Antenna (UE1)
