Trunk / Liftgate Latch: Locations




Luggage Compartment/Rear of Vehicle Component Views

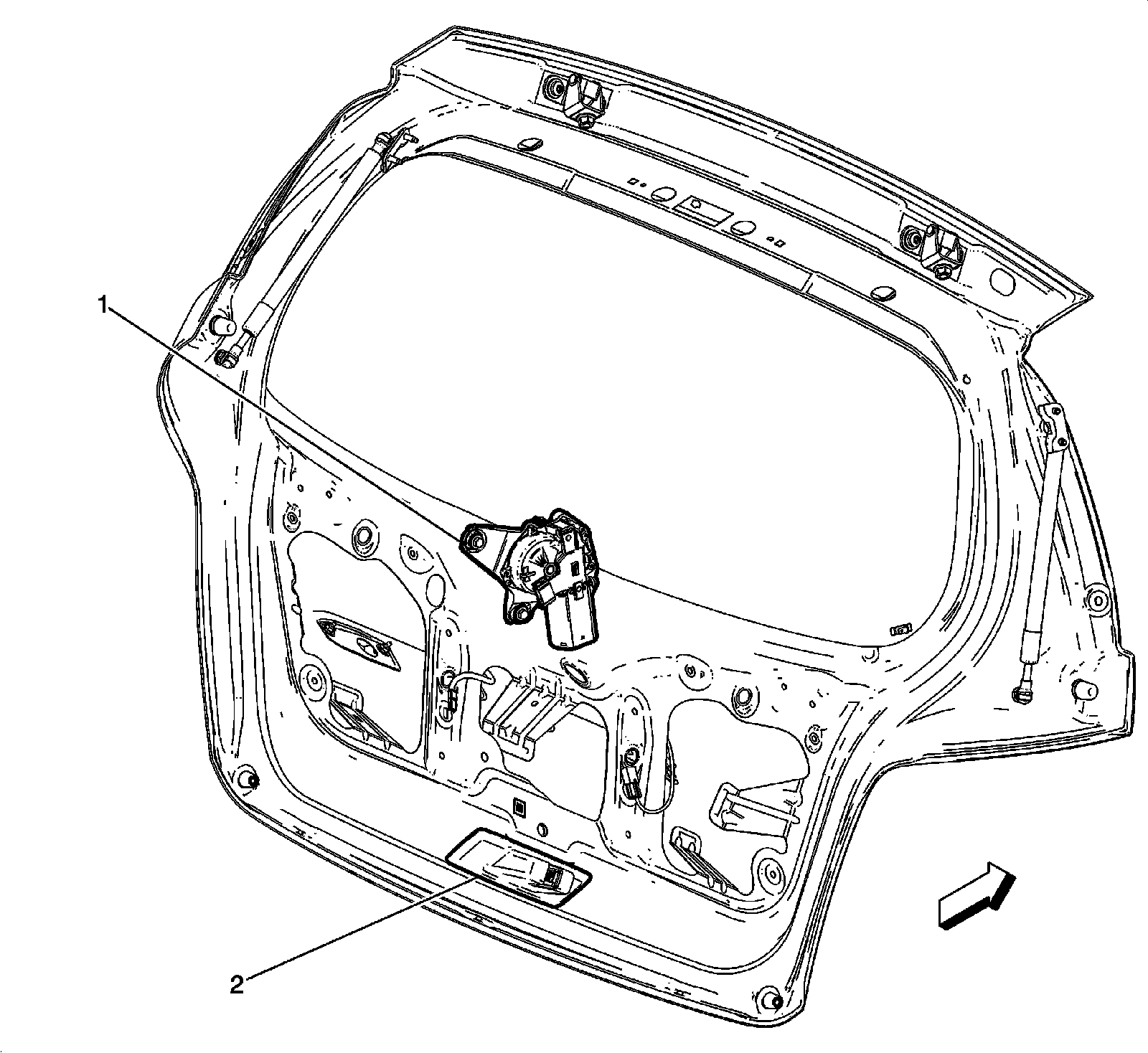

Inside Liftgate Components (Hatchback)





1 - M45 Rear Wiper Motor

2 - M30 Liftgate Latch
