Home >> Chevrolet >> 2013 >> Sonic L4-1.4L Turbo >> Repair and Diagnosis >> Body and Frame >> Application and ID >> Structure Identification (5HB)

Structure Identification (5HB)






Structure Identification (5HB)

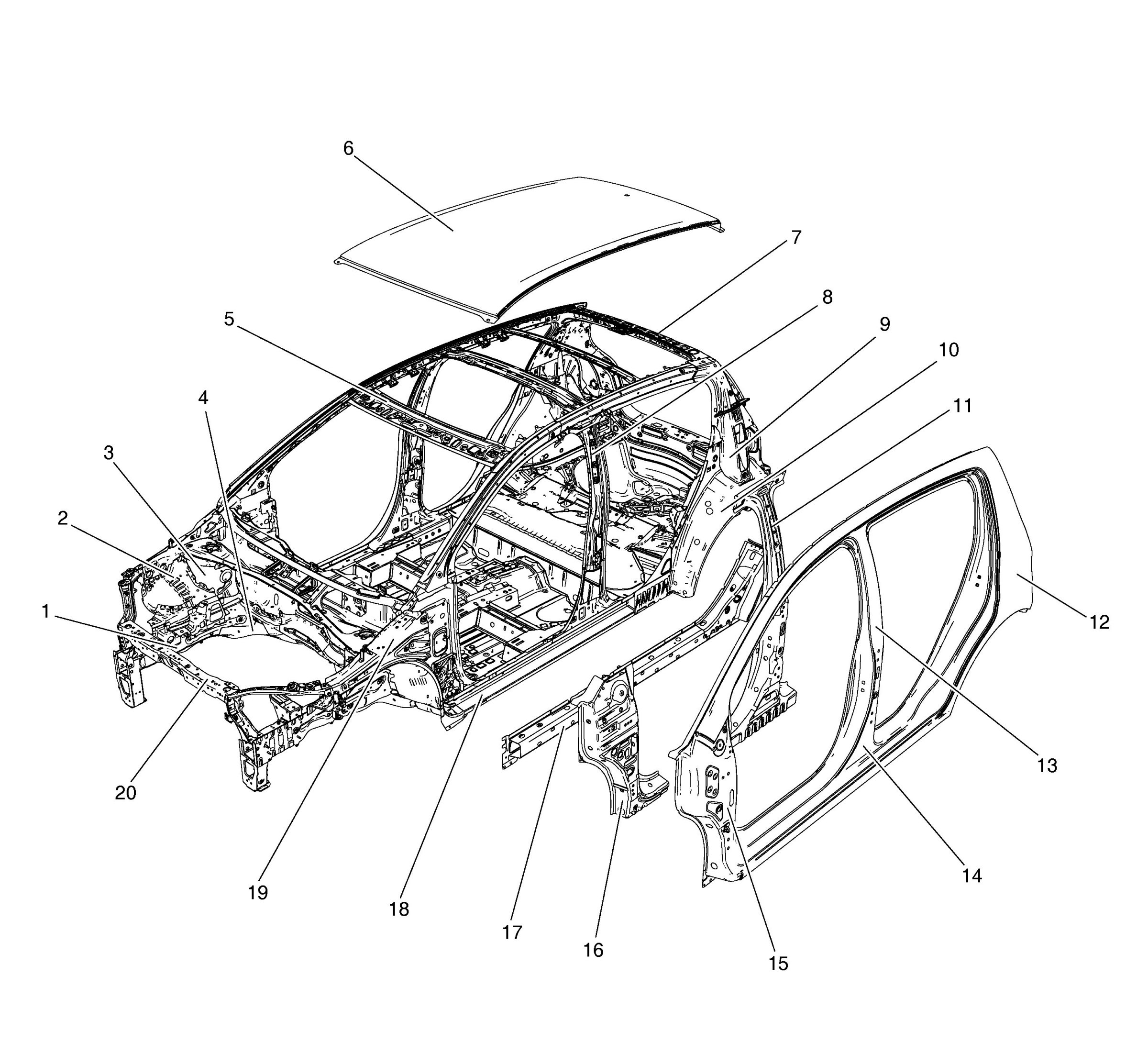

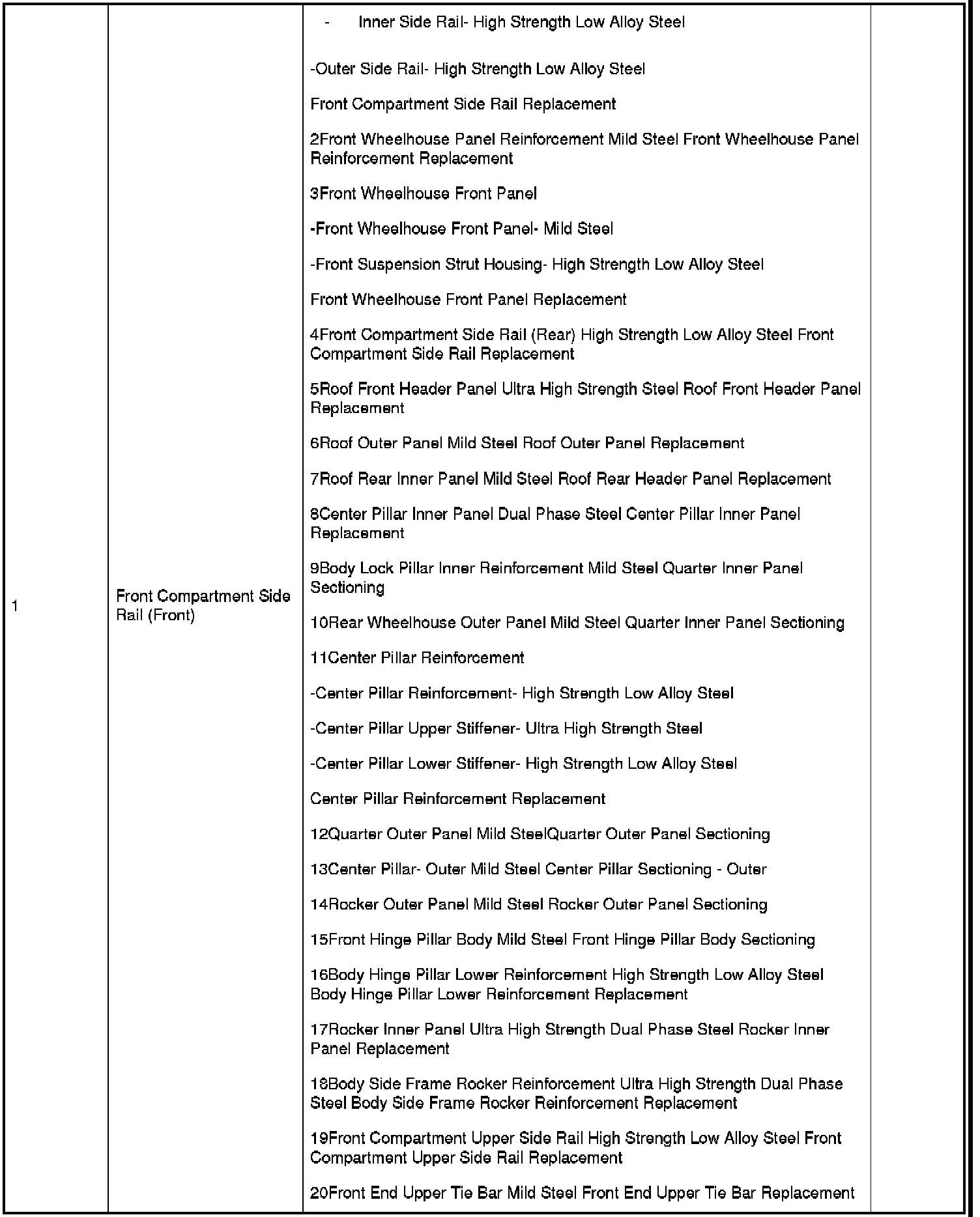

Front View

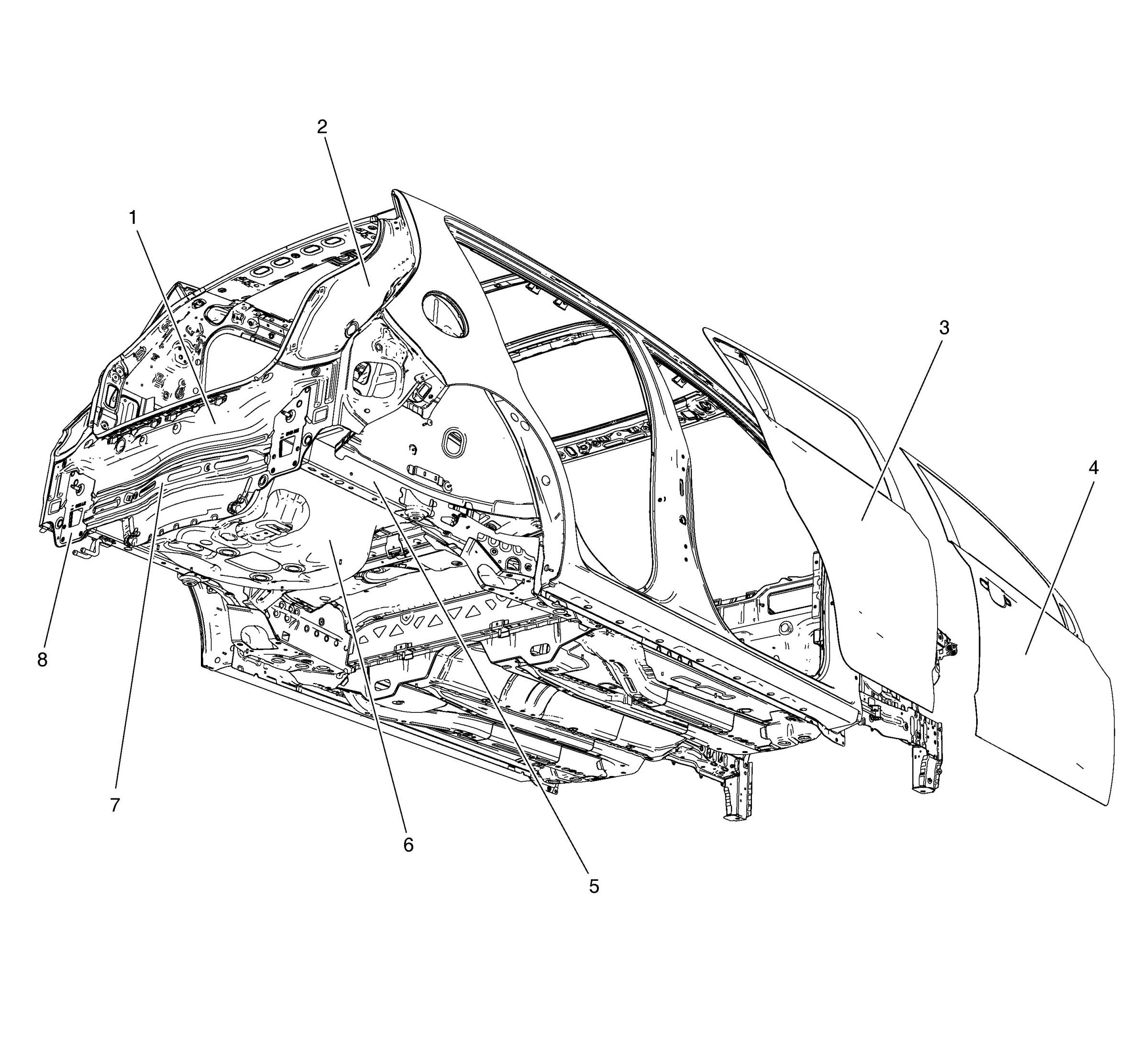

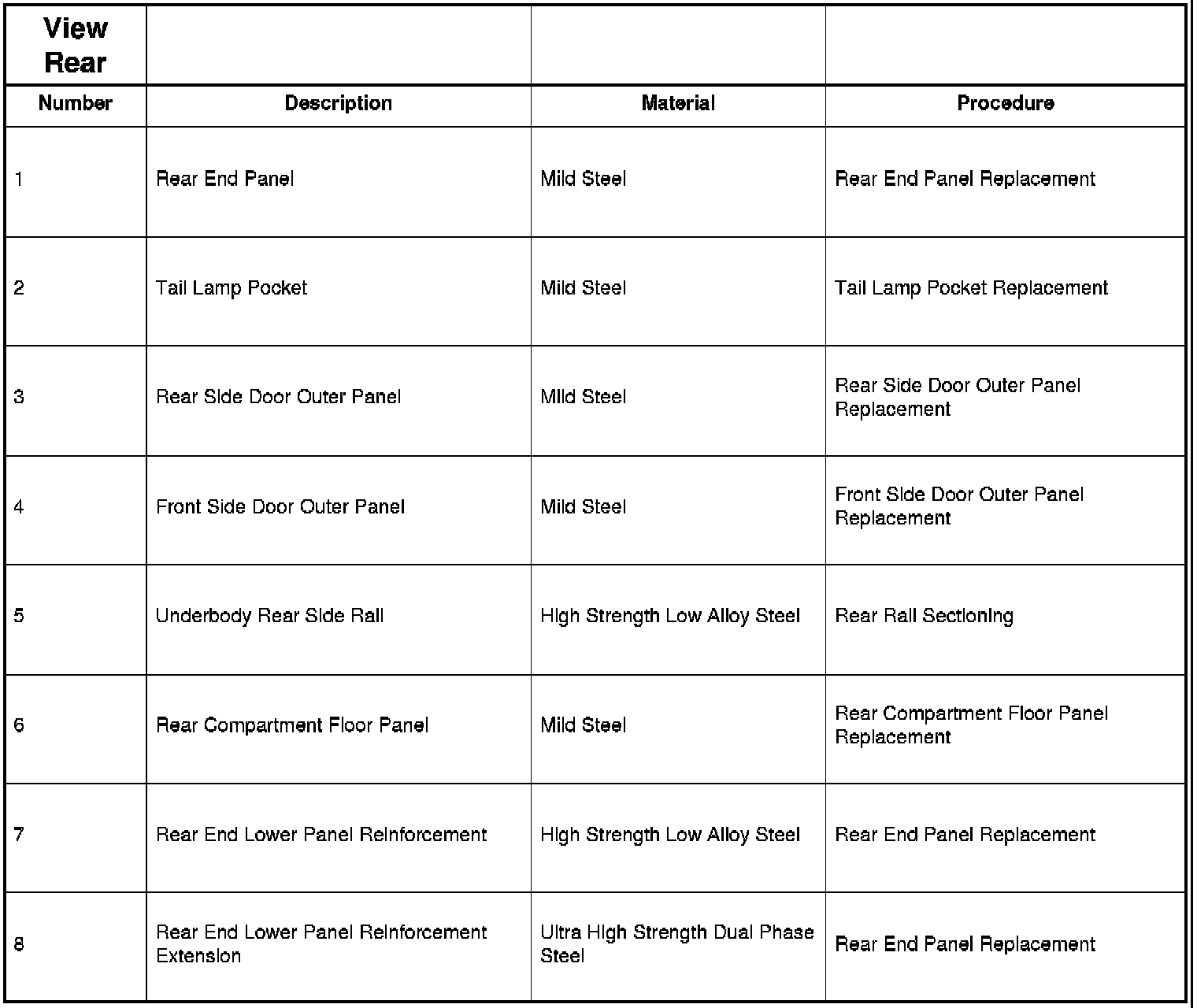

Rear View
