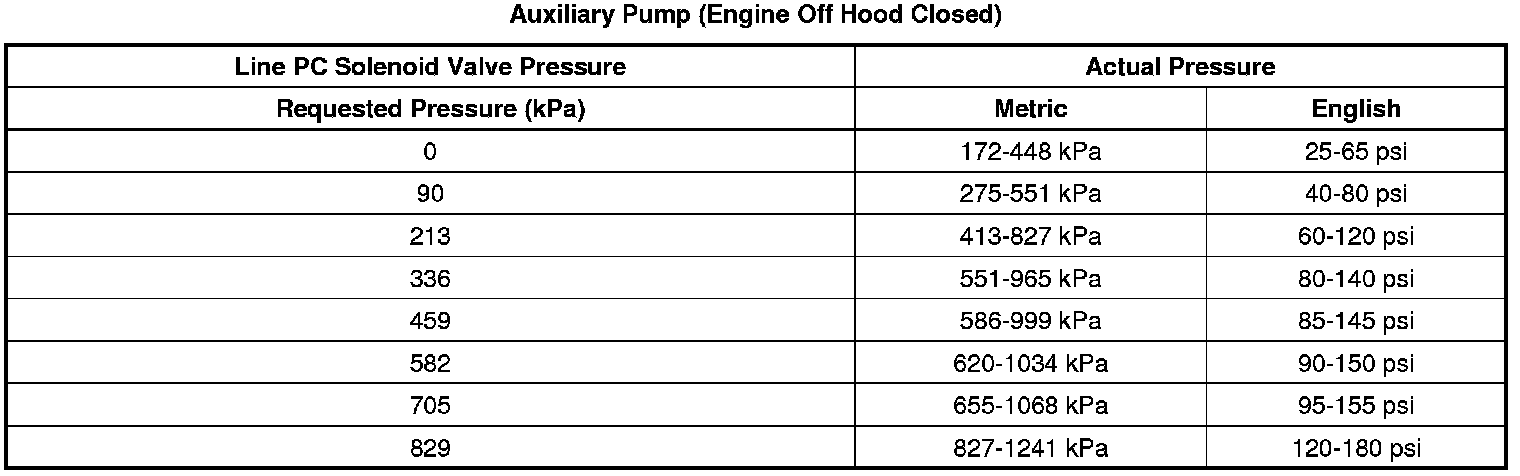

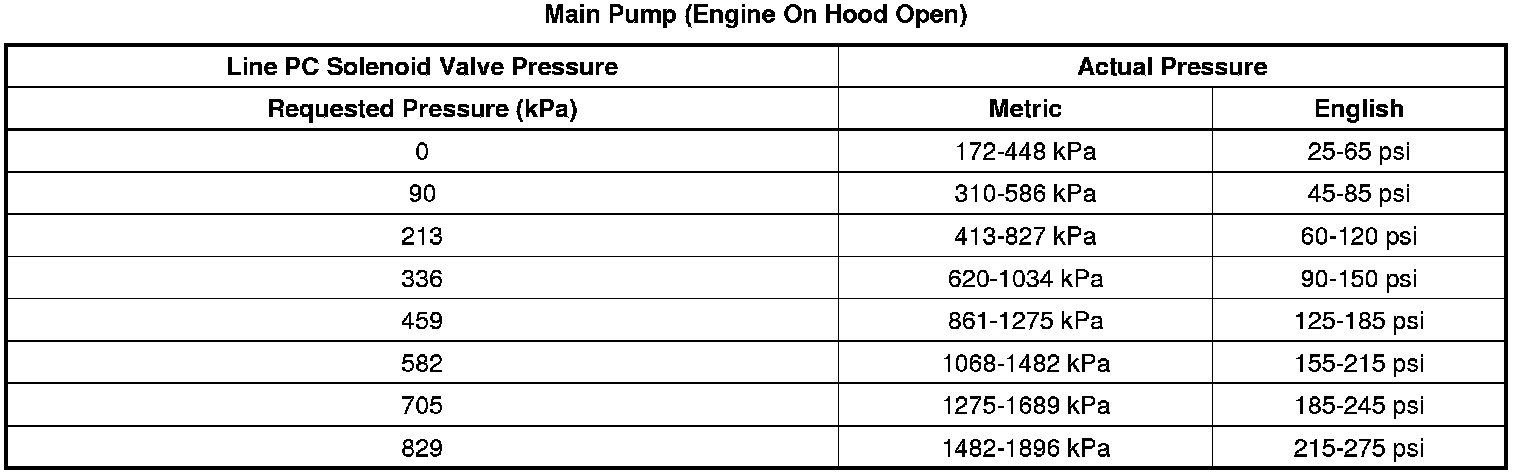

Solenoid Valve Pressure Specifications




Solenoid Valve Pressure Specifications

Note: Pressure readings must be taken with transmission at normal operating temperatures.
