Home >> Chevrolet >> 2012 >> Volt L4-1.4L Elect >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 61. Output Carrier Shell, Carrier, and Sun Gear Installation

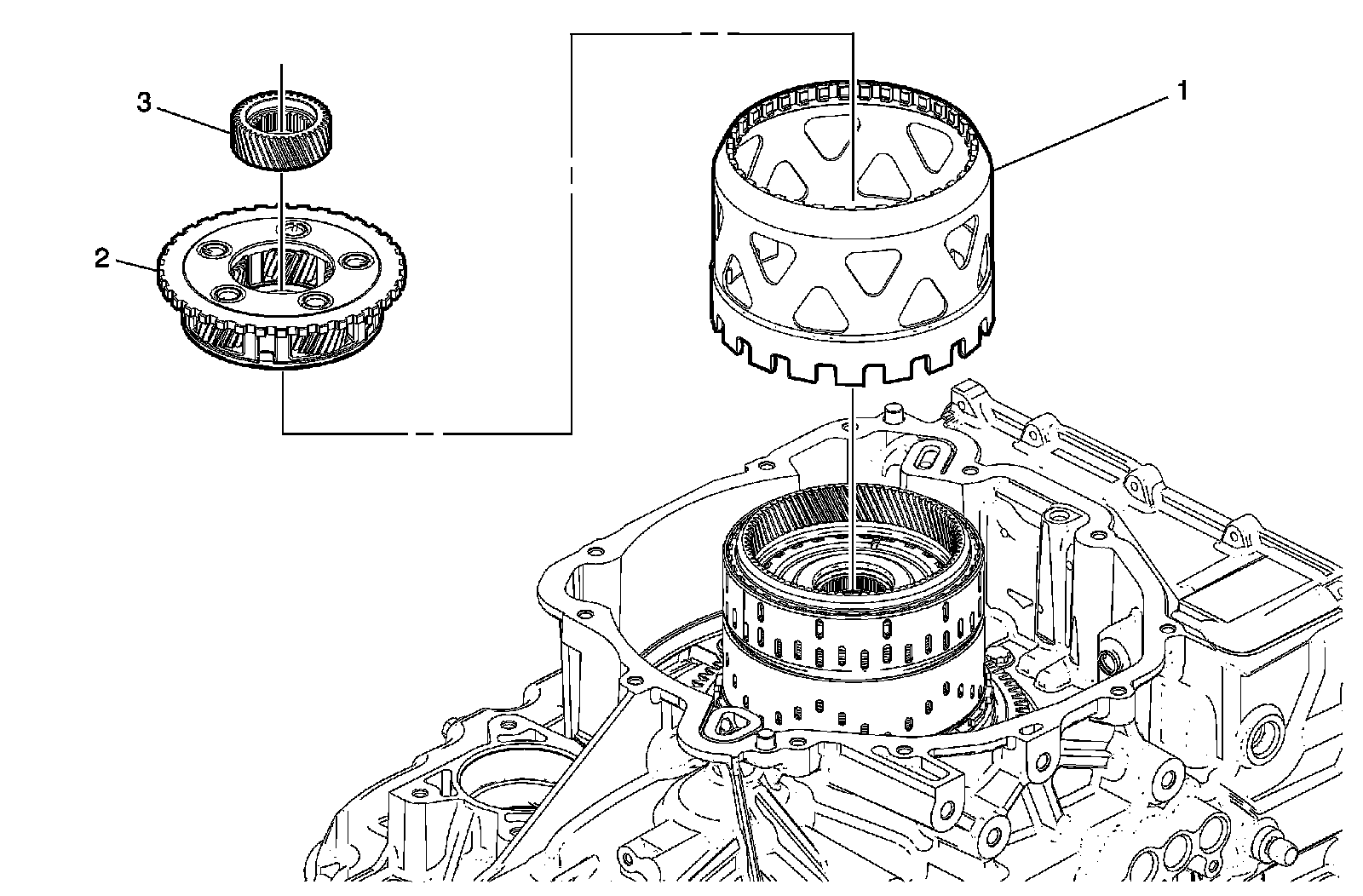

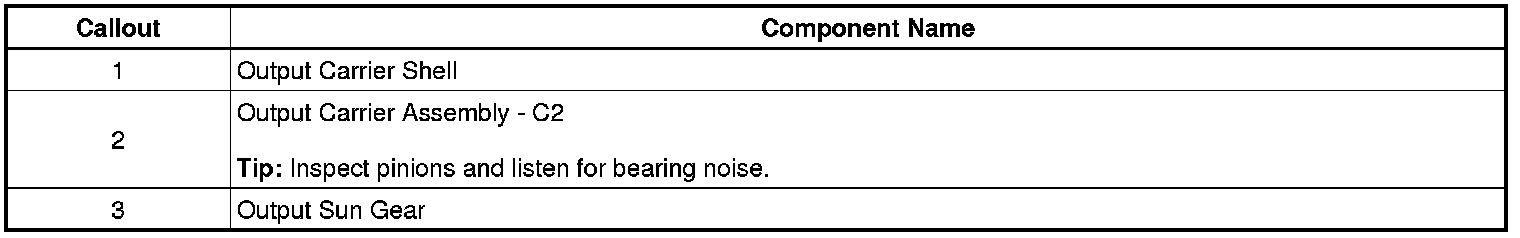

61. Output Carrier Shell, Carrier, and Sun Gear Installation




Output Carrier Shell, Carrier, and Sun Gear Installation
