28. Variable High and 2-3-4, Variable Low and 1-2 Reverse, and 1-3 Reverse Clutch Accumulator Piston Installation




Variable High and 2-3-4, Variable Low and 1-2 Reverse, and 1-3 Reverse Clutch Accumulator Piston Installation

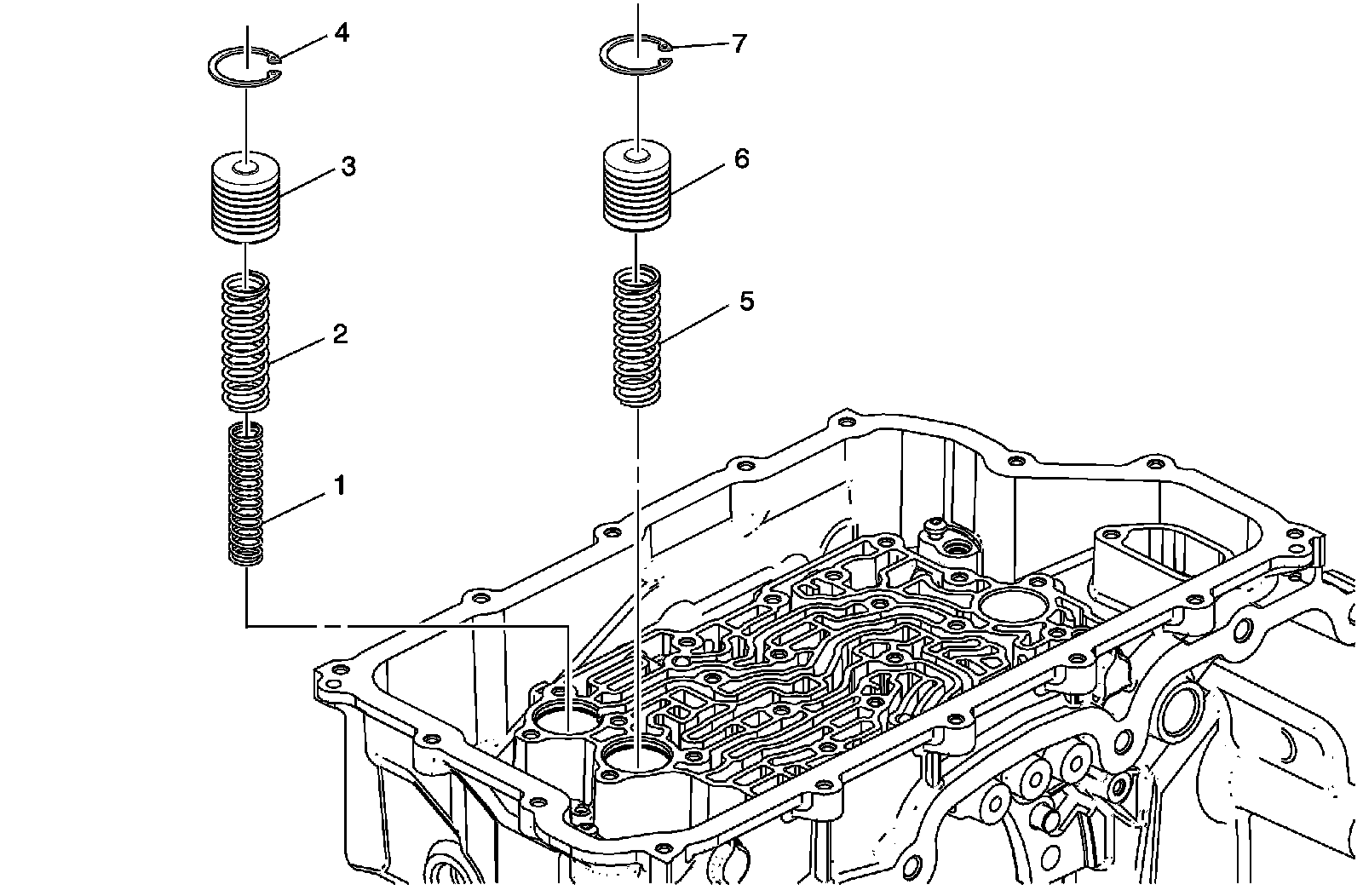

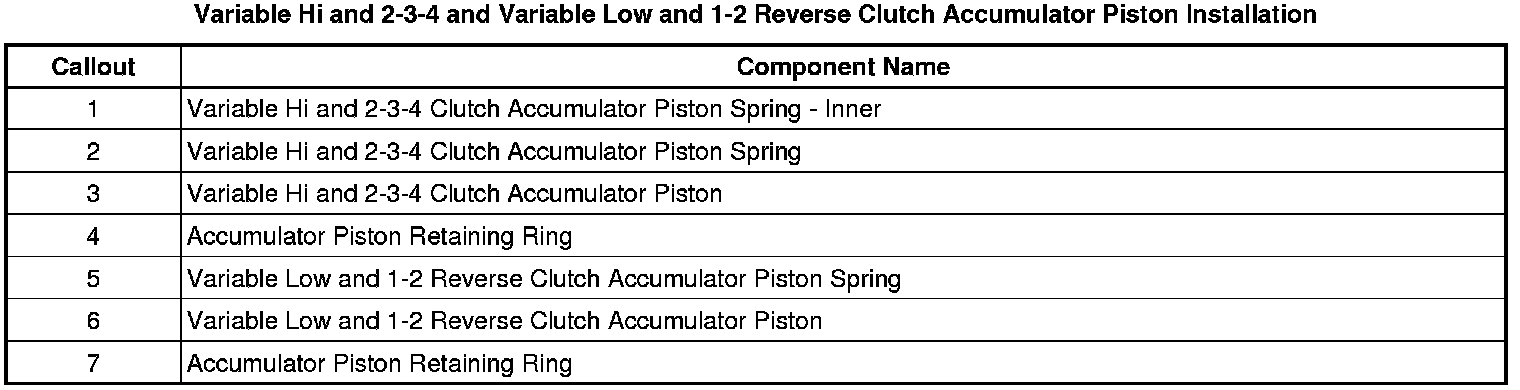

Variable Hi and 2-3-4 and Variable Low and 1-2 Reverse Clutch Accumulator Piston Installation

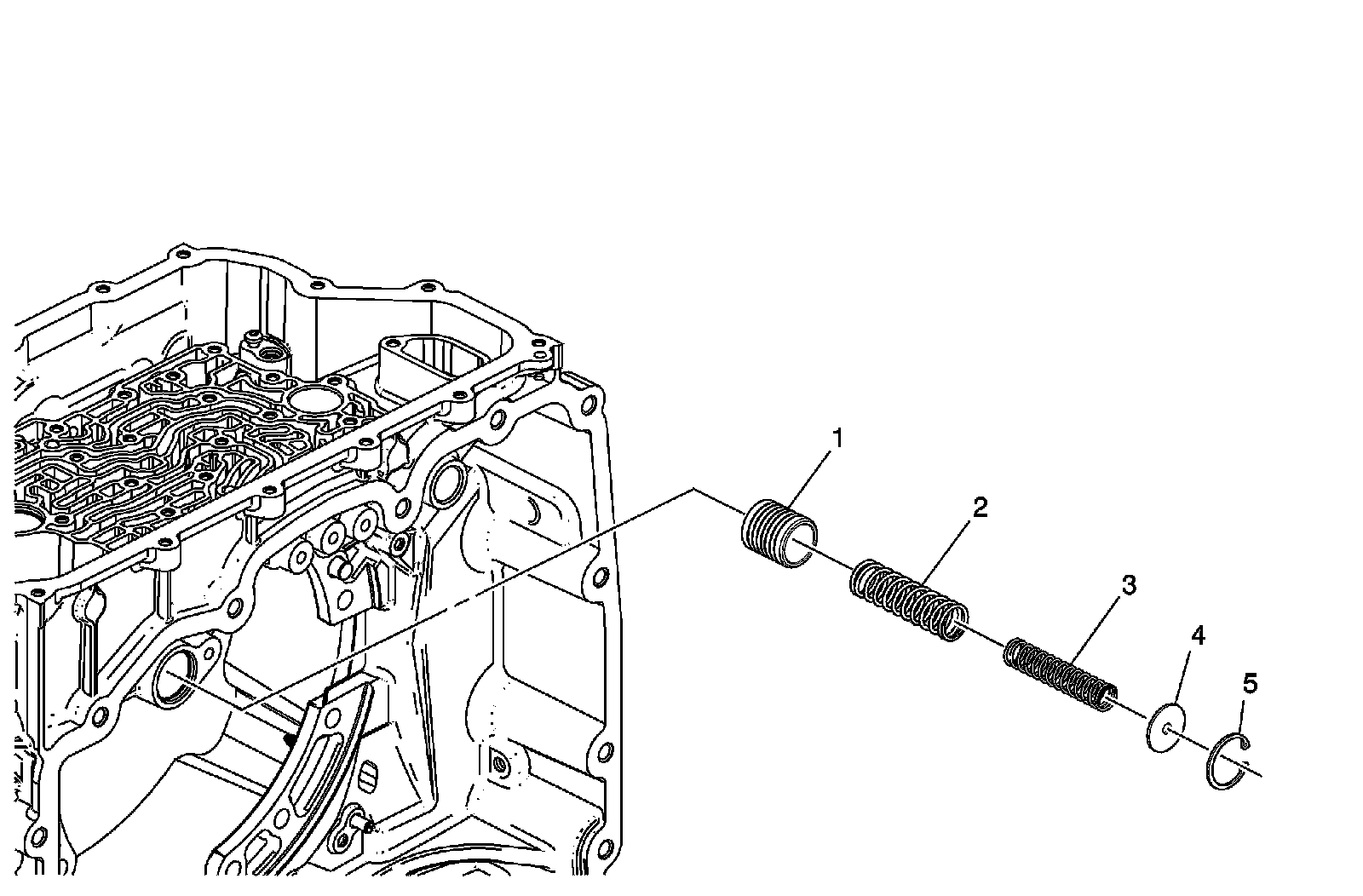

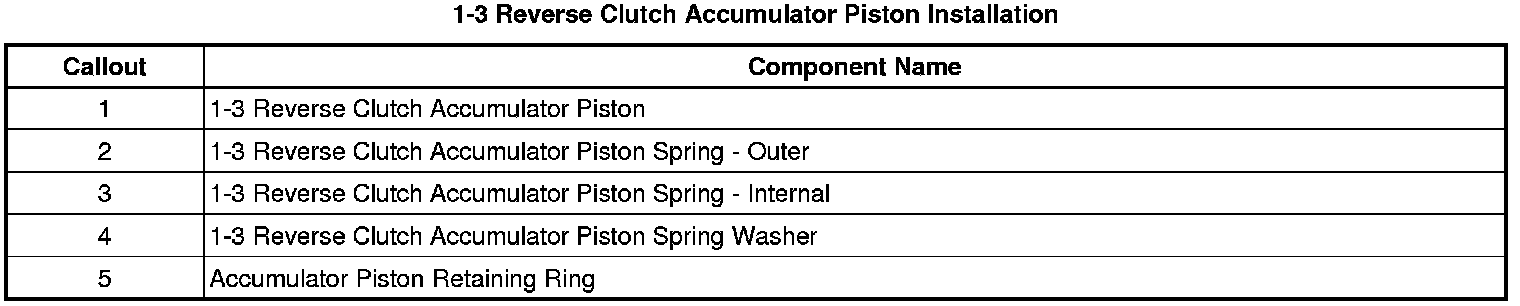

1-3 Reverse Clutch Accumulator Piston Installation
