Fuse Block - Instrument Panel Right

Harness Routing Views

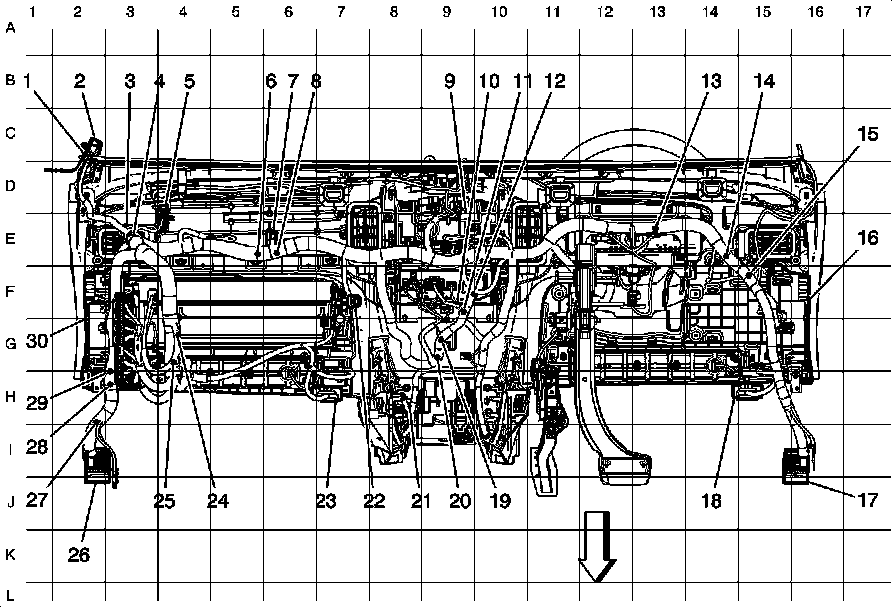

Instrument Panel Harness Routing




1 - X311
2 - X310
3 - J223
4 - J222
5 - X250
6 - J220
7 - X260
8 - J221
9 - J205
10 - J206
11 - J210
12 - J209
13 - J203
14 - J201
15 - J202
16 - X51L Fuse Block - Instrument Panel Left
17 - X225
18 - X84 Data Link Connector
19 - J208
20 - J207
21 - J204
22 - X252
23 - X84B Auxiliary Data Connector
24 - J227
25 - J228
26 - X275
27 - J224
28 - J225
29 - J226
30 - X51R Fuse Block - Instrument Panel Right
