X510

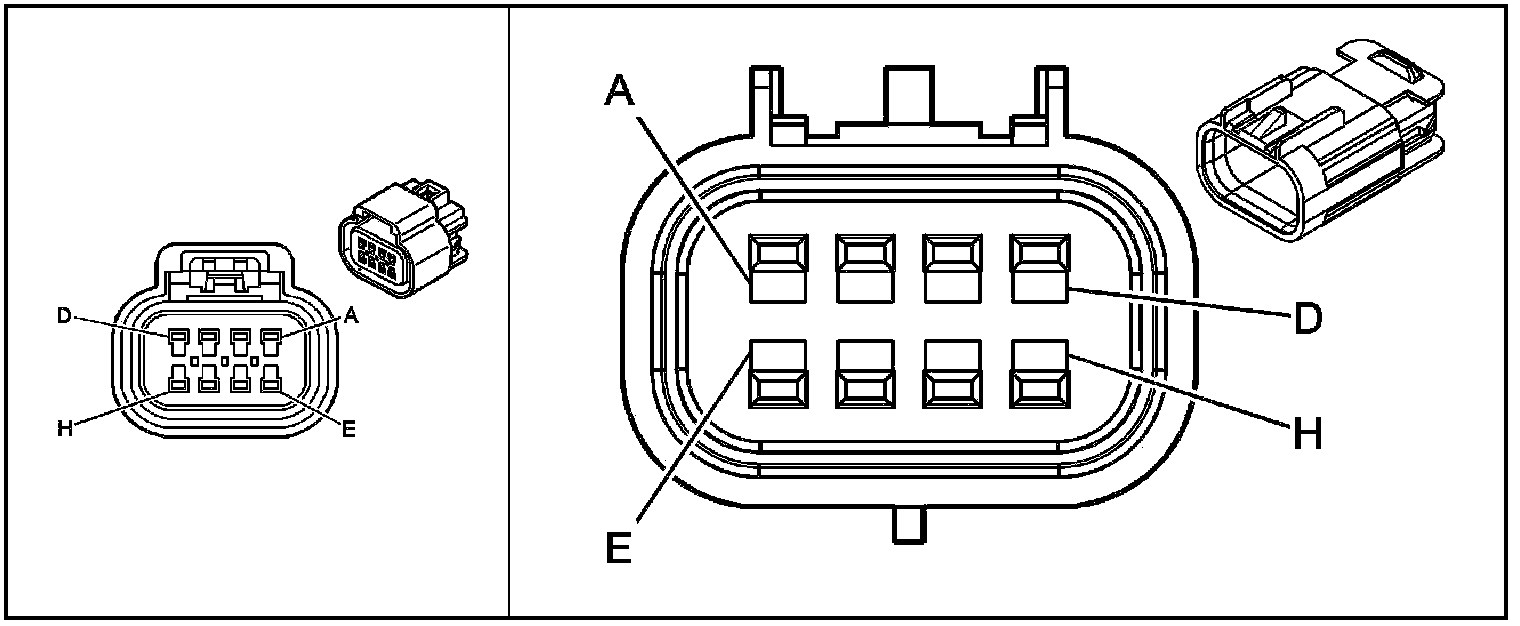

Inline Harness Connector End Views

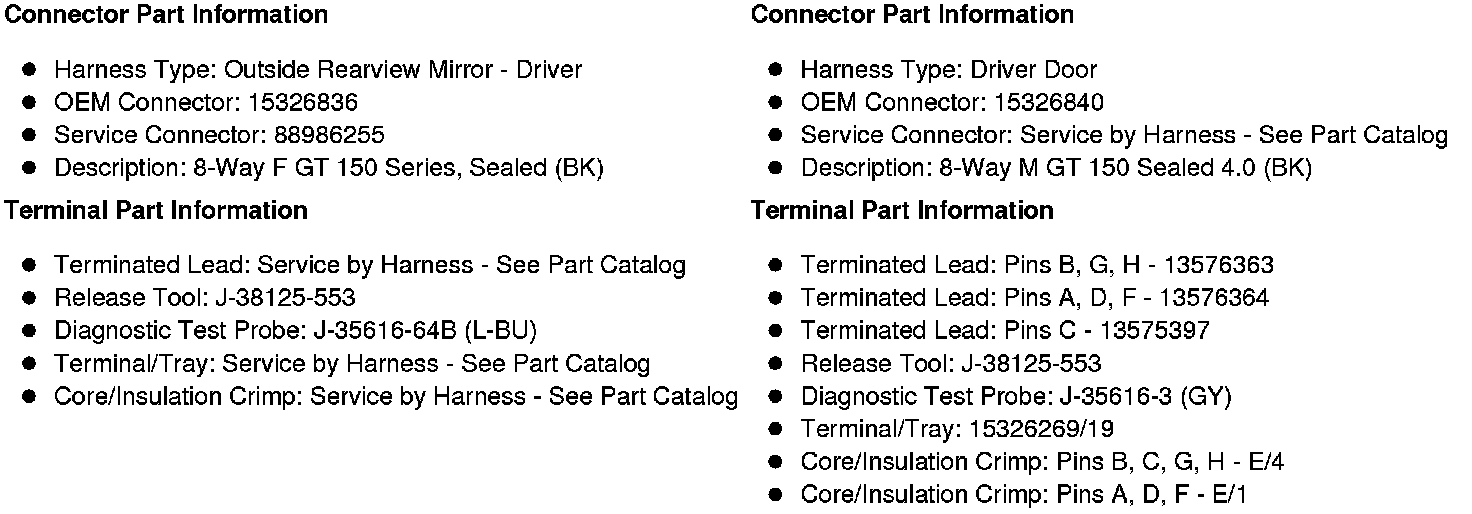

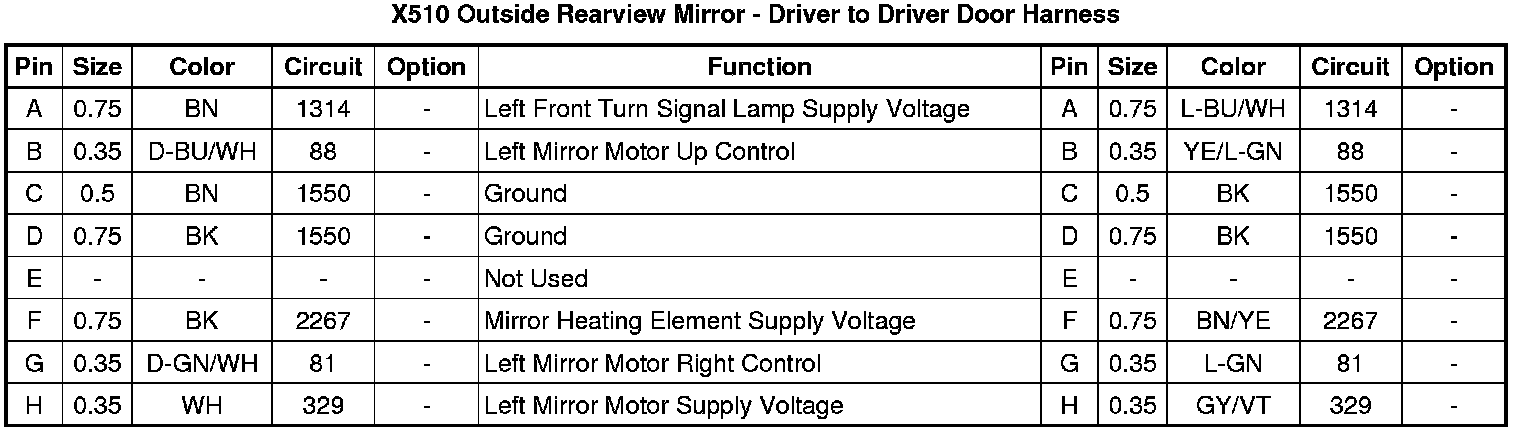

X510 Outside Rearview Mirror - Driver to Driver Door Harness
