Home >> Chevrolet >> 2012 >> Volt L4-1.4L Elect >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Number >> X300 - X399 >> X346

X346

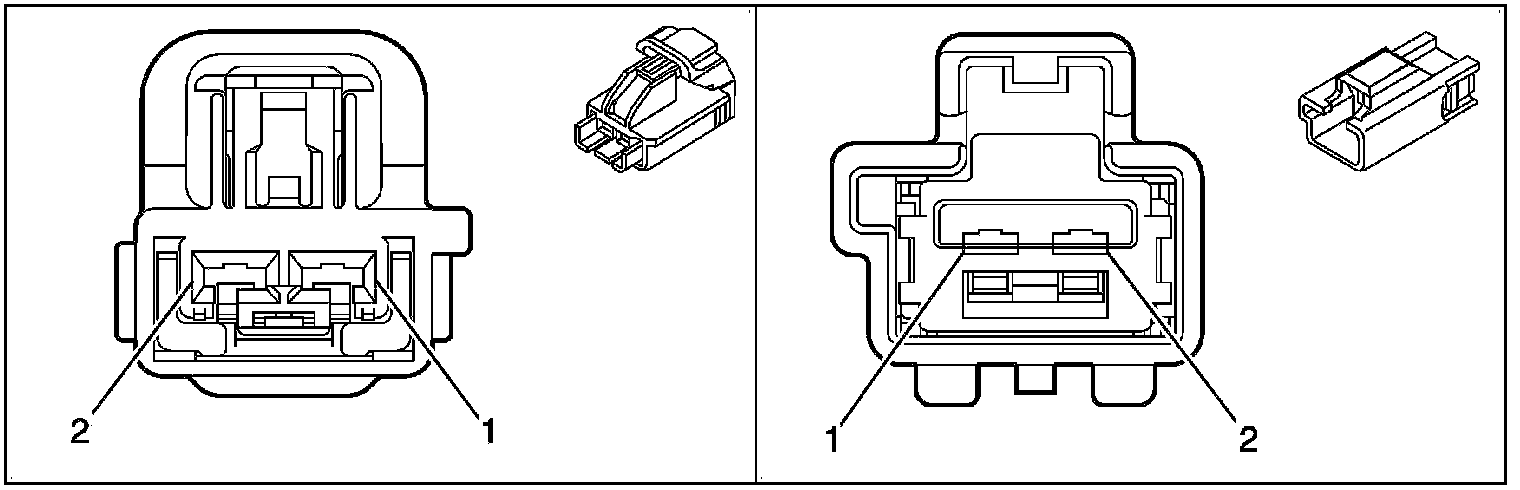

Inline Harness Connector End Views

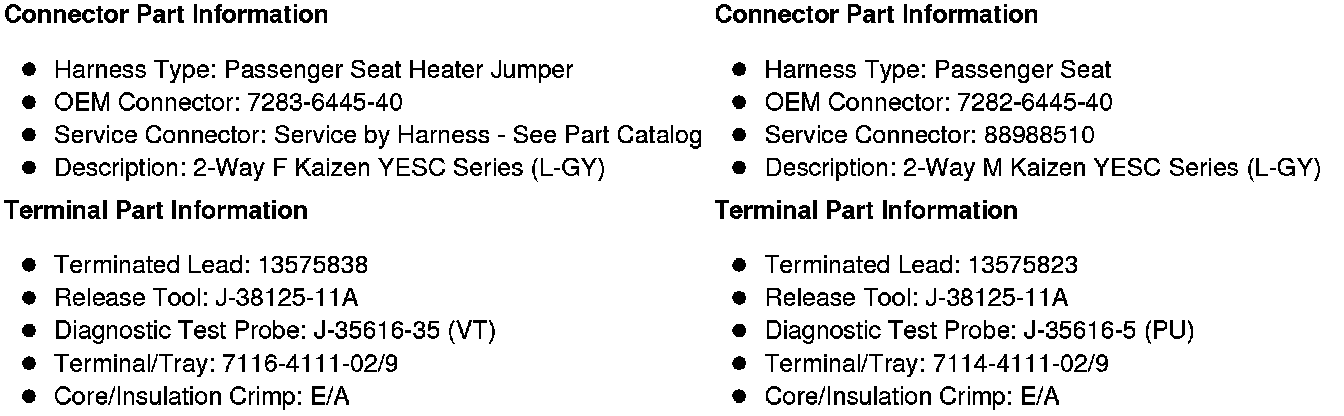

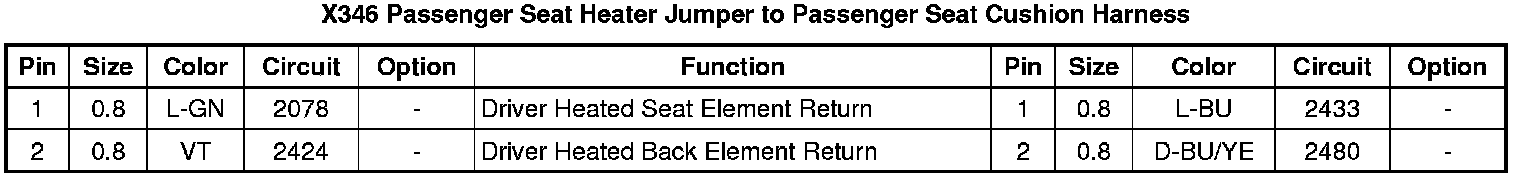

X346 Passenger Seat Heater Jumper to Passenger Seat Cushion Harness
