Windshield Washer Fluid Level Sensor

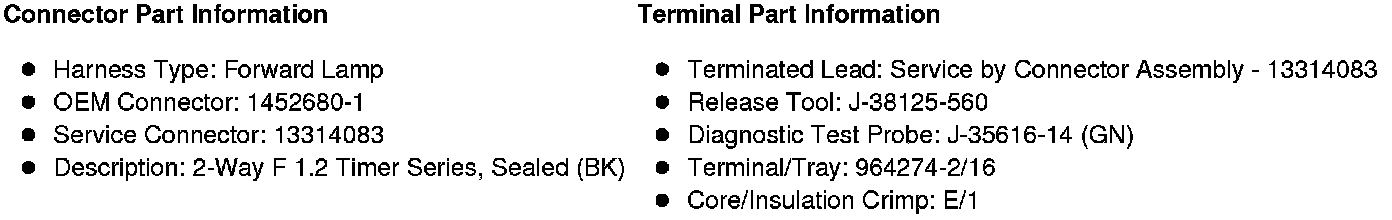

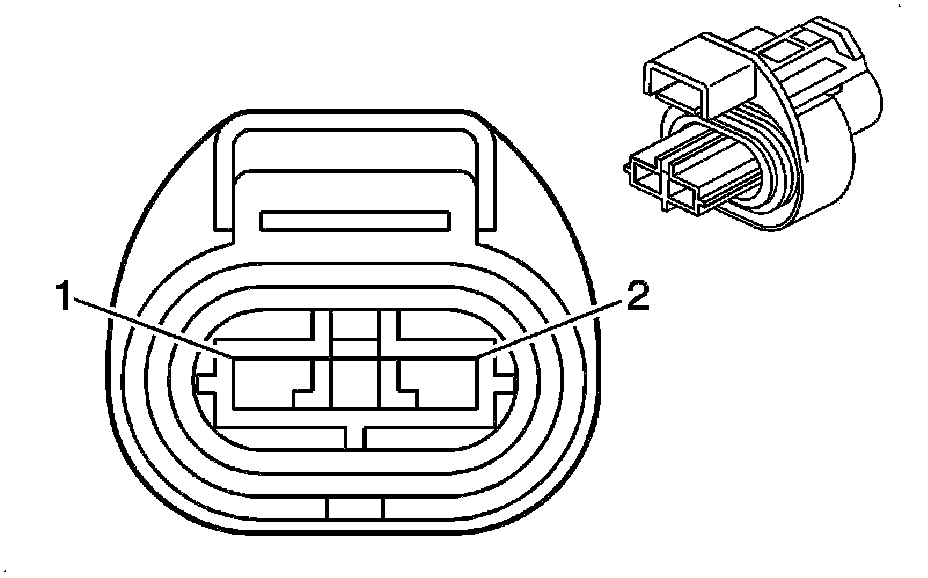

Component Connector End Views

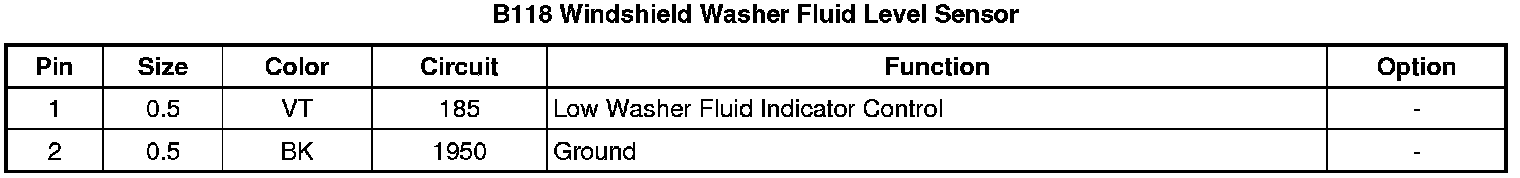

B118 Windshield Washer Fluid Level Sensor
