Home >> Chevrolet >> 2012 >> Volt L4-1.4L Elect >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Name >> Seat Air Bag - Left Front

Seat Air Bag - Left Front

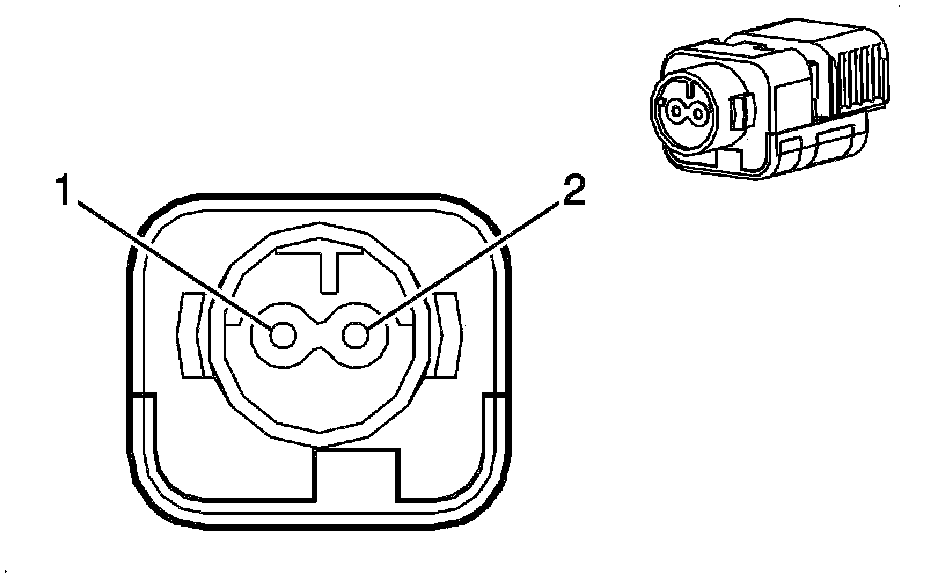

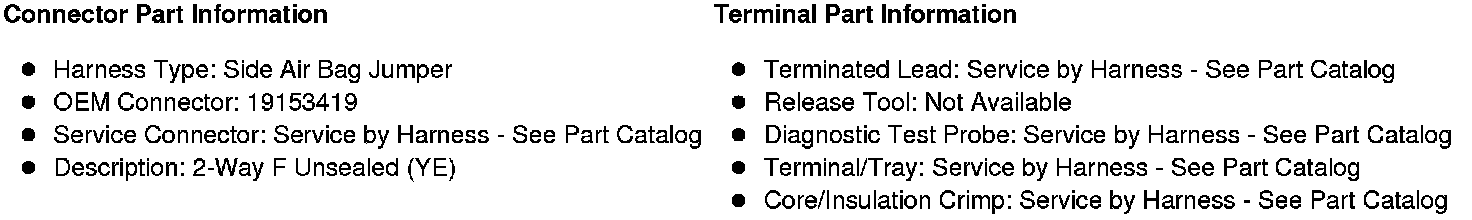

Component Connector End Views

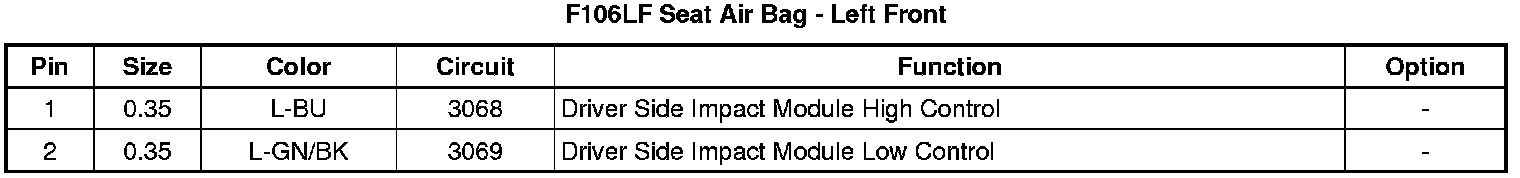

F106LF Seat Air Bag - Left Front
