Passenger Airbag Disable Indicator

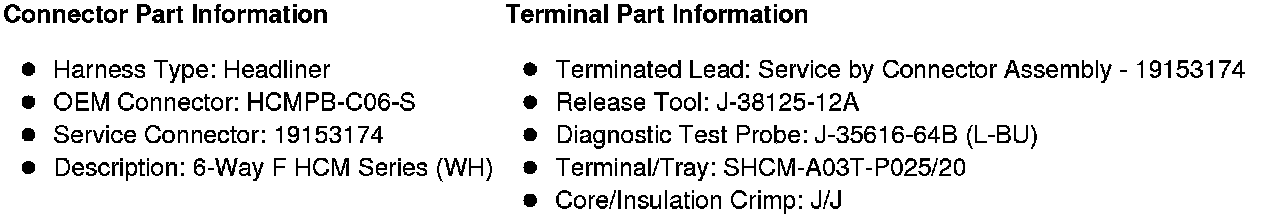

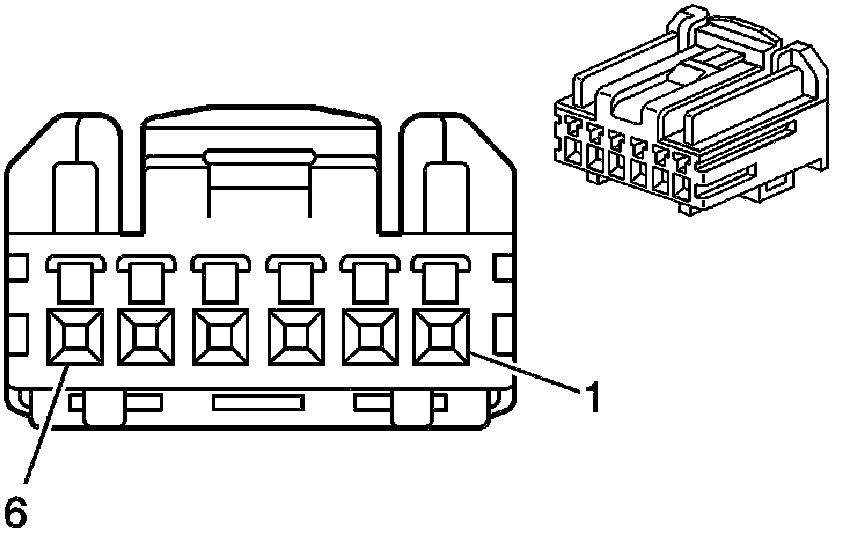

Component Connector End Views

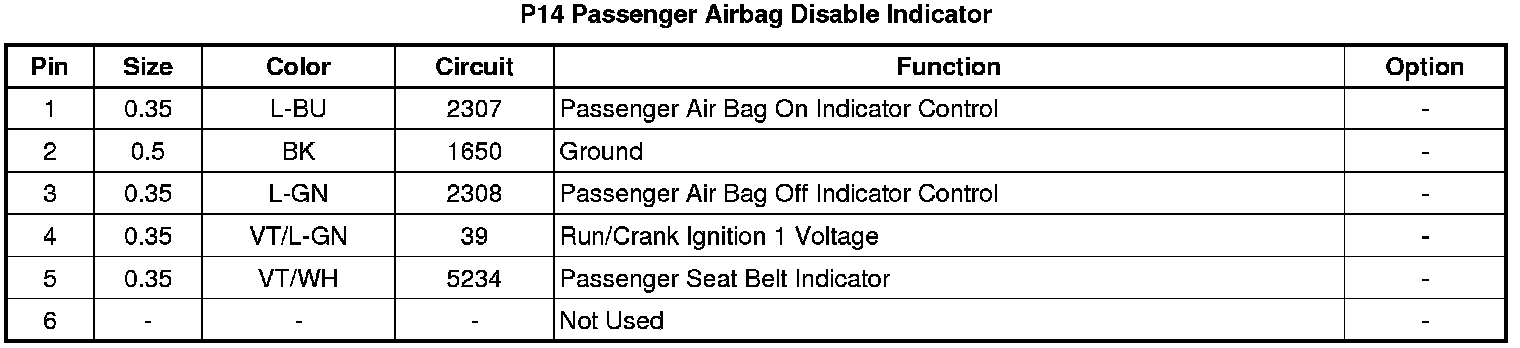

P14 Passenger Airbag Disable Indicator
