Hybrid/EV Electronics Coolant Pump

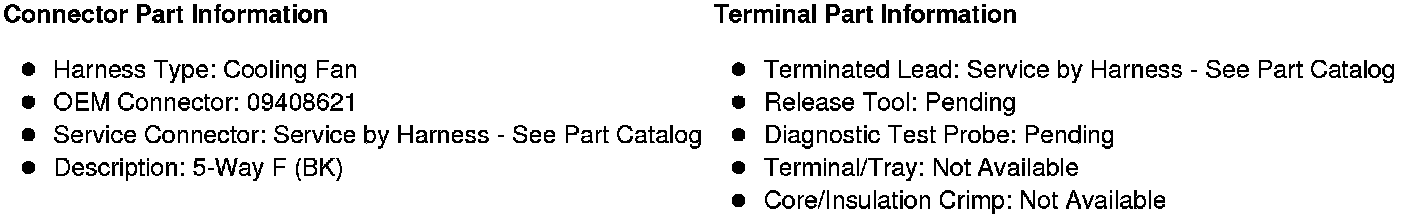

Component Connector End Views

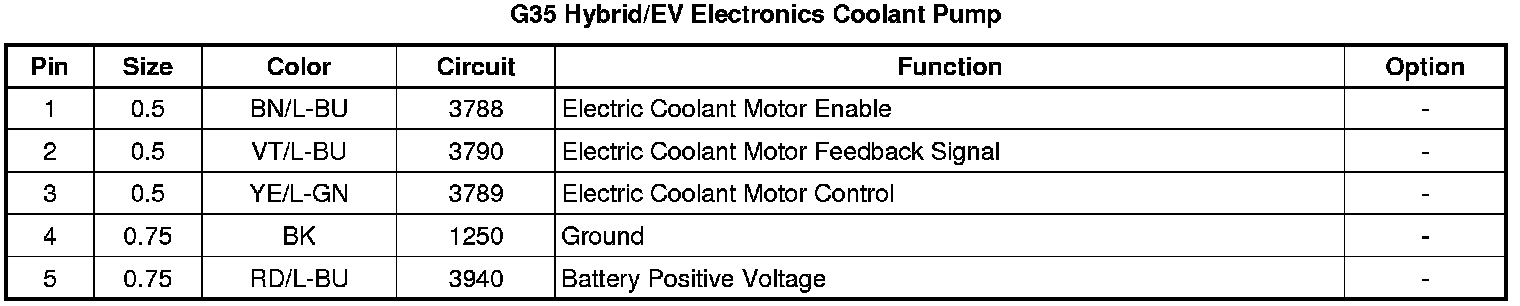

G35 Hybrid/EV Electronics Coolant Pump
