Hybrid/EV Battery Charger Receptacle

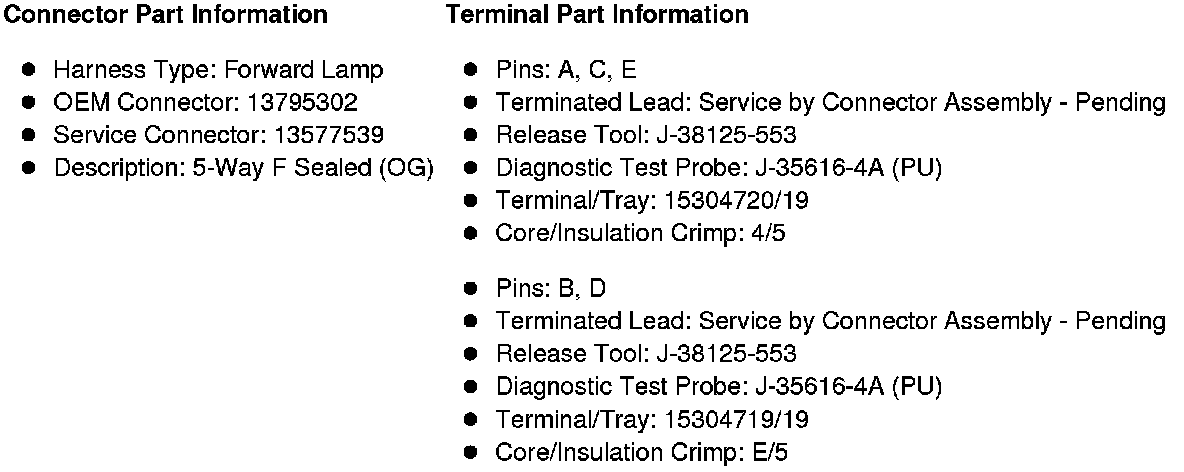

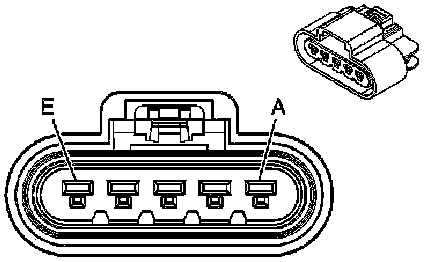

Component Connector End Views

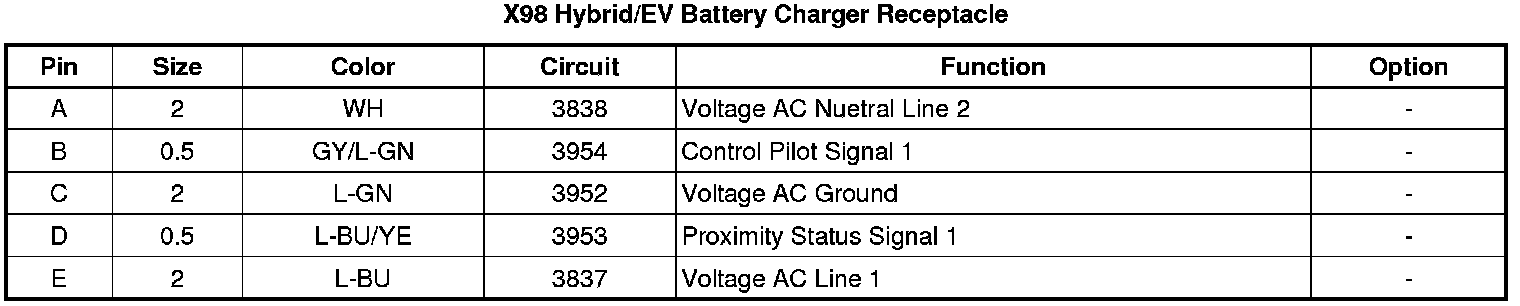

X98 Hybrid/EV Battery Charger Receptacle
