Hybrid Electronics Coolant Temperature Sensor

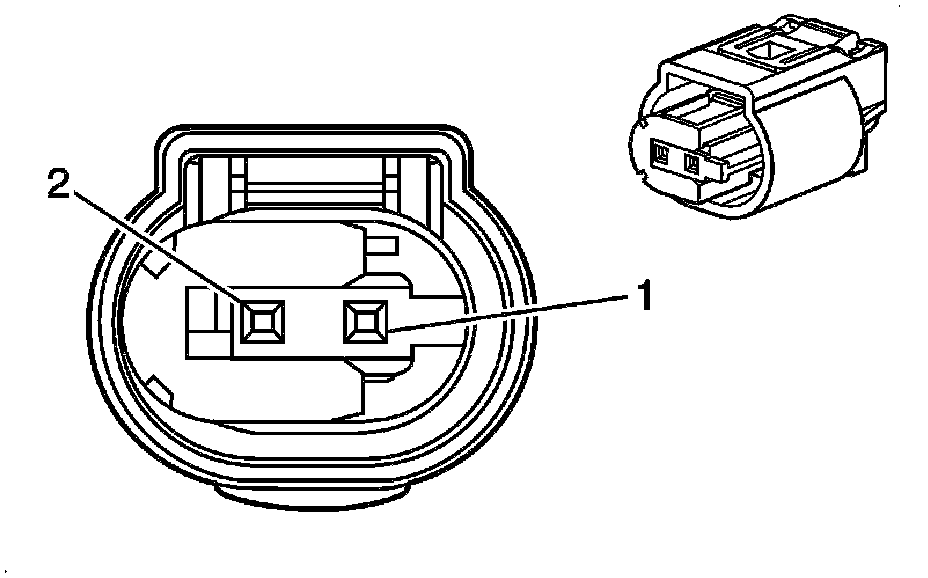

Component Connector End Views

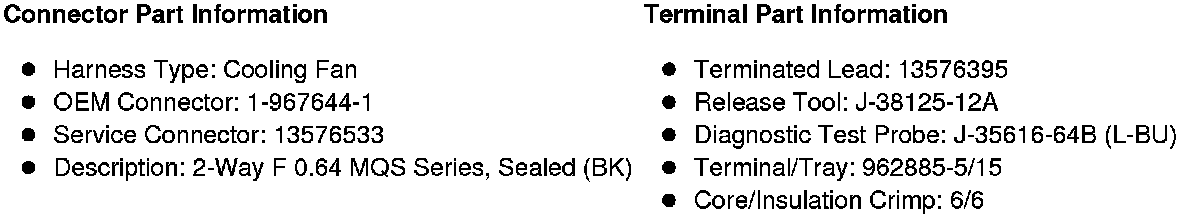

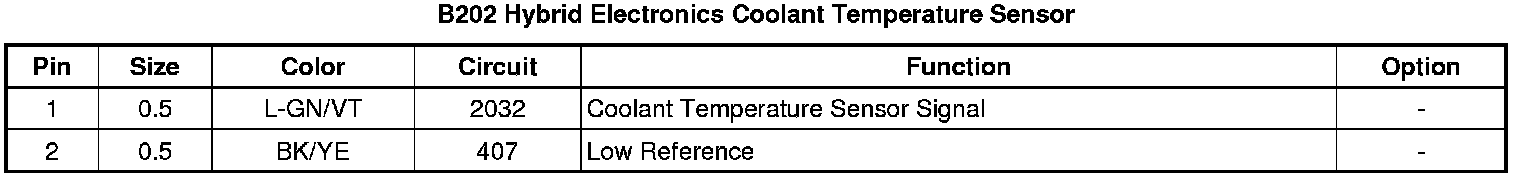

B202 Hybrid Electronics Coolant Temperature Sensor
