Home >> Chevrolet >> 2012 >> Volt L4-1.4L Elect >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Name >> Hybrid Battery Section 3 X2

Hybrid Battery Section 3 X2

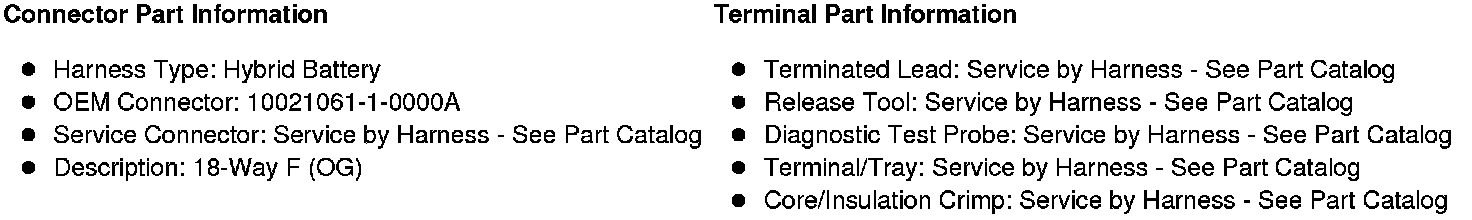

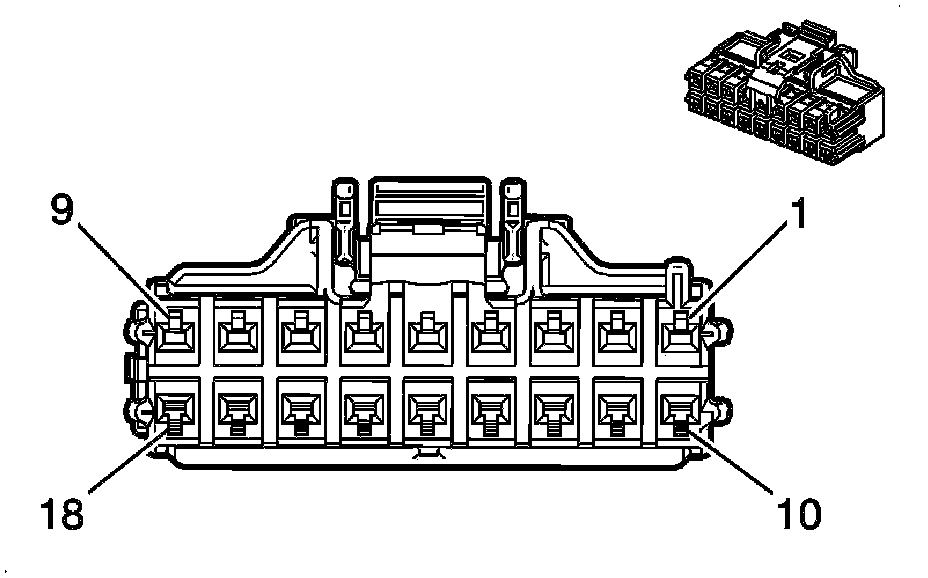

Component Connector End Views

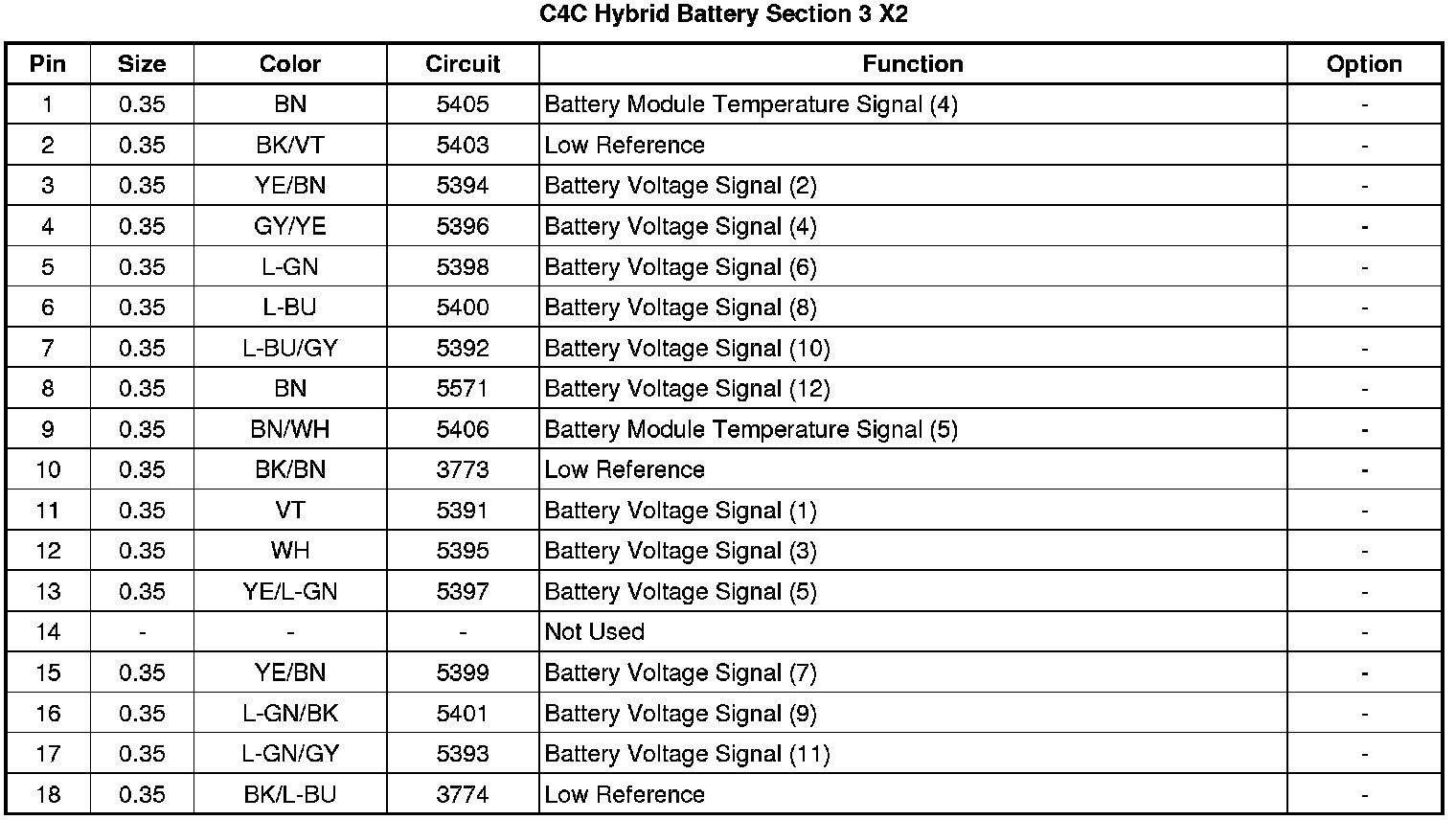

C4C Hybrid Battery Section 3 X2
