Hybrid Battery Pack Coolant Control Valve

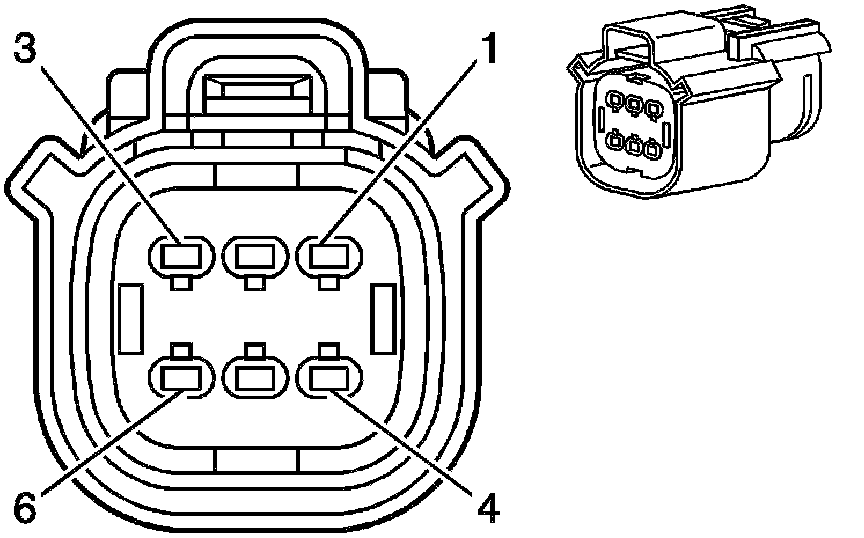

Component Connector End Views

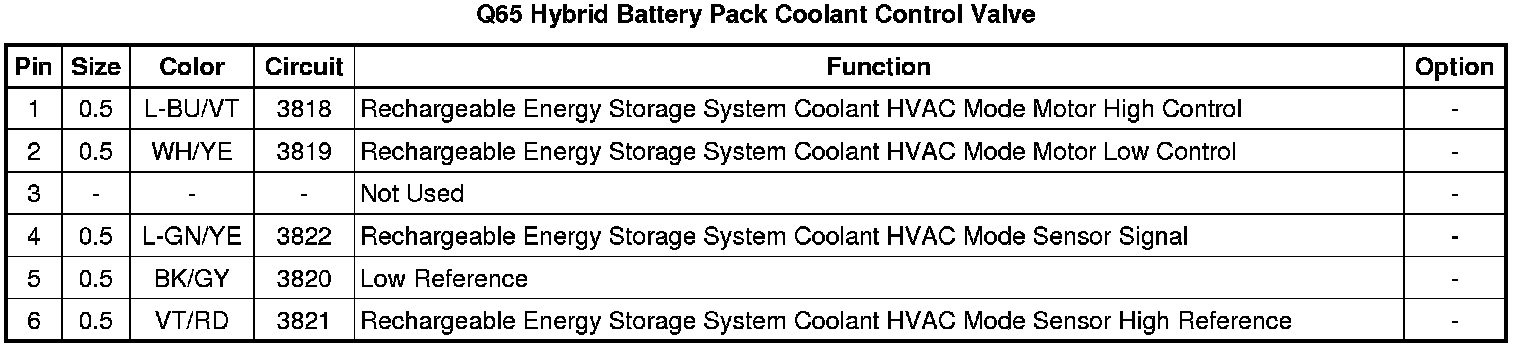

Q65 Hybrid Battery Pack Coolant Control Valve
