Home >> Chevrolet >> 2012 >> Volt L4-1.4L Elect >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Name >> Evaporative Emission System Leak Detection Pump Assembly

Evaporative Emission System Leak Detection Pump Assembly




Component Connector End Views

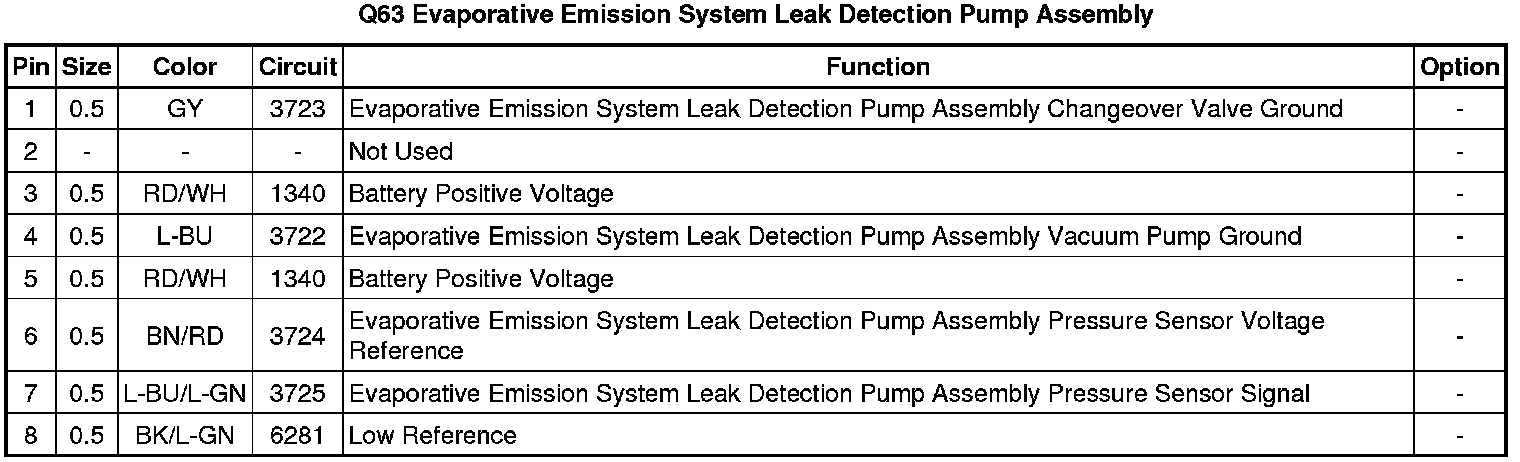

Q63 Evaporative Emission System Leak Detection Pump Assembly
