Home >> Chevrolet >> 2012 >> Volt L4-1.4L Elect >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Name >> Drive Motor 2 X2

Drive Motor 2 X2

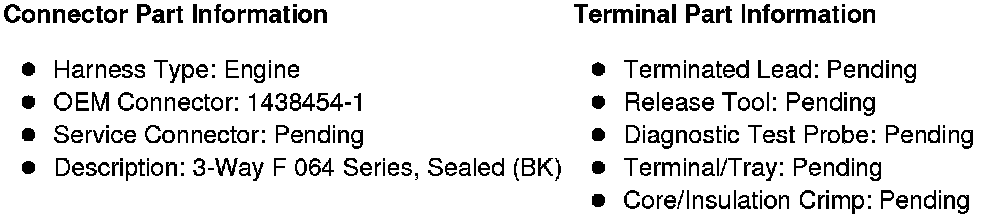

Component Connector End Views

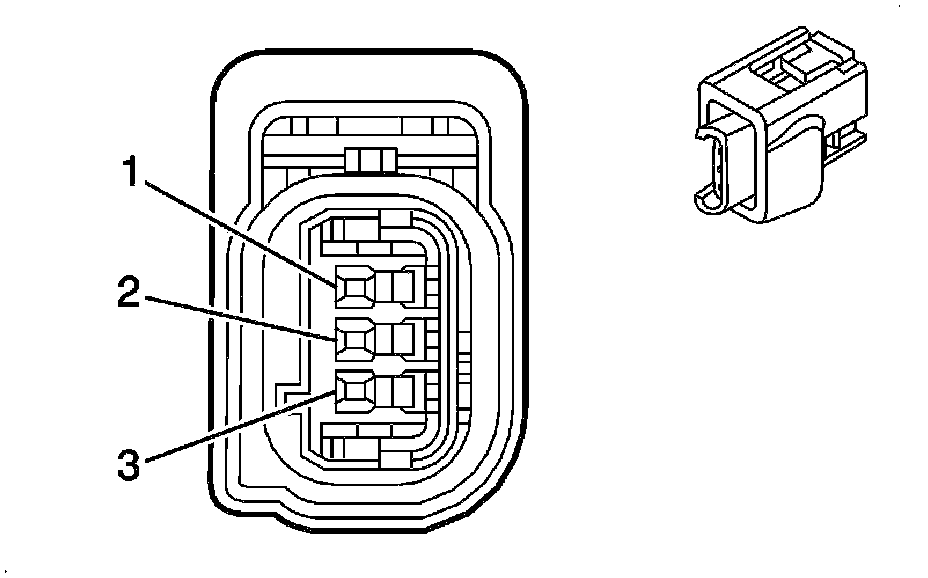

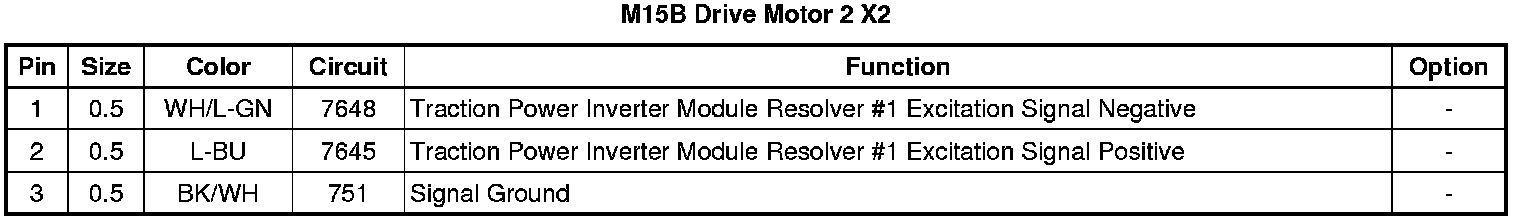

M15B Drive Motor 2 X2
